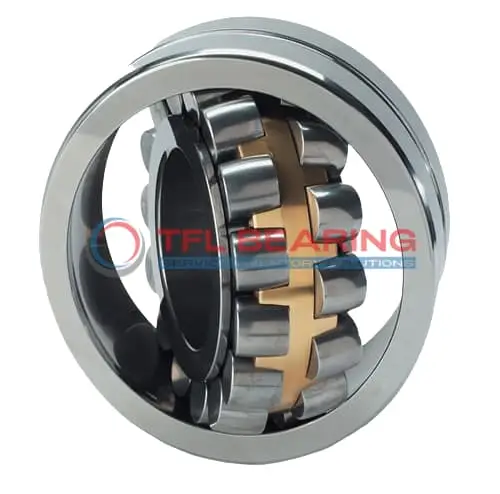

23292 CA/CO8 W33VE554E Double Row Spherical Roller Bearing

23292 CA/CO8 W33VE554E Double Row Spherical Roller Bearing

The 23292 CA/CO8 W33VE554E is a double-row spherical roller bearing with a 460mm bore and 830mm outer diameter, built from tough chrome steel. It handles combined loads up to 2013839 lbf and runs smoothly at speeds up to 560 RPM.

Its brass cage and open design ensure durability, while the lubrication groove (22.3mm wide) makes maintenance straightforward. The bearing operates in temperatures from -30°C to 200°C, suitable for demanding environments.

This model is interchangeable with SKF bearings, offering a reliable replacement option. Ideal for heavy machinery like crushers or mining equipment where high radial loads are common.

Weighing 695kg, it’s a robust choice for industrial applications. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 23292 CA/CO8 W33VE554E
  • Brand TFL
  • Interchangeable SKF
  • Size 460 x 830 x 296 mm
  • Bore Dia 460 mm
  • Bore Dia Tolerance -0.045mm to 0
  • Outer Dia 830 mm
  • Outer Dia Tolerance -0.1mm to 0
  • Width 296 mm
  • Width Tolerance -0.45mm to 0
  • Shoulder Dia Of Inner Ring 574 mm
  • Shoulder/Recess Dia Of Outer Ring 706 mm
  • Width Of Lubrication Groove 22.3 mm
  • Diameter Of Lubrication Hole 12 mm
  • Chamfer Dimension min.7.5 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 2013839 lbf
  • Static Radial Load 3079883 lbf
  • Max Speed 560 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance CN
  • RoHs Compliant
  • REACH Compliant
  • Weight 695 kg
  • Price （US$） US$12,559.14

Features

How Does 23292 CA/CO8 W33VE554E Bearing Handle Combined Loads?

23292 CA/CO8 W33VE554E Bearing is built with chrome steel rings and rollers, offering strong resistance to both radial and thrust loads.
Its dynamic radial load capacity reaches 2013839 lbf, ensuring reliable performance in heavy-duty applications.
The brass cage maintains roller alignment, reducing friction and extending operational life.
With a maximum speed of 560 rpm, it delivers durability and efficiency in demanding conditions.

What Makes 23292 CA/CO8 W33VE554E Bearing Suitable for High-Temperature Applications?

23292 CA/CO8 W33VE554E Bearing operates effectively in temperatures ranging from -30° to 200 °C.
Its chrome steel construction ensures stability and performance even under extreme heat.
The lubrication grooves and holes facilitate consistent oil flow, preventing overheating.
This design makes it ideal for industrial environments with fluctuating temperatures.

Engineered for Precision: 23292 CA/CO8 W33VE554E Bearing

23292 CA/CO8 W33VE554E Bearing features a double-row spherical roller design for precise load distribution.
The cylindrical bore ensures a secure fit, reducing misalignment risks.
With a radial clearance of CN, it balances flexibility and accuracy in operation.
Its robust construction makes it a dependable choice for precision machinery.

Application

Industrial Uses of 23292 CA/CO8 W33VE554E Bearing
23292 CA/CO8 W33VE554E Bearing is commonly used in heavy machinery like crushers and mining equipment, where its double-row design handles high radial and axial loads. The brass cage ensures smooth operation even under demanding conditions.

In wind turbine applications, 23292 CA/CO8 W33VE554E Bearing provides reliable performance due to its spherical roller design, which accommodates misalignment. Its large bore size makes it suitable for connecting turbine shafts.

For paper mill machinery, 23292 CA/CO8 W33VE554E Bearing’s chrome steel construction offers durability in wet and high-temperature environments. The lubrication groove design simplifies maintenance, reducing downtime.

Where Is 23292 CA/CO8 W33VE554E Bearing Used?
23292 CA/CO8 W33VE554E Bearing finds its place in construction equipment like cranes, where its high static load capacity ensures stability. The metric sizing allows for easy integration with European machinery standards.

In marine propulsion systems, 23292 CA/CO8 W33VE554E Bearing handles combined loads from propeller shafts efficiently. Its temperature range suits both cold and warm operating conditions.

Built for Heavy-Duty Use: 23292 CA/CO8 W33VE554E Bearing
23292 CA/CO8 W33VE554E Bearing excels in steel rolling mills, where its dynamic load capacity supports continuous operation. The open seal design allows for easy lubrication access.

For railway applications, 23292 CA/CO8 W33VE554E Bearing’s spherical rollers compensate for track misalignment. Its brass cage reduces friction, extending service life in high-vibration environments.

Automotive vs Aerospace: Applications of 23292 CA/CO8 W33VE554E Bearing
In large commercial vehicles, 23292 CA/CO8 W33VE554E Bearing supports axle systems with its robust construction. The high static radial load capacity ensures safety under heavy loads.

For industrial fans, 23292 CA/CO8 W33VE554E Bearing’s spherical design accommodates shaft deflection. Its lubrication holes maintain consistent performance in continuous operation scenarios.
