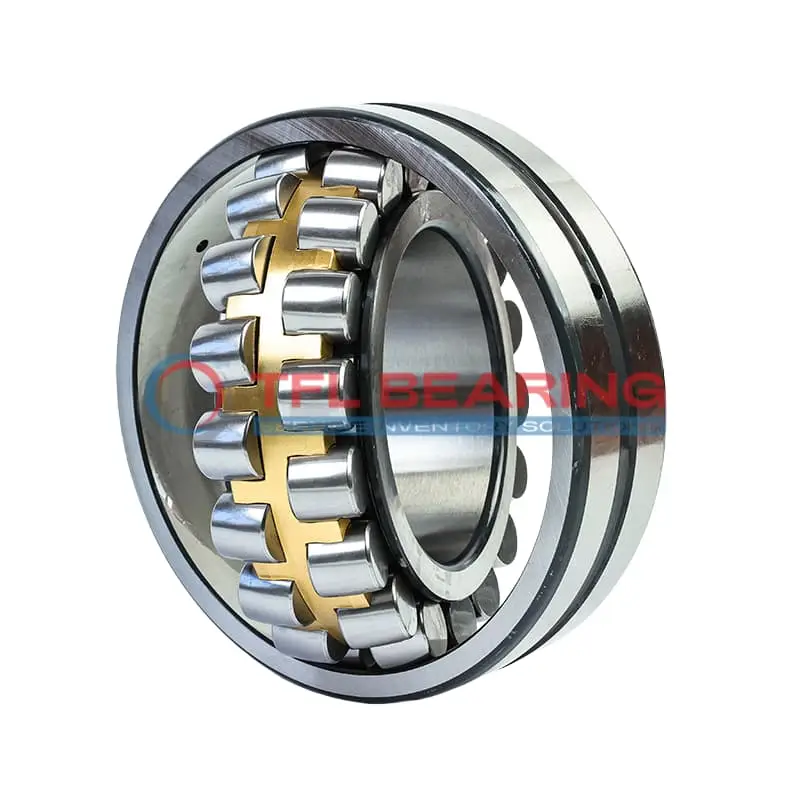

23272 CAK/W33 Double Row Spherical Roller Bearing

23272 CAK/W33 Double Row Spherical Roller Bearing

The 23272 CAK/W33 is a double-row spherical roller bearing with a 360mm bore and 650mm outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 1273093 lbf and operates smoothly at speeds up to 750 RPM.

Its brass cage and open design ensure durability and easy lubrication, with a temperature range from -30°C to 200°C. The tapered bore (1:12) allows for secure fitting, while the lubrication groove and holes simplify maintenance.

This bearing is interchangeable with SKF models, making it a practical choice for replacements. Suitable for heavy-duty applications like industrial gearboxes or large machinery where robust performance is needed.

Weighing 325kg, it’s built for demanding environments. Compliant with RoHS and REACH standards for safe and reliable use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 23272 CAK/W33
  • Brand TFL
  • Interchangeable SKF
  • Size 360 x 650 x 232 mm
  • Bore Dia 360 mm
  • Bore Dia Tolerance +0.057mm to 0
  • Outer Dia 650 mm
  • Outer Dia Tolerance -0.075mm to 0
  • Width 232 mm
  • Width Tolerance -0.4mm to 0
  • Shoulder Dia Of Inner Ring 449 mm
  • Shoulder/Recess Dia Of Outer Ring 552 mm
  • Width Of Lubrication Groove 22.3 mm
  • Diameter Of Lubrication Hole 12 mm
  • Chamfer Dimension min.6 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Taper 1:12
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 1273093 lbf
  • Static Radial Load 1865914 lbf
  • Max Speed 750 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance CN
  • RoHs Compliant
  • REACH Compliant
  • Weight 325 kg
  • Price （US$） US$7,448.54

Features

How Does 23272 CAK/W33 Bearing Handle Combined Loads?

23272 CAK/W33 Bearing features a double-row spherical roller design, ideal for handling both radial and thrust loads.
Its chrome steel rings and rollers provide a dynamic radial load capacity of 1,273,093 lbf, ensuring robust performance.
The brass cage maintains roller alignment, reducing friction and extending operational life.
With a maximum speed of 750 rpm, it is suited for heavy-duty applications requiring reliability.

What Makes 23272 CAK/W33 Bearing Suitable for High-Temperature Applications?

23272 CAK/W33 Bearing operates efficiently in temperatures ranging from -30° to 200°C.
Its chrome steel construction resists thermal deformation, maintaining performance under extreme conditions.
The lubrication groove and hole design ensure consistent oil flow, preventing overheating.
This makes it a dependable choice for industrial machinery exposed to high heat.

Engineered for Precision: 23272 CAK/W33 Bearing

23272 CAK/W33 Bearing’s tapered bore design ensures precise alignment during installation.
The spherical roller configuration accommodates misalignment, reducing stress on adjacent components.
Its brass cage enhances durability while minimising operational noise.
With a static radial load capacity of 1,865,914 lbf, it excels in demanding environments.

Structural Advantages of 23272 CAK/W33 Bearing

23272 CAK/W33 Bearing’s double-row construction distributes loads evenly across both rows of rollers.
The chrome steel materials resist wear, ensuring long service life even under heavy use.
Its lubrication system maintains smooth operation, reducing maintenance intervals.
Weighing 325 kg, it is built for stability and endurance in industrial applications.

Why Choose 23272 CAK/W33 Bearing for Heavy-Duty Applications?

23272 CAK/W33 Bearing combines high load capacity with reliable performance in tough conditions.
Its spherical rollers and brass cage ensure smooth operation under combined loads.
The wide temperature range and robust construction make it suitable for varied industrial uses.
With standard radial clearance (CN), it offers consistent performance over time.

Application

Industrial Uses of 23272 CAK/W33 Bearing
23272 CAK/W33 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles high radial and axial loads. The brass cage ensures smooth operation even under demanding conditions.

What Makes 23272 CAK/W33 Bearing a Preferred Choice?
In mining equipment, 23272 CAK/W33 Bearing’s tapered bore provides secure fitting on shafts, reducing slippage during operation. Its chrome steel construction offers excellent wear resistance in abrasive environments.

Built for Heavy-Duty Use: 23272 CAK/W33 Bearing
For wind turbines, 23272 CAK/W33 Bearing’s spherical roller design accommodates misalignment, ensuring reliable performance in variable conditions. The lubrication groove simplifies maintenance, extending service life.

Automotive vs Aerospace: Applications of 23272 CAK/W33 Bearing
In large trucks, 23272 CAK/W33 Bearing supports drivetrain components, handling combined loads efficiently. Its high temperature range also makes it suitable for industrial furnaces and kilns.

Where Is 23272 CAK/W33 Bearing Used?
23272 CAK/W33 Bearing is ideal for paper mills, where its dynamic load capacity withstands continuous operation. The open seal design allows for easy relubrication, reducing downtime.
