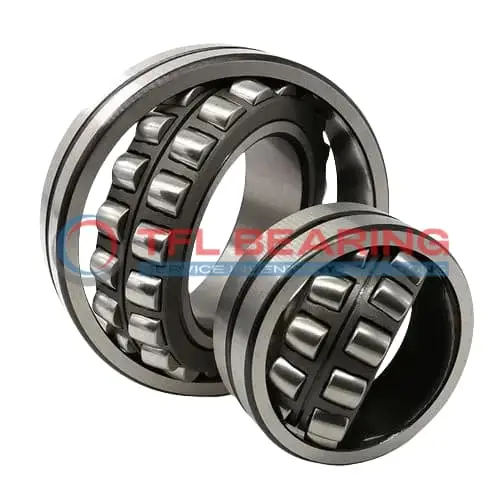

23238 CC C4 W33 Double Row Spherical Roller Bearing

23238 CC C4 W33 Double Row Spherical Roller Bearing

The 23238 CC C4 W33 is a double row spherical roller bearing with a 190mm bore and 340mm outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 395439 lbf and operates smoothly at speeds up to 1800 RPM.

Its open design and lubrication groove make maintenance straightforward, while the steel cage ensures durability. The bearing performs reliably in temperatures ranging from -30°C to 200°C.

This model is interchangeable with SKF bearings, offering a dependable replacement option. Suitable for heavy-duty applications like industrial gearboxes or mining equipment where high radial loads are present.

Weighing 47kg, it’s built for robust performance. Compliant with RoHS and REACH standards for safe industrial use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 23238 CC C4 W33
  • Brand TFL
  • Interchangeable SKF
  • Size 190 x 340 x 120 mm
  • Bore Dia 190 mm
  • Bore Dia Tolerance -0.03mm to 0
  • Outer Dia 340 mm
  • Outer Dia Tolerance -0.04mm to 0
  • Width 120 mm
  • Width Tolerance -0.08mm to 0
  • Shoulder Dia Of Inner Ring 222 mm
  • Shoulder/Recess Dia Of Outer Ring 287 mm
  • Width Of Lubrication Groove 16.7 mm
  • Diameter Of Lubrication Hole 9 mm
  • Chamfer Dimension min.4 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 395439 lbf
  • Static Radial Load 539541 lbf
  • Max Speed 1800 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance C4
  • RoHs Compliant
  • REACH Compliant
  • Weight 47 kg
  • Price （US$） US$652.86

Features

How Does 23238 CC C4 W33 Bearing Handle Heavy Loads?

23238 CC C4 W33 Bearing is built with chrome steel rings and rollers, offering robust resistance to combined loads.
Its dynamic radial load capacity reaches 395439 lbf, ensuring dependable performance in heavy-duty applications.
The steel cage maintains roller alignment, reducing friction and enhancing durability.
With a maximum speed of 1800 rpm, it delivers a balance of strength and efficiency.

What Makes 23238 CC C4 W33 Bearing Suitable for High-Temperature Applications?

23238 CC C4 W33 Bearing operates smoothly in temperatures ranging from -30° to 200 °C.
Its chrome steel construction ensures stability and performance even in demanding thermal conditions.
The double-row spherical roller design accommodates misalignment, reducing stress and wear.
This makes it ideal for applications where temperature fluctuations are common.

Engineered for Precision: 23238 CC C4 W33 Bearing

23238 CC C4 W33 Bearing features a double-row spherical roller design for precise load distribution.
The cylindrical bore and C4 radial clearance ensure accurate fit and smooth operation.
Its lubrication groove and holes facilitate consistent grease distribution, reducing maintenance needs.
This design enhances reliability in high-precision industrial applications.

Structural Advantages of 23238 CC C4 W33 Bearing

23238 CC C4 W33 Bearing’s double-row construction provides excellent load-carrying capacity.
The spherical roller design compensates for misalignment, improving operational stability.
With a static radial load of 539541 lbf, it handles extreme conditions with ease.
Its robust steel cage ensures long-term performance and reduced wear.

Application

Industrial Uses of 23238 CC C4 W33 Bearing
23238 CC C4 W33 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles high radial and axial loads. The spherical roller construction ensures smooth operation even with slight misalignments.

In mining equipment, 23238 CC C4 W33 Bearing’s robust chrome steel build withstands harsh conditions, while the C4 radial clearance accommodates thermal expansion. Its lubrication groove design simplifies maintenance in hard-to-reach areas.

For wind turbines, 23238 CC C4 W33 Bearing’s high dynamic load capacity makes it ideal for supporting rotor shafts. The steel cage enhances durability, ensuring reliable performance in continuous operation.

Where Is 23238 CC C4 W33 Bearing Used?
You’ll often find 23238 CC C4 W33 Bearing in paper mills, where its combined load capability suits roller presses and dryers. The open seal design allows for easy re-lubrication during routine checks.

In construction machinery, 23238 CC C4 W33 Bearing’s wide temperature range (-30° to 200°C) ensures stability in varying climates. The metric sizing ensures compatibility with global equipment standards.

Built for Heavy-Duty Use: 23238 CC C4 W33 Bearing
23238 CC C4 W33 Bearing excels in steel plants, supporting rolling mill stands with its high static radial load capacity. The cylindrical bore ensures a secure fit on shafts.

For marine applications, 23238 CC C4 W33 Bearing’s corrosion-resistant materials and lubrication holes extend service life. Its 1800 rpm max speed suits propeller shaft requirements.

Automotive vs Aerospace: Applications of 23238 CC C4 W33 Bearing
In heavy trucks, 23238 CC C4 W33 Bearing handles wheel hub loads, while in aerospace, its precision suits auxiliary gearboxes. The weight (47kg) reflects its industrial-grade construction.

For rail transport, 23238 CC C4 W33 Bearing’s vibration damping is key for bogie assemblies. The spherical rollers compensate for track alignment shifts during long hauls.
