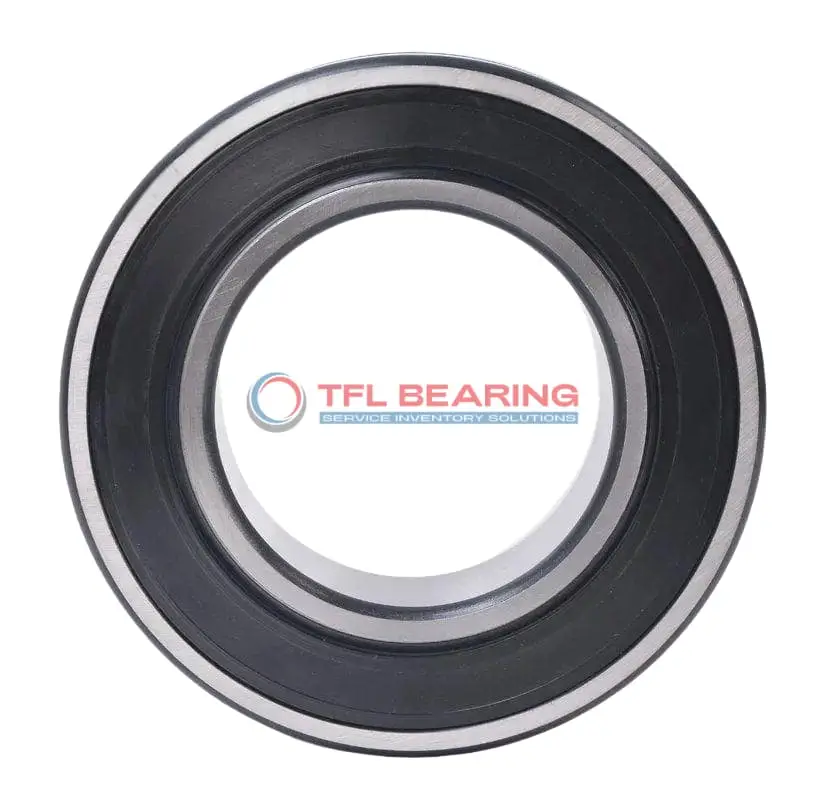

23222-2CS5/VT143 Double Row Spherical Roller Bearing

23222-2CS5/VT143 Double Row Spherical Roller Bearing

The 23222-2CS5/VT143 is a double-row spherical roller bearing with a 110mm bore and 200mm outer diameter, built from tough chrome steel. It handles combined loads up to 140955 lbf and runs smoothly at speeds up to 750 RPM.

Its double-seal design keeps contaminants out while the steel cage ensures durability. The bearing requires lubrication and operates in temperatures from -30°C to 200°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for heavy machinery or industrial equipment where high radial loads are common.

Weighing 9.85kg, it’s a sturdy option for demanding applications. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 23222-2CS5/VT143
  • Brand TFL
  • Interchangeable SKF
  • Size 110 x 200 x 69.8 mm
  • Bore Dia 110 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 200 mm
  • Outer Dia Tolerance -0.030mm to 0
  • Width 69.8 mm
  • Width Tolerance -0.08mm to 0
  • Shoulder Dia Of Inner Ring 126 mm
  • Shoulder/Recess Dia Of Outer Ring 178 mm
  • Width Of Lubrication Groove 8.3 mm
  • Diameter Of Lubrication Hole 4.5 mm
  • Chamfer Dimension min.2.1 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Double Seal
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 140955 lbf
  • Static Radial Load 171979 lbf
  • Max Speed 750 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance CN
  • RoHs Compliant
  • REACH Compliant
  • Weight 9.85 kg
  • Price （US$） US$230.99

Features

Performance Features of 23222-2CS5/VT143 Bearing

23222-2CS5/VT143 Bearing is built with chrome steel rings and rollers, offering high resistance to combined loads.
Its dynamic radial load capacity reaches 140955 lbf, ensuring robust performance in heavy-duty applications.

The double-seal design protects 23222-2CS5/VT143 Bearing from contaminants, enhancing its reliability.
It operates smoothly in temperatures ranging from -30° to 200°C, making it versatile for various environments.

23222-2CS5/VT143 Bearing’s spherical roller design accommodates misalignment, reducing stress on components.
With a maximum speed of 750 rpm, it balances durability and efficiency in demanding conditions.

The lubrication groove and holes in 23222-2CS5/VT143 Bearing ensure consistent performance.
Its steel cage maintains roller alignment, extending the bearing’s service life.

Application

Industrial Uses of 23222-2CS5/VT143 Bearing
The 23222-2CS5/VT143 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles combined loads effortlessly. Its chrome steel construction ensures durability even in harsh industrial environments.

Where Is 23222-2CS5/VT143 Bearing Used?
You’ll often find the 23222-2CS5/VT143 Bearing in mining equipment, where its spherical roller design compensates for misalignment. The double seal keeps contaminants out, making it ideal for dusty or wet conditions.

Built for Heavy-Duty Use: 23222-2CS5/VT143 Bearing
This bearing excels in paper mills and steel plants, where high radial loads are common. The lubrication groove and holes ensure smooth operation, even at maximum speeds of 750 rpm.

Automotive vs Aerospace: Applications of 23222-2CS5/VT143 Bearing
In automotive applications, the 23222-2CS5/VT143 Bearing supports large axles and gearboxes. For aerospace, its temperature range up to 200°C makes it suitable for auxiliary systems.

Perfect Fit for Automation: 23222-2CS5/VT143 Bearing
The 23222-2CS5/VT143 Bearing works well in robotic arms and conveyor systems, thanks to its ability to handle misalignment. Its steel cage adds extra strength for long-term reliability.
