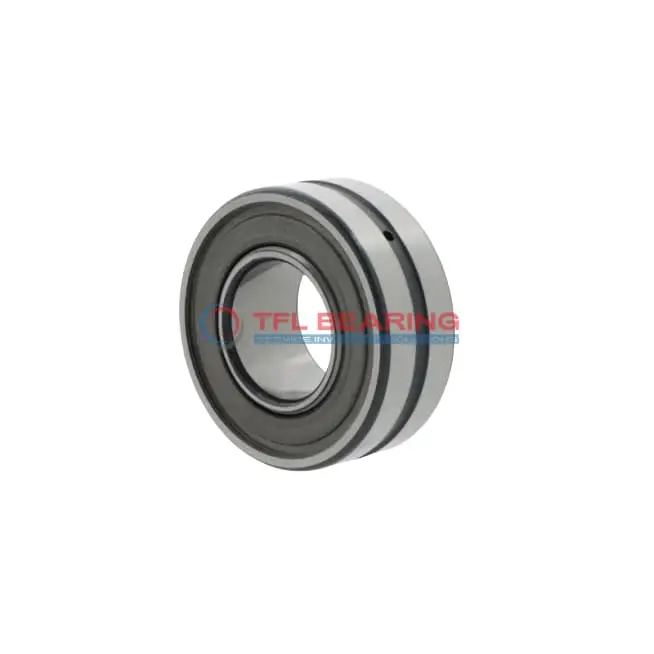

23196-2CS5/VT143 Double Row Spherical Roller Bearing

23196-2CS5/VT143 Double Row Spherical Roller Bearing

The 23196-2CS5/VT143 is a double-row spherical roller bearing with a large 480mm bore and 790mm outer diameter, built from sturdy chrome steel. It handles heavy combined loads, supporting up to 1,656,167 lbf dynamically and 2,697,707 lbf statically.

Its double-seal design keeps contaminants out while the steel cage ensures durability. The bearing operates smoothly at speeds up to 170 RPM and can withstand temperatures from -30°C to 200°C.

With a lubrication groove and holes for easy maintenance, this model is ideal for heavy machinery like crushers or large gearboxes. It meets RoHS and REACH standards, offering reliable performance in demanding environments.

Weighing 485kg, it’s a robust solution for industrial applications requiring high load capacity and long service life. The spherical roller design also accommodates slight misalignments, reducing wear.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 23196-2CS5/VT143
  • Brand TFL
  • Interchangeable SKF
  • Size 480 x 790 x 248 mm
  • Bore Dia 480 mm
  • Bore Dia Tolerance -0.045mm to 0
  • Outer Dia 790 mm
  • Outer Dia Tolerance -0.075mm to 0
  • Width 248 mm
  • Width Tolerance -0.45mm to 0
  • Shoulder Dia Of Inner Ring 560 mm
  • Shoulder/Recess Dia Of Outer Ring 723 mm
  • Width Of Lubrication Groove 22.3 mm
  • Diameter Of Lubrication Hole 12 mm
  • Chamfer Dimension min.7.5 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Double Seal
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 1656167 lbf
  • Static Radial Load 2697707 lbf
  • Max Speed 170 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance CN
  • RoHs Compliant
  • REACH Compliant
  • Weight 485 kg

Features

How Is 23196-2CS5/VT143 Bearing Engineered for Reliability?

23196-2CS5/VT143 Bearing features a double-row spherical roller design, ideal for handling combined loads with ease.
Its chrome steel construction ensures durability, even under high dynamic radial loads up to 1,656,167 lbf.

The double-seal design protects against contaminants, making it suitable for harsh environments.
With a temperature range of -30° to 200°C, it performs reliably in varying conditions.

The lubrication groove and holes simplify maintenance, extending the bearing’s service life.
Its precision engineering ensures smooth operation at speeds up to 170 rpm.

Application

Industrial Uses of 23196-2CS5/VT143 Bearing
23196-2CS5/VT143 Bearing is commonly used in heavy machinery like crushers and mining equipment, where its double-row spherical design handles high radial and axial loads. The chrome steel construction ensures durability in harsh environments.

In wind turbines, 23196-2CS5/VT143 Bearing supports the main shaft, providing reliable performance under variable wind conditions. Its double seal design helps keep contaminants out, extending service life.

For large conveyor systems, 23196-2CS5/VT143 Bearing’s high load capacity and temperature resistance make it ideal for continuous operation. The lubrication groove ensures smooth performance even under heavy loads.

What Makes 23196-2CS5/VT143 Bearing a Preferred Choice?
23196-2CS5/VT143 Bearing is often chosen for paper mills due to its ability to handle misalignment and heavy loads. The steel cage adds strength, making it suitable for high-demand applications.

In steel production, 23196-2CS5/VT143 Bearing’s high static radial load capacity ensures stability in rolling mills. Its wide temperature range allows it to perform well in both hot and cold conditions.

Built for Heavy-Duty Use: 23196-2CS5/VT143 Bearing
23196-2CS5/VT143 Bearing is a go-to for construction equipment like cranes, where its combined load handling keeps operations smooth. The metric sizing ensures compatibility with global machinery standards.

For marine applications, 23196-2CS5/VT143 Bearing’s corrosion-resistant materials and seal design protect against saltwater exposure. Its high dynamic radial load capacity ensures reliability in demanding conditions.
