TS (Single Row Tapered Roller Bearings) (Imperial) 13685-13624

TS (Single Row Tapered Roller Bearings) (Imperial) 13685-13624

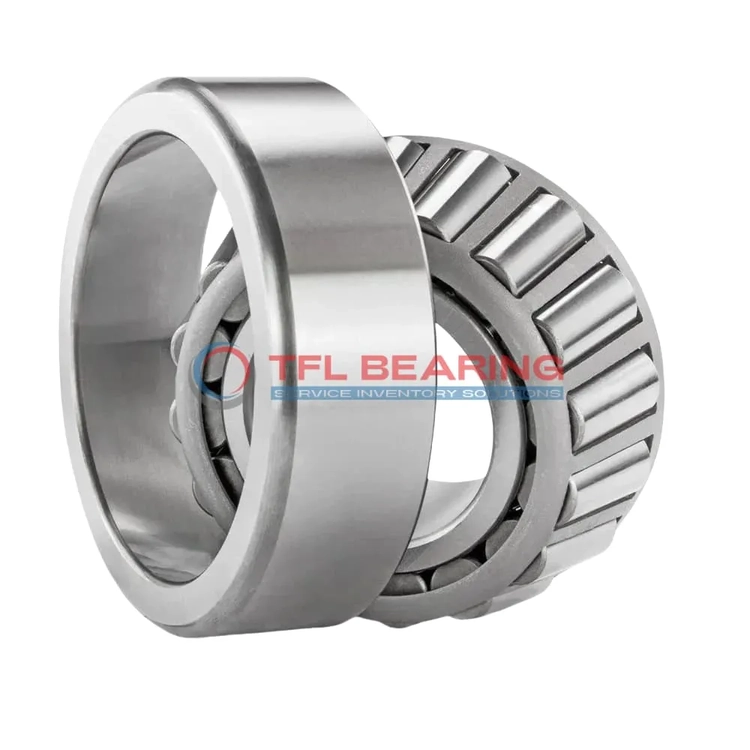

The 13685-13624 is a single-row tapered roller bearing with a 1.5″ bore and 2.7547″ outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 15100 lbf radially and 2700 lbf thrust, suitable for demanding applications.

Its open design allows easy lubrication, while the steel cage ensures durability under heavy use. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, making it a practical choice for replacements. Ideal for machinery like gearboxes or axles where combined loads are common.

Weighing just 0.7lb, it’s compact yet robust. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 13685-13624
  • Brand TFL
  • Interchangeable Timken
  • Size 1.5" x 2.7547" x 0.866"
  • Bore Dia 1.5"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 2.7547"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 0.75"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.7098"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 0.866"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.14"
  • Cup Backface ToClear Radius 0.06"
  • Cone Frontface Backing Diameter 1.69"
  • Cone Backface Backing Diameter 1.95"
  • Cup Frontface Backing Diameter 2.60"
  • Cup Backface Backing Diameter 2.40"
  • Cage Cone Frontface Clearance 0.05"
  • Cage Cone Backface Clearance 0.02"
  • Effective Center Location -0.12"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 13685
  • Cup Part Number 13624
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 13600
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 15100 lbf
  • Static Radial Load 15300 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 3920 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 2700 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.7 lb

Features

Performance Features of 13685-13624 Bearing

13685-13624 Bearing is constructed with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 15,100 lbf, ensuring reliable performance in various applications.

The steel cage maintains proper roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs well in diverse environments.

13685-13624 Bearing requires lubrication, which helps maintain smooth operation over time.
Its standard radial clearance makes it versatile for different installation needs.

Application

Industrial Uses of 13685-13624 Bearing
13685-13624 Bearing is commonly used in heavy machinery like construction equipment and agricultural gear, where its tapered roller design handles combined loads efficiently. The chrome steel construction ensures durability even in demanding environments.

In automotive applications, 13685-13624 Bearing fits well in wheel hubs and differential systems, providing reliable performance under varying loads. Its inch sizing makes it a straightforward replacement for Timken equivalents in many vehicles.

For industrial conveyor systems, 13685-13624 Bearing’s open design simplifies lubrication and maintenance, extending service life. The standard radial clearance offers flexibility for different operational needs.

Where Is 13685-13624 Bearing Used?
You’ll often find 13685-13624 Bearing in mining equipment, where its robust design withstands high radial and thrust loads. The steel cage adds extra strength for prolonged use.

In manufacturing plants, 13685-13624 Bearing supports machinery like presses and gearboxes, ensuring smooth operation. Its ABEC-1 rating balances precision and cost-effectiveness for general industrial use.

Built for Heavy-Duty Use: 13685-13624 Bearing
13685-13624 Bearing excels in forestry machinery, handling rough conditions with its tapered rollers and chrome steel components. The standard lubrication requirement keeps maintenance straightforward.

For railway applications, 13685-13624 Bearing’s effective center location helps manage misalignment and vibration. Its compatibility with Timken designs makes it a versatile choice for repairs and upgrades.

Automotive vs Aerospace: Applications of 13685-13624 Bearing
In automotive settings, 13685-13624 Bearing is ideal for drivetrain components, offering reliable load capacity. The inch measurements ensure easy integration with existing systems.

For aerospace ground support equipment, 13685-13624 Bearing provides dependable performance without the need for specialised tooling. Its temperature range suits most operational environments.
