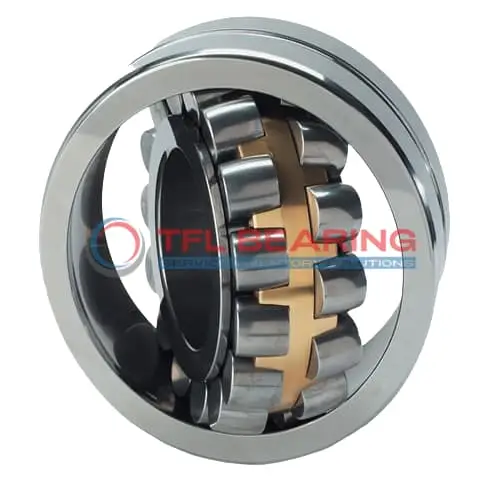

23192 CAK C08 W507 Double Row Spherical Roller Bearing

23192 CAK C08 W507 Double Row Spherical Roller Bearing

The 23192 CAK C08 W507 is a double-row spherical roller bearing with a 460mm bore and 760mm outer diameter, built from tough chrome steel. It handles combined loads up to 1519708 lbf and runs smoothly at speeds up to 800 RPM.

Its brass cage and open design ensure durability, while the tapered bore (1:12) simplifies installation. The bearing operates in temperatures from -30°C to 200°C, making it versatile for harsh environments.

This model is interchangeable with SKF bearings, offering a reliable replacement option. Ideal for heavy machinery like crushers or large gearboxes where high radial loads are common.

Weighing 430kg, it’s a robust choice for industrial applications. Compliant with RoHS and REACH standards, it requires regular lubrication for optimal performance.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 23192 CAK C08 W507
  • Brand TFL
  • Interchangeable SKF
  • Size 460 x 760 x 240 mm
  • Bore Dia 460 mm
  • Bore Dia Tolerance +0.063mm to 0
  • Outer Dia 760 mm
  • Outer Dia Tolerance -0.075mm to 0
  • Width 240 mm
  • Width Tolerance -0.45mm to 0
  • Shoulder Dia Of Inner Ring 555 mm
  • Shoulder/Recess Dia Of Outer Ring 666 mm
  • Width Of Lubrication Groove 22.3 mm
  • Diameter Of Lubrication Hole 12 mm
  • Chamfer Dimension min.7.5 mm
  • System of Measurement Metric
  • Radial run-out P5
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Taper 1:12
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 1519708 lbf
  • Static Radial Load 2427937 lbf
  • Max Speed 800 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance CN
  • RoHs Compliant
  • REACH Compliant
  • Weight 430 kg
  • Price （US$） US$7,960.50

Features

Performance Features of 23192 CAK C08 W507 Bearing

23192 CAK C08 W507 Bearing is built with chrome steel rings and rollers, offering high resistance to combined loads.
Its dynamic radial load capacity reaches 1,519,708 lbf, making it suitable for heavy-duty applications.

The brass cage ensures proper roller alignment, reducing friction and enhancing durability.
With a maximum speed of 800 rpm, it maintains stable performance under demanding conditions.

23192 CAK C08 W507 Bearing operates efficiently in temperatures ranging from -30° to 200°C.
Its tapered bore design simplifies installation, ensuring a secure fit and reliable operation.

The double-row spherical roller construction allows for slight misalignment adjustments.
This design feature helps maintain performance even in less-than-ideal operating conditions.

Application

Industrial Uses of 23192 CAK C08 W507 Bearing
23192 CAK C08 W507 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles high radial and axial loads. The brass cage ensures smooth operation even under demanding conditions.

In wind turbine applications, 23192 CAK C08 W507 Bearing supports the main shaft, providing reliable performance in variable weather conditions. Its tapered bore design simplifies installation and maintenance in remote locations.

For mining equipment, 23192 CAK C08 W507 Bearing’s chrome steel construction withstands extreme loads and harsh environments. The lubrication groove design helps extend service life in dusty or high-temperature settings.

What Makes 23192 CAK C08 W507 Bearing a Preferred Choice?
23192 CAK C08 W507 Bearing excels in paper mill machinery, where its spherical rollers compensate for misalignment. The metric sizing ensures compatibility with European and Asian industrial standards.

In steel production lines, 23192 CAK C08 W507 Bearing handles the intense heat and heavy loads of rolling mills. The P5 radial run-out precision contributes to consistent product quality.

Built for Heavy-Duty Use: 23192 CAK C08 W507 Bearing
23192 CAK C08 W507 Bearing is ideal for large gearboxes in marine applications, where its corrosion-resistant materials perform well in salty environments. The open design allows for easy relubrication during routine maintenance.

For construction equipment like cranes, 23192 CAK C08 W507 Bearing provides stability under dynamic loads. Its high static radial load capacity ensures safety in critical lifting operations.
