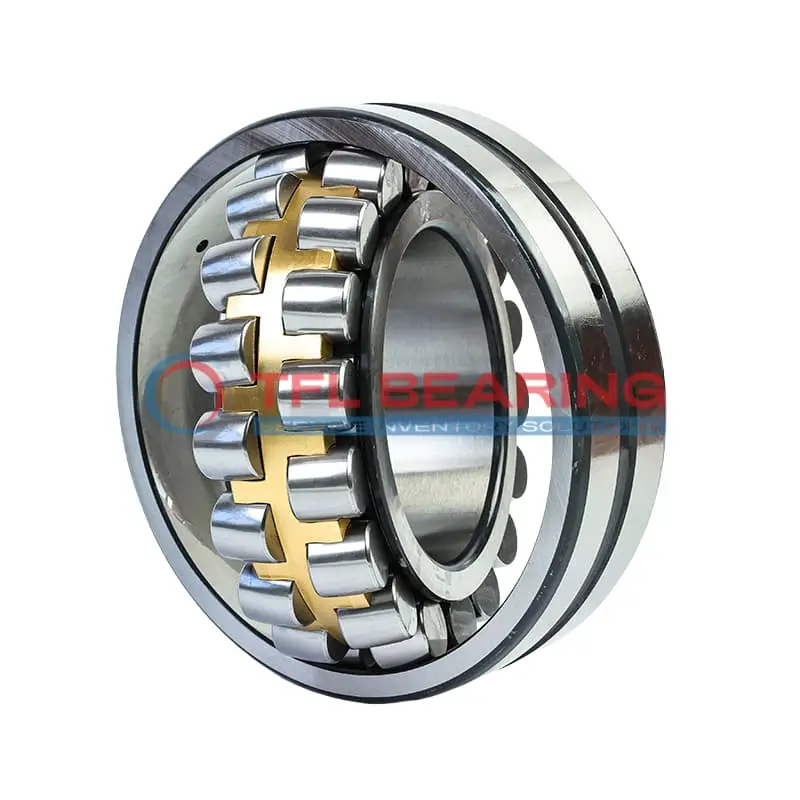

23176 CAK/HA3C4W33 Double Row Spherical Roller Bearing

23176 CAK/HA3C4W33 Double Row Spherical Roller Bearing

The 23176 CAK/HA3C4W33 is a double-row spherical roller bearing with a large 380mm bore and 620mm outer diameter, built from tough chrome steel. It handles combined loads up to 1,025,354 lbf and runs smoothly at speeds up to 1000 RPM.

Its brass cage and open design ensure durability, while the tapered bore (1:12 ratio) allows for secure mounting. The bearing operates in temperatures from -30°C to 200°C, making it suitable for demanding environments.

With a C4 radial clearance and lubrication grooves (22.3mm wide, 12mm holes), maintenance is straightforward. This model is interchangeable with SKF bearings, ideal for heavy machinery like crushers or large gearboxes.

Weighing 230kg, it’s a robust choice for industrial applications requiring high load capacity and reliability. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 23176 CAK/HA3C4W33
  • Brand TFL
  • Interchangeable SKF
  • Size 380 x 620 x 194 mm
  • Bore Dia 380 mm
  • Bore Dia Tolerance +0.057mm to 0
  • Outer Dia 620 mm
  • Outer Dia Tolerance -0.05mm to 0
  • Width 194 mm
  • Width Tolerance -0.4mm to 0
  • Shoulder Dia Of Inner Ring 454 mm
  • Shoulder/Recess Dia Of Outer Ring 541 mm
  • Width Of Lubrication Groove 22.3 mm
  • Diameter Of Lubrication Hole 12 mm
  • Chamfer Dimension min.5 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Taper 1:12
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 1025354 lbf
  • Static Radial Load 1596144 lbf
  • Max Speed 1000 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance C4
  • RoHs Compliant
  • REACH Compliant
  • Weight 230 kg
  • Price （US$） US$6,877.01

Features

How Does 23176 CAK/HA3C4W33 Bearing Handle Combined Loads?

23176 CAK/HA3C4W33 Bearing is built with chrome steel rings and rollers, offering robust resistance to combined radial and thrust loads.
Its dynamic radial load capacity reaches 1,025,354 lbf, making it suitable for heavy-duty industrial applications.
The brass cage ensures smooth roller movement, enhancing durability and reducing friction.
With a maximum speed of 1,000 rpm, it maintains performance under high-stress conditions.

Why Choose 23176 CAK/HA3C4W33 Bearing for High-Temperature Applications?

23176 CAK/HA3C4W33 Bearing operates efficiently in temperatures ranging from -30° to 200°C.
Its chrome steel construction and brass cage provide stability and resistance to thermal expansion.
The open design allows for effective lubrication, ensuring smooth operation even in extreme conditions.
This makes it ideal for applications requiring consistent performance under varying temperatures.

Engineered for Precision: 23176 CAK/HA3C4W33 Bearing

23176 CAK/HA3C4W33 Bearing features a double-row spherical roller design, ensuring precise alignment under combined loads.
The tapered bore design simplifies installation and enhances stability during operation.
With a radial clearance of C4, it accommodates thermal expansion without compromising performance.
Its high load capacity and durability make it a reliable choice for demanding industrial environments.

Application

Industrial Uses of 23176 CAK/HA3C4W33 Bearing
23176 CAK/HA3C4W33 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles combined loads efficiently. The tapered bore ensures a secure fit, reducing slippage in high-vibration environments.

In wind turbines, 23176 CAK/HA3C4W33 Bearing supports the main shaft, thanks to its high dynamic radial load capacity. The brass cage and chrome steel rollers provide durability in harsh weather conditions.

For mining equipment, 23176 CAK/HA3C4W33 Bearing’s C4 radial clearance accommodates thermal expansion during prolonged operation. Its lubrication groove design simplifies maintenance in remote locations.

What Makes 23176 CAK/HA3C4W33 Bearing a Preferred Choice?
23176 CAK/HA3C4W33 Bearing excels in paper mill machinery, where its spherical rollers compensate for shaft misalignment. The metric sizing ensures compatibility with European industrial standards.

In steel production lines, 23176 CAK/HA3C4W33 Bearing withstands extreme temperatures up to 200°C. The open seal design allows for custom lubrication to match specific operational needs.

Built for Heavy-Duty Use: 23176 CAK/HA3C4W33 Bearing
23176 CAK/HA3C4W33 Bearing is ideal for large gearboxes in marine applications, where its static radial load capacity prevents deformation. The 12mm lubrication holes enable efficient grease distribution.

For construction cranes, 23176 CAK/HA3C4W33 Bearing’s 194mm width provides stability under heavy loads. The chrome steel construction resists wear in dusty job site conditions.

Automotive vs Aerospace: Applications of 23176 CAK/HA3C4W33 Bearing
In locomotive axle boxes, 23176 CAK/HA3C4W33 Bearing handles both radial and thrust loads during high-speed travel. The C4 clearance accommodates thermal expansion on long hauls.

For industrial fans, 23176 CAK/HA3C4W33 Bearing’s 1000 rpm rating ensures smooth operation. The 620mm outer diameter provides ample surface area for heat dissipation.
