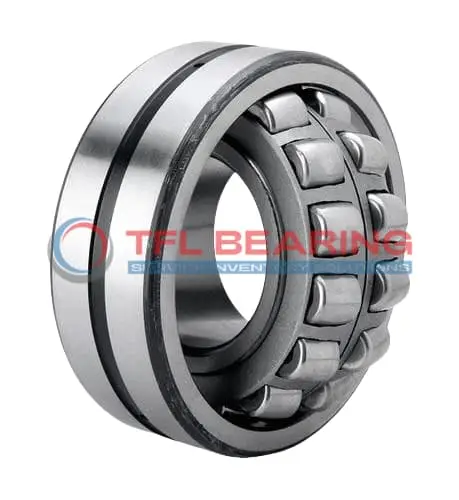

23152 CC/C08W33 Double Row Spherical Roller Bearing

23152 CC/C08W33 Double Row Spherical Roller Bearing

The 23152 CC/C08W33 is a double-row spherical roller bearing with a 260mm bore and 440mm outer diameter, built from sturdy chrome steel. It manages combined loads up to 577309 lbf and runs smoothly at speeds up to 1400 RPM.

Its open design allows for easy lubrication, while the steel cage ensures durability under heavy use. The bearing operates well in temperatures ranging from -30°C to 200°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for heavy machinery or industrial equipment where high radial loads are common.

Weighing 91kg, it’s a robust option for demanding applications. Compliant with RoHS and REACH standards for safe and reliable use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 23152 CC/C08W33
  • Brand TFL
  • Interchangeable SKF
  • Size 260 x 440 x 144 mm
  • Bore Dia 260 mm
  • Bore Dia Tolerance -0.035mm to 0
  • Outer Dia 440 mm
  • Outer Dia Tolerance -0.045mm to 0
  • Width 144 mm
  • Width Tolerance -0.1mm to 0
  • Shoulder Dia Of Inner Ring 314 mm
  • Shoulder/Recess Dia Of Outer Ring 380 mm
  • Width Of Lubrication Groove 16.7 mm
  • Diameter Of Lubrication Hole 9 mm
  • Chamfer Dimension min.4 mm
  • System of Measurement Metric
  • Radial run-out P5
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 577309 lbf
  • Static Radial Load 843034 lbf
  • Max Speed 1400 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance CN
  • RoHs Compliant
  • REACH Compliant
  • Weight 91 kg

Features

Performance Features of 23152 CC/C08W33 Bearing

23152 CC/C08W33 Bearing is built with chrome steel rings and rollers, offering excellent resistance to combined loads.
Its dynamic radial load capacity reaches 577309 lbf, ensuring reliable operation in heavy-duty applications.

The double-row spherical roller design allows for slight misalignment, maintaining smooth performance.
With a maximum speed of 1400 rpm, it balances durability and efficiency in demanding conditions.

23152 CC/C08W33 Bearing operates in temperatures from -30° to 200°C, suitable for varied environments.
The steel cage ensures proper roller alignment, reducing wear and extending service life.

Lubrication grooves and holes in 23152 CC/C08W33 Bearing facilitate easy maintenance and consistent performance.
Its P5 radial run-out precision makes it ideal for applications requiring high accuracy.

Application

Key Fields for 23152 CC/C08W33 Bearing
23152 CC/C08W33 Bearing is commonly used in heavy industrial machinery, such as mining equipment and large gearboxes, where its double-row design handles significant radial and axial loads. The spherical roller construction ensures smooth operation even with slight misalignments.

Where Is 23152 CC/C08W33 Bearing Used?
In wind turbines, 23152 CC/C08W33 Bearing supports the main shaft, providing reliable performance under varying wind conditions. Its high dynamic load capacity makes it suitable for long-term use in renewable energy applications.

Built for Heavy-Duty Use: 23152 CC/C08W33 Bearing
For steel mills and paper processing machines, 23152 CC/C08W33 Bearing offers durability in high-temperature environments. The chrome steel rings and rollers ensure resistance to wear in demanding conditions.

Automotive vs Aerospace: Applications of 23152 CC/C08W33 Bearing
While 23152 CC/C08W33 Bearing is too large for most automotive uses, it excels in aerospace applications like helicopter rotor systems. Its precision and load capacity meet the rigorous demands of aviation.

Industrial Uses of 23152 CC/C08W33 Bearing
In construction equipment, 23152 CC/C08W33 Bearing is ideal for cranes and excavators, where its robust design handles heavy loads. The lubrication groove ensures consistent performance in dusty or wet environments.
