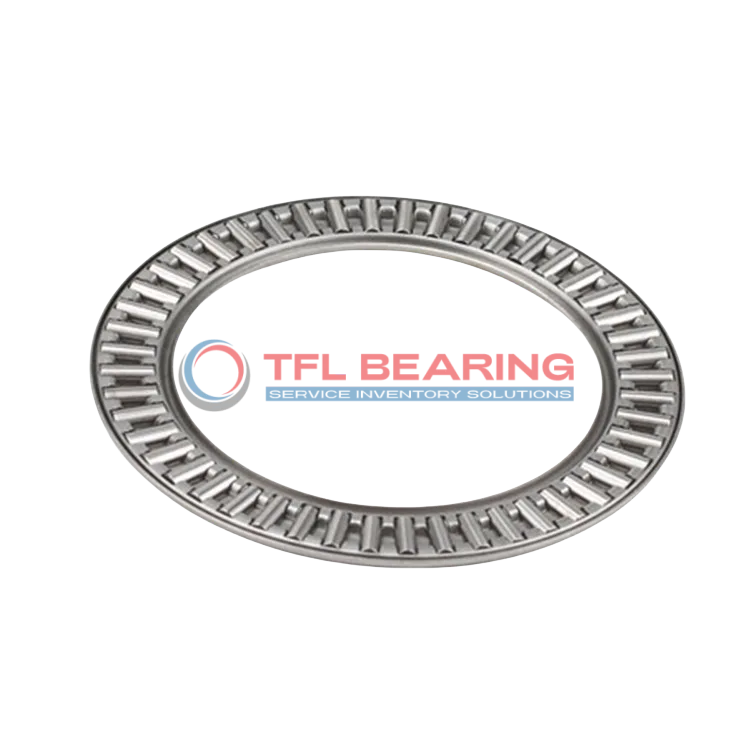

Needle Roller Thrust Bearings (Cages) AXW30

Needle Roller Thrust Bearings (Cages) AXW30

The AXW30 is a needle roller thrust bearing cage with a 30mm bore and 50mm outer diameter, crafted from sturdy steel. It manages thrust loads up to 3668 lbf and operates smoothly at speeds up to 7300 RPM.
Its steel cage and needle rollers ensure durability, while the design supports efficient load distribution. Regular lubrication is needed to maintain optimal performance.
This bearing works well in temperatures ranging from -30°C to 110°C, making it suitable for various environments. It’s interchangeable with INA bearings, offering flexibility for replacements.
Ideal for applications like automotive transmissions or industrial machinery where space is limited but high thrust loads are present. Compliant with RoHS standards for safe and reliable use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number AXW30
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 30 mm
  • Outer Dia 50 mm
  • Width 3.2 mm
  • System of Measurement Metric
  • Roller Bearing Type Needle
  • Type Cages
  • For Load Direction Thrust
  • Series AXW
  • Cage Material Steel
  • Needle Material Steel
  • Dynamic Thrust Load 3668 lbf
  • Static Thrust Load 15750 lbf
  • Max Speed 7300 rpm
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • RoHS Compliant
  • Allocated Axial Bearing Washer AS3047
Needle Roller Thrust Bearings (Cages) AXW30 dimension drawing
Download DWG Download PDF

Features

Engineered for Precision: AXW30 Bearing
AXW30 Bearing features steel cages and needles, ensuring durability under heavy thrust loads.
Its dynamic thrust load capacity of 3668 lbf makes it suitable for demanding applications.
The compact design, with a width of just 3.2 mm, allows for easy integration into tight spaces.
AXW30 Bearing operates smoothly at speeds up to 7300 rpm, balancing performance and efficiency.
Designed for thrust loads, it maintains reliability within a temperature range of -30° to 110°C.
Regular lubrication ensures optimal performance and extends the bearing’s service life.

Application

Industrial Uses of AXW30 Bearing
AXW30 Bearing is commonly used in industrial gearboxes, where its compact design and high thrust capacity make it ideal for tight spaces. The steel cage ensures stability even under continuous heavy loads.
Where Is AXW30 Bearing Used?
You’ll often find AXW30 Bearing in automotive transmissions, supporting smooth gear shifts with its needle roller design. Its high-speed capability also makes it suitable for performance vehicles.
Built for Heavy-Duty Use: AXW30 Bearing
AXW30 Bearing excels in construction equipment like hydraulic pumps, handling axial loads with ease. The steel construction provides durability in harsh working conditions.
Medical vs Industrial: Where AXW30 Bearing Excels
In medical devices, AXW30 Bearing offers precision in applications like surgical tools, while its industrial strength shines in conveyor systems. The ABEC-1 rating ensures reliable performance.
Perfect Fit for Automation: AXW30 Bearing
AXW30 Bearing is a great choice for robotic arms, where its low profile and high load capacity improve movement accuracy. The required lubrication helps maintain long-term efficiency.
