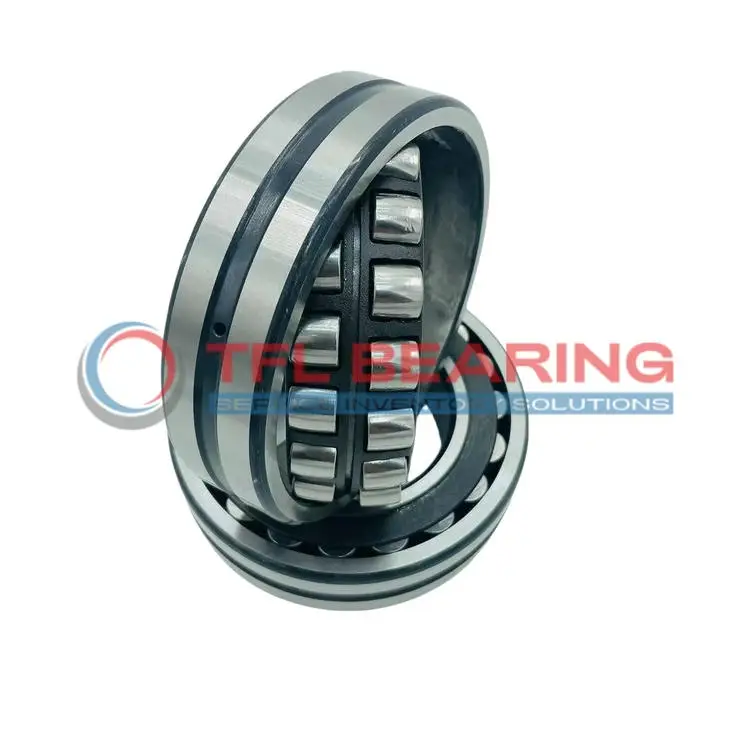

23126 128.550 CC C3 Double Row Spherical Roller Bearing

23126 128.550 CC C3 Double Row Spherical Roller Bearing

The 23126 is a double-row spherical roller bearing with a 130mm bore and 210mm outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 131738 lbf and runs smoothly at speeds up to 3200 RPM.

Its open design and steel cage ensure durability, while the C3 radial clearance allows for thermal expansion. The bearing operates in temperatures from -30°C to 200°C, making it versatile for various conditions.

This model is interchangeable with SKF bearings, offering a reliable replacement option. Ideal for heavy-duty applications like industrial gearboxes or mining equipment where high radial loads are present.

Weighing 8.5kg, it’s built to handle demanding environments. Compliant with RoHS and REACH standards, it’s a safe and robust choice for your machinery needs.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 23126 128.550 CC C3
  • Brand TFL
  • Interchangeable SKF
  • Size 130 x 210 x 64 mm
  • Bore Dia 130 mm
  • Bore Dia Tolerance -0.025mm to 0
  • Outer Dia 210 mm
  • Outer Dia Tolerance -0.030mm to 0
  • Width 64 mm
  • Width Tolerance -0.08mm to 0
  • Shoulder Dia Of Inner Ring 148 mm
  • Shoulder/Recess Dia Of Outer Ring 184 mm
  • Width Of Lubrication Groove 8.3 mm
  • Diameter Of Lubrication Hole 4.5 mm
  • Chamfer Dimension min.2 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 131738 lbf
  • Static Radial Load 175351 lbf
  • Max Speed 3200 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance C3
  • RoHs Compliant
  • REACH Compliant
  • Weight 8.5 kg
  • Price （US$） US$165.42

Features

Performance Features of 23126 128.550 CC C3 Bearing

23126 128.550 CC C3 Bearing is built with chrome steel rings and rollers, offering high resistance to combined loads.
Its dynamic radial load capacity reaches 131738 lbf, ensuring robust performance in heavy-duty applications.

The double-row spherical roller design allows for slight misalignment, maintaining smooth operation.
With a maximum speed of 3200 rpm, it balances efficiency and durability under demanding conditions.

23126 128.550 CC C3 Bearing operates in temperatures from -30° to 200°C, suitable for varied environments.
The steel cage ensures proper roller alignment, reducing wear and extending service life.

Lubrication grooves and holes in 23126 128.550 CC C3 Bearing facilitate easy maintenance.
Its C3 radial clearance provides optimal performance under heavy loads and thermal expansion.

Application

Industrial Uses of 23126 128.550 CC C3 Bearing
23126 128.550 CC C3 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles high radial and axial loads. The spherical roller construction also compensates for misalignment, ensuring smooth operation in rugged environments.

Where Is 23126 128.550 CC C3 Bearing Used?
In mining equipment, 23126 128.550 CC C3 Bearing supports rotating components like conveyor pulleys, thanks to its robust chrome steel construction. Its C3 radial clearance further accommodates thermal expansion in high-temperature settings.

Built for Heavy-Duty Use: 23126 128.550 CC C3 Bearing
This bearing excels in wind turbine gearboxes, where its dynamic load capacity and lubrication grooves enhance longevity. The steel cage adds durability, making it a reliable choice for continuous operation.

Automotive vs Aerospace: Applications of 23126 128.550 CC C3 Bearing
In automotive applications, 23126 128.550 CC C3 Bearing fits large drivetrain components, while in aerospace, it suits auxiliary systems requiring precision under combined loads. Its metric sizing ensures compatibility across industries.

Perfect Fit for Automation: 23126 128.550 CC C3 Bearing
For robotic arms in manufacturing, 23126 128.550 CC C3 Bearing offers stability and load-sharing capabilities. The open design simplifies lubrication, reducing downtime in automated production lines.
