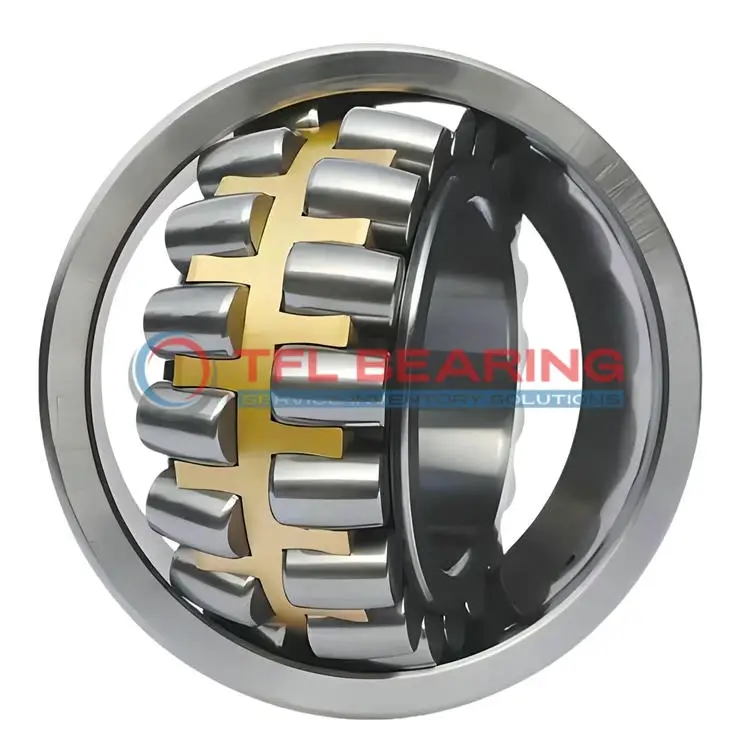

23084 CAK/C08W507 Double Row Spherical Roller Bearing

23084 CAK/C08W507 Double Row Spherical Roller Bearing

The 23084 CAK/C08W507 is a double-row spherical roller bearing with a 420mm bore and 620mm outer diameter, built from sturdy chrome steel. It handles combined loads up to 796048 lbf and runs smoothly at speeds up to 1100 RPM.

Its brass cage and open design ensure durability, while the tapered bore (1:12) allows for secure fitting. The bearing operates in temperatures from -30°C to 200°C, making it suitable for demanding environments.

With a radial clearance of CN and P5 precision, it offers reliable performance under heavy loads. Ideal for industrial machinery like gearboxes or crushers where high radial and axial loads are present.

Weighing 155kg, this robust bearing is interchangeable with SKF models. It meets RoHS and REACH standards, and requires regular lubrication for optimal performance. The lubrication groove (22.3mm wide) and holes (12mm) simplify maintenance.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 23084 CAK/C08W507
  • Brand TFL
  • Interchangeable SKF
  • Size 420 x 620 x 150 mm
  • Bore Dia 420 mm
  • Bore Dia Tolerance +0.063mm to 0
  • Outer Dia 620 mm
  • Outer Dia Tolerance -0.05mm to 0
  • Width 150 mm
  • Width Tolerance -0.45mm to 0
  • Shoulder Dia Of Inner Ring 487 mm
  • Shoulder/Recess Dia Of Outer Ring 563 mm
  • Width Of Lubrication Groove 22.3 mm
  • Diameter Of Lubrication Hole 12 mm
  • Chamfer Dimension min.5 mm
  • System of Measurement Metric
  • Radial run-out P5
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Taper 1:12
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 796048 lbf
  • Static Radial Load 1348854 lbf
  • Max Speed 1100 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance CN
  • RoHs Compliant
  • REACH Compliant
  • Weight 155 kg
  • Price （US$） US$6,833.13

Features

How Is 23084 CAK/C08W507 Bearing Engineered for Reliability?

23084 CAK/C08W507 Bearing features a double-row spherical roller design, ideal for handling combined loads with ease.
Its chrome steel rings and rollers provide excellent strength, supporting dynamic radial loads up to 796048 lbf.

The brass cage ensures smooth roller alignment, reducing friction and wear during operation.
With a maximum speed of 1100 rpm, it delivers consistent performance in demanding industrial applications.

23084 CAK/C08W507 Bearing operates efficiently in temperatures ranging from -30° to 200°C.
Its tapered bore design simplifies installation, ensuring a secure fit and reliable performance.

Application

Industrial Uses of 23084 CAK/C08W507 Bearing
23084 CAK/C08W507 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles both radial and axial loads efficiently. The brass cage ensures smooth operation even under high stress.

What Makes 23084 CAK/C08W507 Bearing a Preferred Choice?
In mining equipment, 23084 CAK/C08W507 Bearing stands out for its ability to withstand harsh conditions and heavy loads. Its tapered bore design simplifies installation and maintenance in hard-to-reach areas.

Built for Heavy-Duty Use: 23084 CAK/C08W507 Bearing
This bearing excels in paper mill machinery, where its chrome steel construction resists wear from constant friction. The lubrication groove design helps extend service life in high-speed applications.

Automotive vs Aerospace: Applications of 23084 CAK/C08W507 Bearing
While too large for most vehicles, 23084 CAK/C08W507 Bearing finds use in industrial trucks and construction equipment. Its temperature range also makes it suitable for certain aerospace ground support systems.

Perfect Fit for Automation: 23084 CAK/C08W507 Bearing
In steel rolling mills, 23084 CAK/C08W507 Bearing provides reliable performance under extreme pressure. The P5 precision rating ensures consistent operation in automated production lines.
