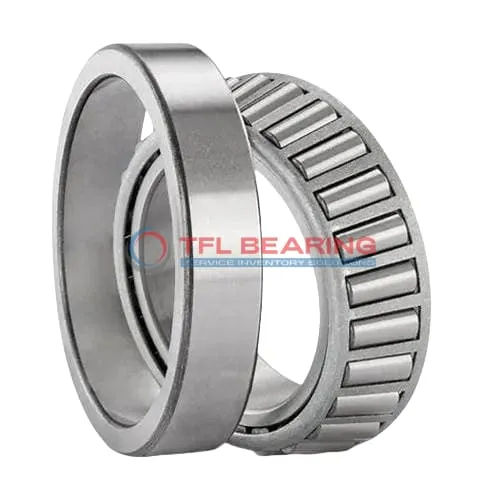

TS (Single Row Tapered Roller Bearings) (Imperial) 17887-17831

TS (Single Row Tapered Roller Bearings) (Imperial) 17887-17831

The 17887-17831 is a single-row tapered roller bearing with a 1.78″ bore and 3.15″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 15,500 lbf and works well in temperatures from -30°C to 110°C.

Its open design allows for easy lubrication, while the steel cage ensures durability. The bearing is interchangeable with Timken models, making it a practical choice for replacements.

With a standard radial clearance and ABEC-1 rating, it offers reliable performance for various applications. Ideal for use in gearboxes, axles, or industrial machinery where combined loads are common.

Weighing just 0.9 lb, it’s lightweight yet robust for its size. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 17887-17831
  • Brand TFL
  • Interchangeable Timken
  • Size 1.7807" x 3.149" x 0.7812"
  • Bore Dia 1.7807"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 3.149"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 0.8125"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.5937"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 0.7812"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.080"
  • Cup Backface ToClear Radius 0.050"
  • Cone Frontface Backing Diameter 1.97"
  • Cone Backface Backing Diameter 2.13"
  • Cup Frontface Backing Diameter 2.99"
  • Cup Backface Backing Diameter 2.83"
  • Cage Cone Frontface Clearance 0.08"
  • Cage Cone Backface Clearance 0.02"
  • Effective Center Location -0.15"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 17887
  • Cup Part Number 17831
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 17800
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 15500 lbf
  • Static Radial Load 18700 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 4020 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 2510 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.9 lb

Features

Performance Features of 17887-17831 Bearing

17887-17831 Bearing is crafted with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 15,500 lbf, ensuring reliable performance in various applications.

The steel cage maintains proper roller alignment, reducing friction and extending service life.
With a temperature range of -30° to 110°C, it performs well in diverse environments.

17887-17831 Bearing requires lubrication, which helps maintain smooth operation over time.
Its standard radial clearance makes it versatile for different industrial needs.

Application

Industrial Uses of 17887-17831 Bearing
The 17887-17831 Bearing is commonly used in heavy machinery like construction equipment and agricultural gear, where its tapered roller design handles combined loads efficiently. Its chrome steel construction ensures durability even in demanding environments.

Where Is 17887-17831 Bearing Used?
You’ll often find 17887-17831 Bearing in automotive applications, particularly in wheel hubs and differential systems. Its inch sizing makes it a reliable choice for older or imperial-based vehicle models.

Built for Heavy-Duty Use: 17887-17831 Bearing
This bearing excels in industrial settings like conveyor systems, where its open design allows for easy lubrication. The steel cage adds extra strength, making it suitable for high-load scenarios.

Automotive vs Aerospace: Applications of 17887-17831 Bearing
In automotive systems, 17887-17831 Bearing supports wheel assemblies, while in aerospace, it’s used in auxiliary gearboxes. Its ABEC-1 rating ensures consistent performance across different industries.

Key Fields for 17887-17831 Bearing
The 17887-17831 Bearing is ideal for mining equipment, where its dynamic radial load capacity handles rough conditions. Its standard radial clearance also makes it versatile for various industrial needs.
