23084 CA/C08W525 Double Row Spherical Roller Bearing

23084 CA/C08W525 Double Row Spherical Roller Bearing

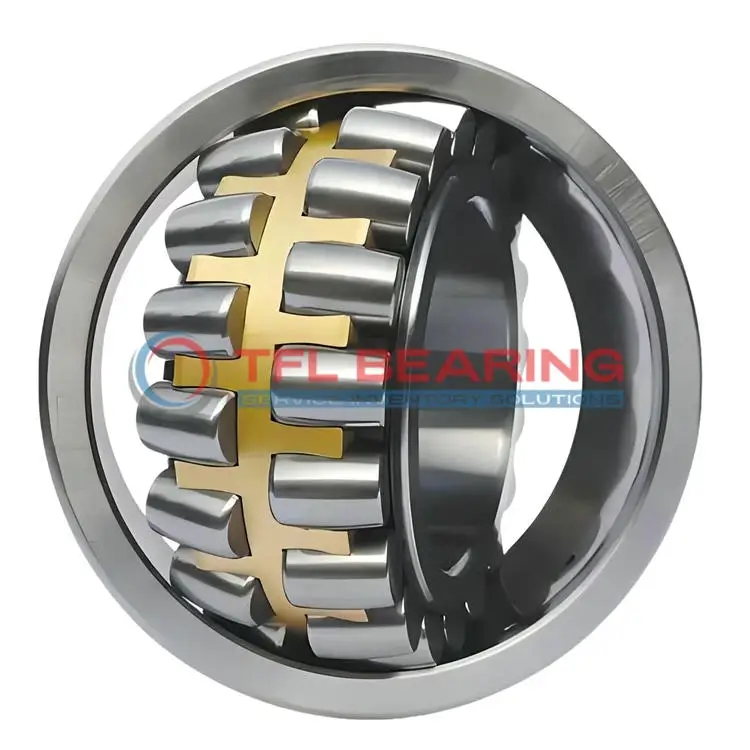

The 23084 CA/C08W525 is a double-row spherical roller bearing with a large 420mm bore and 620mm outer diameter, built from tough chrome steel. It handles combined loads up to 796048 lbf and runs smoothly at speeds up to 1100 RPM.

Its brass cage and open design allow for easy lubrication, while the spherical rollers accommodate misalignment. The bearing operates in temperatures from -30°C to 200°C, making it suitable for harsh environments.

This model is interchangeable with SKF bearings, offering a reliable replacement option. Ideal for heavy-duty applications like industrial gearboxes or mining equipment where high radial loads are present.

Weighing 155kg, it’s a robust choice for large machinery. Compliant with RoHS and REACH standards for safe and sustainable use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 23084 CA/C08W525
  • Brand TFL
  • Interchangeable SKF
  • Size 420 x 620 x 150 mm
  • Bore Dia 420 mm
  • Bore Dia Tolerance -0.045mm to 0
  • Outer Dia 620 mm
  • Outer Dia Tolerance -0.05mm to 0
  • Width 150 mm
  • Width Tolerance -0.45mm to 0
  • Shoulder Dia Of Inner Ring 487 mm
  • Shoulder/Recess Dia Of Outer Ring 563 mm
  • Width Of Lubrication Groove 22.3 mm
  • Diameter Of Lubrication Hole 12 mm
  • Chamfer Dimension min.5 mm
  • System of Measurement Metric
  • Radial run-out P5
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 796048 lbf
  • Static Radial Load 1348854 lbf
  • Max Speed 1100 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance CN
  • RoHs Compliant
  • REACH Compliant
  • Weight 155 kg
  • Price （US$） US$6,833.13

Features

How Does 23084 CA/C08W525 Bearing Handle Combined Loads?

23084 CA/C08W525 Bearing features a double-row spherical roller design, ideal for handling both radial and axial loads.
Its chrome steel construction ensures high strength, supporting dynamic radial loads up to 796048 lbf.
The brass cage maintains roller alignment, enhancing durability and reducing friction.
With a maximum speed of 1100 rpm, it performs reliably in heavy-duty applications.

What Makes 23084 CA/C08W525 Bearing Suitable for High-Temperature Applications?

23084 CA/C08W525 Bearing operates efficiently in temperatures ranging from -30° to 200 °C.
Its chrome steel rollers and rings resist thermal deformation, ensuring consistent performance.
The open design allows for effective lubrication, reducing heat buildup.
This makes it suitable for industrial environments with demanding thermal conditions.

Engineered for Precision: 23084 CA/C08W525 Bearing

23084 CA/C08W525 Bearing is designed with P5 radial run-out tolerance for high precision.
The double-row spherical rollers provide smooth operation under combined loads.
Its brass cage ensures minimal vibration and noise, enhancing operational stability.
With a static radial load capacity of 1348854 lbf, it delivers reliable performance in critical applications.

Application

Industrial Uses of 23084 CA/C08W525 Bearing
23084 CA/C08W525 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles combined loads with ease. The brass cage ensures smooth operation even under high stress.

In wind turbines, 23084 CA/C08W525 Bearing supports the main shaft, thanks to its high dynamic radial load capacity. Its spherical roller design compensates for misalignment, reducing wear over time.

For mining equipment, 23084 CA/C08W525 Bearing’s chrome steel construction withstands harsh conditions, while the lubrication groove extends service life. The metric sizing makes it a reliable choice for global machinery standards.

What Makes 23084 CA/C08W525 Bearing a Preferred Choice?
23084 CA/C08W525 Bearing excels in paper mills, where its high static radial load capacity keeps rollers running smoothly. The open seal design allows for easy maintenance in dusty environments.

In steel plants, 23084 CA/C08W525 Bearing’s temperature range suits hot rolling applications. Its P5 radial run-out precision ensures consistent performance under heavy loads.

Built for Heavy-Duty Use: 23084 CA/C08W525 Bearing
23084 CA/C08W525 Bearing is ideal for construction equipment like cranes, where its 155 kg weight and robust design handle extreme loads. The cylindrical bore simplifies installation on large shafts.

For marine applications, 23084 CA/C08W525 Bearing’s corrosion-resistant materials perform well in salty environments. The lubrication holes ensure even oil distribution, reducing friction.

Automotive vs Aerospace: Applications of 23084 CA/C08W525 Bearing
In automotive testing rigs, 23084 CA/C08W525 Bearing’s high-speed capability supports accurate performance measurements. Its combined load handling suits dynamic testing conditions.

For aerospace ground equipment, 23084 CA/C08W525 Bearing’s precision and durability ensure reliable operation. The wide temperature range accommodates varying environmental conditions.
