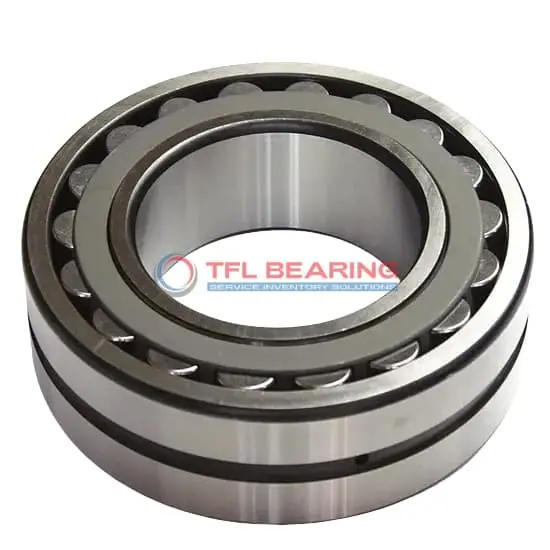

23236 CY C3 W33 Double Row Spherical Roller Bearing

23236 CY C3 W33 Double Row Spherical Roller Bearing

The 23236 CY C3 W33 is a double-row spherical roller bearing with a 180mm bore and 320mm outer diameter, built from sturdy chrome steel. It handles combined loads up to 350028 lbf and runs smoothly at speeds up to 1900 RPM.

Its brass cage and open design allow for easy lubrication, while the spherical rollers accommodate misalignment. The bearing operates in temperatures from -30°C to 200°C, making it versatile for various conditions.

With a C3 radial clearance, it’s suitable for applications where thermal expansion is a factor. Ideal for heavy machinery like crushers or conveyors, where high radial loads and misalignment are common.

Weighing 38.5kg, it’s robust yet manageable for industrial use. Compliant with RoHS and REACH standards, ensuring safety and reliability.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 23236 CY C3 W33
  • Brand TFL
  • Interchangeable SKF
  • Size 180 x 320 x 112 mm
  • Bore Dia 180 mm
  • Bore Dia Tolerance -0.025mm to 0
  • Outer Dia 320 mm
  • Outer Dia Tolerance -0.04mm to 0
  • Width 112 mm
  • Width Tolerance -0.08mm to 0
  • Shoulder Dia Of Inner Ring 211 mm
  • Shoulder/Recess Dia Of Outer Ring 271 mm
  • Width Of Lubrication Groove 13.9 mm
  • Diameter Of Lubrication Hole 7.5 mm
  • Chamfer Dimension min.4 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 350028 lbf
  • Static Radial Load 476595 lbf
  • Max Speed 1900 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance C3
  • RoHs Compliant
  • REACH Compliant
  • Weight 38.5 kg
  • Price （US$） US$476.28

Features

Performance Features of 23236 CY C3 W33 Bearing

23236 CY C3 W33 Bearing is built with chrome steel rings and rollers, offering high resistance to combined loads.
Its dynamic radial load capacity reaches 350028 lbf, making it suitable for heavy-duty applications.
The brass cage ensures smooth roller movement, reducing friction and enhancing durability.
With a maximum speed of 1900 rpm, it delivers reliable performance under demanding conditions.

How Is 23236 CY C3 W33 Bearing Engineered for Reliability?

23236 CY C3 W33 Bearing features a double-row spherical roller design, accommodating misalignment and heavy loads.
The lubrication groove and hole design ensures consistent oil flow, reducing wear and maintenance needs.
Its C3 radial clearance allows for thermal expansion, maintaining performance in varying temperatures.
The robust construction ensures long service life even in harsh industrial environments.

Built for Durability: 23236 CY C3 W33 Bearing

23236 CY C3 W33 Bearing’s chrome steel rollers and rings provide excellent wear resistance.
The spherical roller design compensates for shaft misalignment, ensuring smooth operation.
With a static radial load capacity of 476595 lbf, it handles extreme loads with ease.
Its temperature range of -30° to 200°C makes it versatile for various applications.

Steel vs Ceramic Bearings: Strengths of 23236 CY C3 W33 Bearing

23236 CY C3 W33 Bearing uses chrome steel for both rings and rollers, offering superior strength.
The brass cage enhances durability and reduces friction compared to standard materials.
Its high load capacity and temperature resistance make it ideal for industrial use.
The spherical roller design ensures reliable performance even under misalignment conditions.

Application

Common Applications of 23236 CY C3 W33 Bearing
23236 CY C3 W33 Bearing is widely used in heavy machinery, such as mining equipment and construction vehicles, where it handles combined loads with ease. Its double-row spherical roller design ensures reliable performance even in misaligned conditions.

In wind turbines, 23236 CY C3 W33 Bearing supports the main shaft, enduring high radial and axial forces. The brass cage and chrome steel rollers provide durability in harsh outdoor environments.

For industrial fans and pumps, 23236 CY C3 W33 Bearing offers smooth operation at high speeds. The C3 radial clearance allows for thermal expansion, making it suitable for varying temperatures.

Where Is 23236 CY C3 W33 Bearing Used?
You’ll often find 23236 CY C3 W33 Bearing in paper mills, where it supports large rollers under heavy loads. Its open design simplifies lubrication, extending service life in dusty conditions.

In steel plants, 23236 CY C3 W33 Bearing is essential for conveyor systems handling raw materials. The spherical rollers accommodate shaft deflection, reducing wear and tear.

Built for Heavy-Duty Use: 23236 CY C3 W33 Bearing
23236 CY C3 W33 Bearing excels in marine applications, such as ship propulsion systems, where it withstands constant vibration and corrosion. The chrome steel construction ensures long-term reliability.

In railway applications, 23236 CY C3 W33 Bearing supports axle boxes, providing stability under dynamic loads. The brass cage reduces friction, enhancing efficiency.

Automotive vs Aerospace: Applications of 23236 CY C3 W33 Bearing
In automotive gearboxes, 23236 CY C3 W33 Bearing handles high torque and radial loads. Its robust design makes it a preferred choice for commercial vehicles.

For aerospace ground equipment, 23236 CY C3 W33 Bearing ensures smooth operation in aircraft tow tractors. The wide temperature range suits various climatic conditions.
