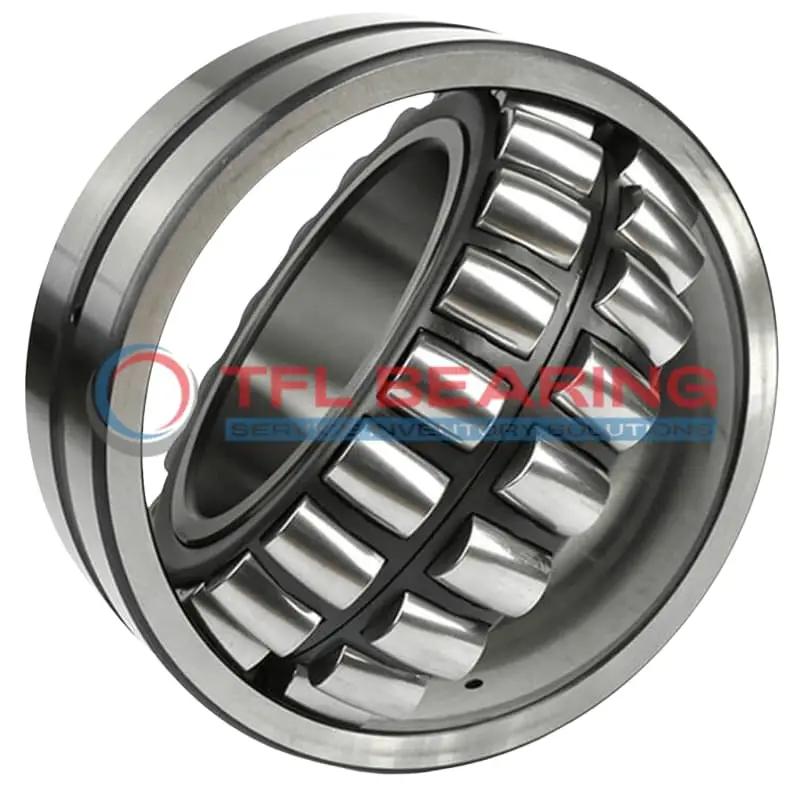

23072 CC/W33VW532 Double Row Spherical Roller Bearing

23072 CC/W33VW532 Double Row Spherical Roller Bearing

The 23072 CC/W33VW532 is a double-row spherical roller bearing with a 360mm bore and 540mm outer diameter, built from sturdy chrome steel. It handles combined loads up to 640705 lbf and runs smoothly at speeds up to 1200 RPM.

Its open design requires lubrication, with a 12mm hole and 22.3mm groove for easy greasing. The steel cage and spherical rollers ensure durability even under heavy radial loads.

This bearing suits high-temperature environments, operating from -30°C to 200°C. It’s interchangeable with SKF models, making it a practical choice for replacements.

Weighing 110kg, it’s designed for robust industrial applications like large gearboxes or heavy machinery where reliability is key. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 23072 CC/W33VW532
  • Brand TFL
  • Interchangeable SKF
  • Size 360 x 540 x 134 mm
  • Bore Dia 360 mm
  • Bore Dia Tolerance -0.04mm to 0
  • Outer Dia 540 mm
  • Outer Dia Tolerance -0.05mm to 0
  • Width 134 mm
  • Width Tolerance -0.4mm to 0
  • Shoulder Dia Of Inner Ring 404 mm
  • Shoulder/Recess Dia Of Outer Ring 483 mm
  • Width Of Lubrication Groove 22.3 mm
  • Diameter Of Lubrication Hole 12 mm
  • Chamfer Dimension min.5 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 640705 lbf
  • Static Radial Load 1079083 lbf
  • Max Speed 1200 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance CN
  • RoHs Compliant
  • REACH Compliant
  • Weight 110 kg
  • Price （US$） US$2,218.14

Features

How Does 23072 CC/W33VW532 Bearing Handle Heavy Loads?

23072 CC/W33VW532 Bearing features a double-row spherical roller design, ideal for handling combined radial and thrust loads.
Its chrome steel construction ensures durability, with a dynamic radial load capacity of 640705 lbf.

The steel cage maintains roller alignment, reducing friction and extending operational life.
With a maximum speed of 1200 rpm, it performs reliably in demanding industrial applications.

23072 CC/W33VW532 Bearing operates efficiently in temperatures ranging from -30° to 200°C.
Its lubrication groove and hole design ensure consistent performance, even under heavy loads.

Application

Industrial Uses of 23072 CC/W33VW532 Bearing
This bearing is commonly used in heavy machinery like crushers and mining equipment, where its double-row design handles high radial loads with ease. The spherical rollers also accommodate misalignment, making it reliable in rugged environments.

Where Is 23072 CC/W33VW532 Bearing Used?
You’ll often find it in large industrial fans and paper mill machinery, thanks to its robust construction and high load capacity. The chrome steel rollers ensure long service life even under continuous operation.

Built for Heavy-Duty Use: 23072 CC/W33VW532 Bearing
Ideal for gearboxes and wind turbines, this bearing’s open design allows for efficient lubrication, reducing wear over time. Its wide temperature range makes it suitable for both hot and cold working conditions.

Automotive vs Aerospace: Applications of 23072 CC/W33VW532 Bearing
In automotive applications, it supports large drivetrain components, while in aerospace, it’s used in ground support equipment. The high static load capacity ensures stability in both sectors.

Practical Applications of 23072 CC/W33VW532 Bearing
For conveyor systems in ports and steel plants, this bearing’s durability and load handling are key. The steel cage adds strength, making it a dependable choice for high-impact environments.
