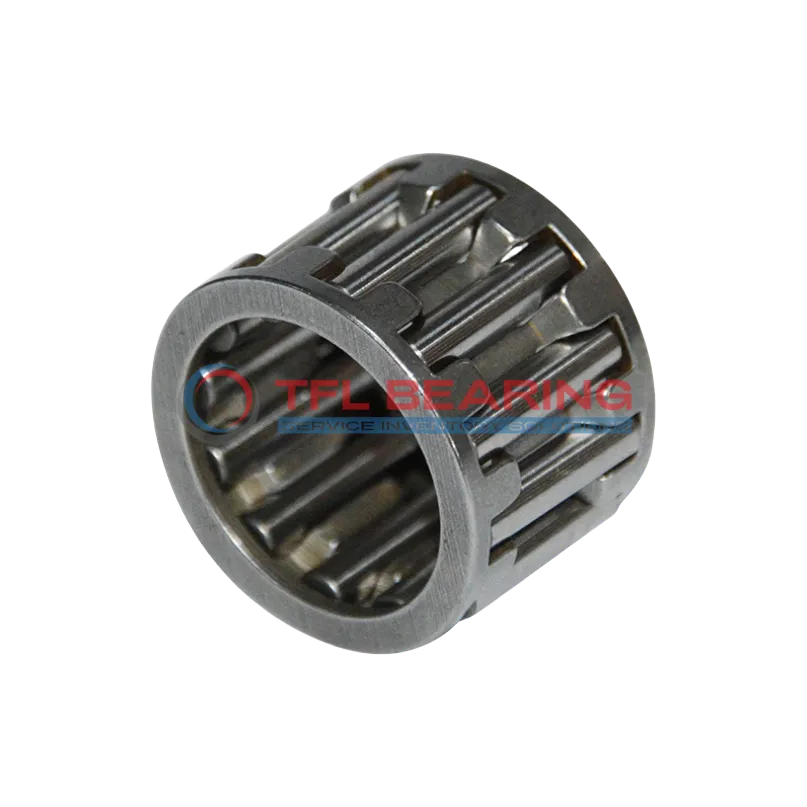

Needle Roller And Cage Assemblies K22X26X10

Needle Roller And Cage Assemblies K22X26X10

The K22X26X10 is a compact needle roller and cage assembly with a 22mm bore and 26mm outer diameter, built from sturdy steel. It handles radial loads up to 2048 lbf and spins smoothly at speeds up to 20400 RPM.
Its single-row design with a steel cage ensures reliable performance in tight spaces. The assembly works well in temperatures ranging from -30°C to 110°C.
This model is interchangeable with INA bearings, making it a practical choice for replacements. Ideal for applications like gear pumps or small engines where space is limited.
Weighing just 7.5g, it’s lightweight yet durable. Compliant with RoHS standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number K22X26X10
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 22 mm
  • Outer Dia 26 mm
  • Width 10 mm
  • System of Measurement Metric
  • Roller Bearing Type Needle
  • Construction Single Row
  • Series K Series
  • Cage Material Steel
  • Needle Material Steel
  • Dynamic Radial Load 2048 lbf
  • Static Radial Load 3015 lbf
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • Max Speed 20400 rpm
  • Weight 7.5 g

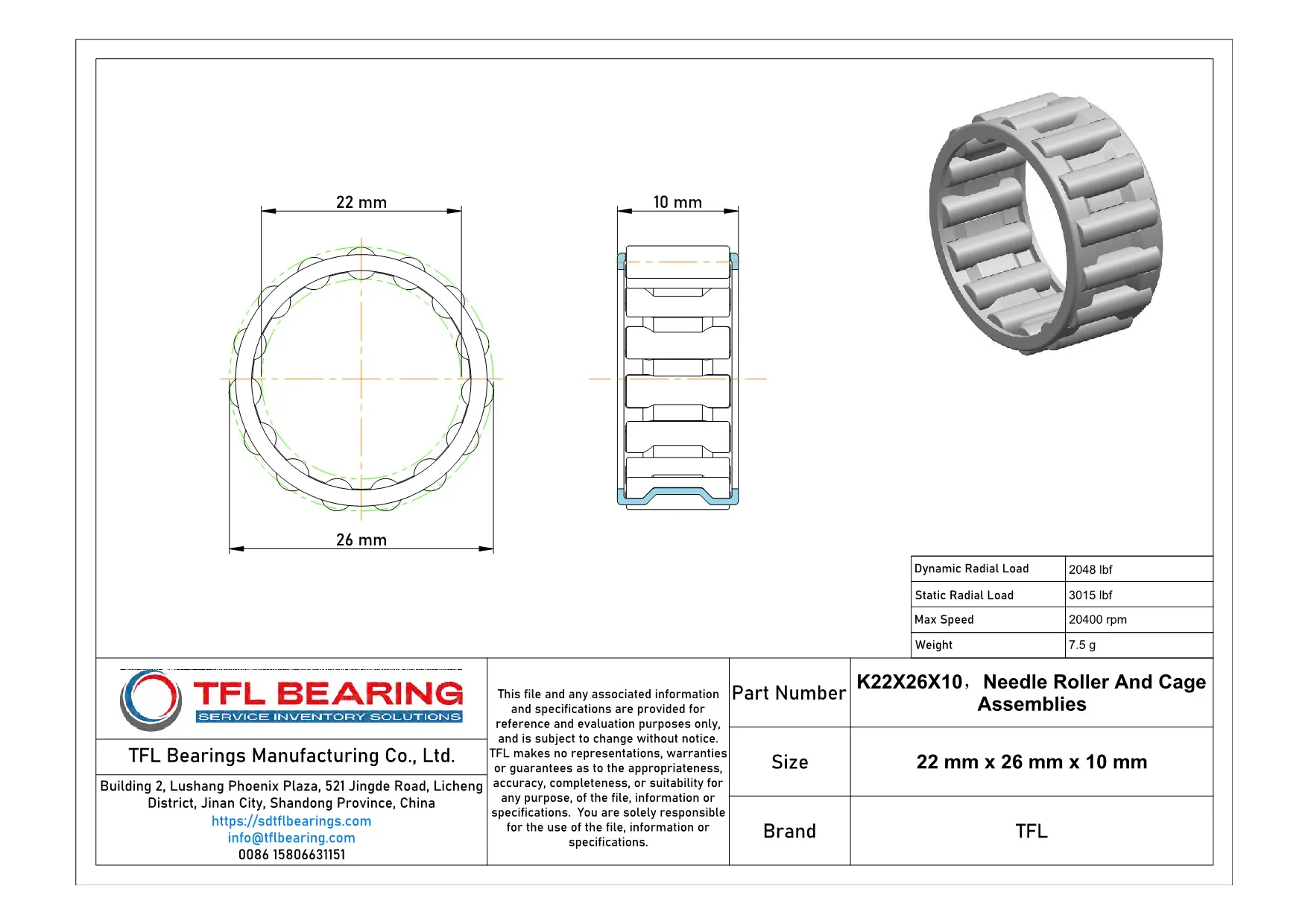

Needle Roller And Cage Assemblies K22X26X10 dimension drawing
Download DWG Download PDF

Features

How Does K22X26X10 Bearing Achieve High-Speed Performance?
K22X26X10 Bearing is built with steel needles and cage, ensuring durability and smooth operation at high speeds.
Its dynamic radial load capacity of 2048 lbf makes it suitable for demanding applications.
The compact design, with a width of just 10 mm, allows for easy integration into tight spaces.
With a maximum speed of 20,400 rpm, it delivers reliable performance in high-speed environments.
Why Choose K22X26X10 Bearing for Precision Tasks?
K22X26X10 Bearing’s needle roller design provides precise motion control, ideal for intricate machinery.
The steel construction offers excellent resistance to wear, maintaining accuracy over time.
Its static radial load capacity of 3015 lbf ensures stability under heavy loads.
The temperature range of -30° to 110°C makes it versatile for various operating conditions.
Engineered for Efficiency: K22X26X10 Bearing
K22X26X10 Bearing’s single-row design reduces friction, enhancing energy efficiency.
The steel cage and needles work together to minimise vibration and noise.
Weighing only 7.5 g, it is lightweight yet robust for its size.
Its compliance with RoHS standards ensures environmental safety.
Structural Advantages of K22X26X10 Bearing
K22X26X10 Bearing features a precise needle roller arrangement for optimal load distribution.
The steel materials provide strength and longevity, even in high-stress applications.
Its outer diameter of 26 mm and bore diameter of 22 mm offer a balanced design.
The K series construction ensures compatibility with industry-standard components.
How Is K22X26X10 Bearing Engineered for Reliability?
K22X26X10 Bearing’s steel needles and cage are designed for consistent performance under load.
The dynamic radial load rating of 2048 lbf highlights its capability in tough conditions.
Its compact width of 10 mm makes it ideal for space-constrained applications.
The high-speed capability of 20,400 rpm ensures it meets rigorous operational demands.

Application

Industrial Uses of K22X26X10 Bearing
K22X26X10 Bearing is commonly used in industrial gearboxes, where its compact design and high load capacity make it ideal for tight spaces. The steel construction ensures durability even in demanding environments.
In automotive applications, K22X26X10 Bearing fits well in transmission systems, providing smooth rotation under high speeds. Its metric sizing makes it a versatile choice for various vehicle models.
For automation equipment, K22X26X10 Bearing offers reliable performance in robotic arms and conveyor systems. The high max speed rating ensures it can handle rapid movements without issues.
In consumer electronics, K22X26X10 Bearing is found in printers and small appliances, where its lightweight design and precision are key. The steel needles provide long-lasting performance even with frequent use.
