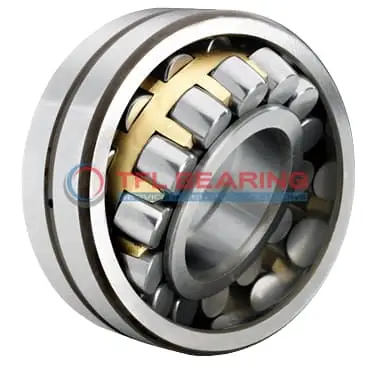

23060 CAC/C08W507 Double Row Spherical Roller Bearing

23060 CAC/C08W507 Double Row Spherical Roller Bearing

The 23060 CAC/C08W507 is a double-row spherical roller bearing with a 300mm bore and 460mm outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 484238 lbf and operates smoothly at speeds up to 1500 RPM.

Its brass cage enhances durability, while the open design allows for easy lubrication. The bearing performs reliably in temperatures ranging from -30°C to 200°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for heavy-duty applications like industrial gearboxes or mining equipment where high radial loads are common.

Weighing 71.5kg, it’s built for robust performance. Compliant with RoHS and REACH standards for safe and sustainable use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 23060 CAC/C08W507
  • Brand TFL
  • Interchangeable SKF
  • Size 300 x 460 x 118 mm
  • Bore Dia 300 mm
  • Bore Dia Tolerance -0.035mm to 0
  • Outer Dia 460 mm
  • Outer Dia Tolerance -0.045mm to 0
  • Width 118 mm
  • Width Tolerance -0.1mm to 0
  • Shoulder Dia Of Inner Ring 352 mm
  • Shoulder/Recess Dia Of Outer Ring 414 mm
  • Width Of Lubrication Groove 16.7 mm
  • Diameter Of Lubrication Hole 9 mm
  • Chamfer Dimension min.4 mm
  • System of Measurement Metric
  • Radial run-out P5
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 484238 lbf
  • Static Radial Load 75311 lbf
  • Max Speed 1500 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance CN
  • RoHs Compliant
  • REACH Compliant
  • Weight 71.5 kg
  • Price （US$） US$1,950.98

Features

Performance Features of 23060 CAC/C08W507 Bearing

23060 CAC/C08W507 Bearing is built with chrome steel rings and rollers, offering excellent resistance to combined loads.
Its dynamic radial load capacity reaches 484238 lbf, ensuring robust performance in heavy-duty applications.

The brass cage maintains roller alignment, reducing friction and extending operational life.
With a maximum speed of 1500 rpm, it delivers reliable performance under demanding conditions.

23060 CAC/C08W507 Bearing operates efficiently in temperatures ranging from -30° to 200°C.
Its double-row spherical design accommodates misalignment, enhancing durability in varied applications.

The lubrication groove and hole design ensure consistent lubrication, reducing maintenance needs.
23060 CAC/C08W507 Bearing’s precision construction meets P5 radial run-out standards for smooth operation.

Application

Industrial Uses of 23060 CAC/C08W507 Bearing
23060 CAC/C08W507 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles combined loads effectively. The brass cage ensures smooth operation even under high stress.

What Makes 23060 CAC/C08W507 Bearing a Preferred Choice?
In mining equipment, 23060 CAC/C08W507 Bearing’s large bore and high dynamic load capacity make it ideal for conveyor systems. Its chrome steel construction offers durability in harsh environments.

Built for Heavy-Duty Use: 23060 CAC/C08W507 Bearing
For wind turbines, 23060 CAC/C08W507 Bearing provides reliable performance with its spherical roller design, accommodating misalignment. The lubrication groove ensures consistent operation at high speeds.

Automotive vs Aerospace: Applications of 23060 CAC/C08W507 Bearing
In large trucks, 23060 CAC/C08W507 Bearing supports axles and gearboxes, while in aerospace, its precision fits landing gear systems. The wide temperature range suits both applications.

Perfect Fit for Automation: 23060 CAC/C08W507 Bearing
23060 CAC/C08W507 Bearing works well in robotic arms, where its high load capacity and smooth rotation enhance precision. The open seal design allows for easy maintenance in automated systems.
