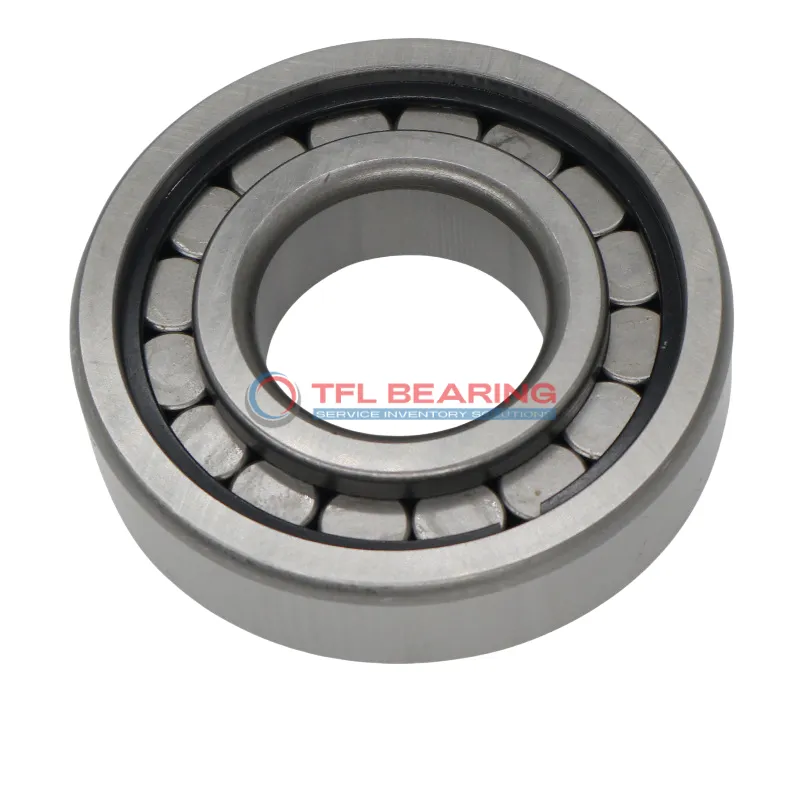

Single Row Full Complement Cylindrical Roller Bearings NCF 2926 CV

Single Row Full Complement Cylindrical Roller Bearings NCF 2926 CV

The NCF 2926 CV is a single row full complement cylindrical roller bearing with a 130mm bore and 180mm outer diameter, built from sturdy chrome steel. It handles combined loads up to 46125 lbf and runs smoothly at speeds up to 2000 RPM.

Its full complement design eliminates the need for a cage, offering higher load capacity and durability. The open seal allows easy lubrication with grease or oil.

This bearing suits applications with high radial loads and moderate axial displacement, such as industrial gearboxes or heavy machinery. It works well in temperatures from -30°C to 110°C.

Weighing 2.33kg, it’s a robust choice for demanding environments. Compliant with RoHS and REACH standards, it’s interchangeable with SKF bearings for easy replacement.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number NCF 2926 CV
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 130 mm
  • Bore Dia Tolerance -0.025mm to 0
  • Outer Dia 180 mm
  • Outer Dia Tolerance -0.025mm to 0
  • Width 30 mm
  • Width Tolerance -0.25mm to 0
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • For Load Direction Combined
  • Construction Single Row Full Complement
  • Inner Ring Type With Inner Ring
  • Seal Type Open
  • Shoulder Dia Of Inner Ring 147 mm
  • Shoulder Dia Outer Ring 161 mm
  • Raceway Diameter Outer Ring 167.1 mm
  • Chamfer Dimension r1,2(min.) 1.5 mm
  • Chamfer Dimension r3,4(min.) 1.1 mm
  • Permissible Axial Displacement(max.) 2 mm
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Full complement of rollers (no cage)
  • Dynamic Radial Load 46125 lbf
  • Static Radial Load 81000 lbf
  • Max Speed 2000 rpm
  • Lubrication Grease, Oil
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 2.33 kg
Single Row Full Complement Cylindrical Roller Bearings NCF 2926 CV dimension drawing
Download DWG Download PDF

Features

Performance Features of NCF 2926 CV Bearing

NCF 2926 CV Bearing is built with a full complement of chrome steel rollers, offering high load capacity without a cage.
This design allows for maximum roller count, enhancing its dynamic radial load capacity up to 46125 lbf.

The single-row cylindrical construction ensures smooth operation under combined loads, making it versatile for various applications.
With a maximum speed of 2000 rpm, it balances performance and durability in demanding conditions.

NCF 2926 CV Bearing operates efficiently in temperatures ranging from -30° to 110°C, suitable for diverse environments.
Its open seal type simplifies maintenance, while the chrome steel materials resist wear and prolong service life.

Application

Industrial Uses of NCF 2926 CV Bearing
NCF 2926 CV Bearing is commonly used in heavy machinery like industrial gearboxes and large conveyor systems, where its full complement design handles high radial loads efficiently. The open seal type allows for easy lubrication, making it suitable for demanding environments.

In automotive applications, NCF 2926 CV Bearing supports components such as wheel hubs and drivetrain systems, thanks to its robust chrome steel construction. Its metric sizing ensures compatibility with a variety of vehicle designs.

For automation equipment, NCF 2926 CV Bearing provides reliable performance in robotic arms and assembly lines, where precision and durability are key. The absence of a cage allows for higher load capacity, ideal for continuous operation.

Where Is NCF 2926 CV Bearing Used?
NCF 2926 CV Bearing finds its place in wind turbines, where its ability to handle combined loads ensures smooth operation under varying conditions. The grease or oil lubrication options make it adaptable to different maintenance schedules.

In construction machinery, NCF 2926 CV Bearing excels in excavators and cranes, offering stability under heavy loads. Its wide temperature range makes it reliable in both hot and cold climates.
