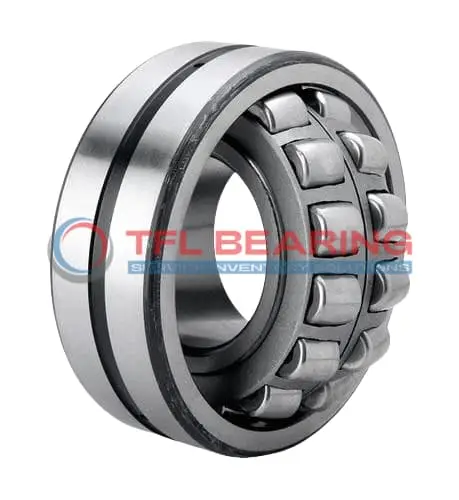

23052 CC/C08W33 Double Row Spherical Roller Bearing

23052 CC/C08W33 Double Row Spherical Roller Bearing

The 23052 CC/C08W33 is a double-row spherical roller bearing with a 260mm bore and 400mm outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 376555 lbf and runs smoothly at speeds up to 1700 RPM.

Its spherical roller design allows for slight misalignment, while the steel cage ensures durability under heavy loads. The bearing operates in temperatures from -30°C to 200°C, making it versatile for various conditions.

This model is interchangeable with SKF bearings, offering a reliable replacement option. Ideal for heavy machinery like crushers or industrial gearboxes where high radial loads are present.

Weighing 46.5kg, it’s built for robust performance. Compliant with RoHS and REACH standards, it’s a safe choice for demanding applications. The lubrication groove and hole simplify maintenance, extending its service life.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 23052 CC/C08W33
  • Brand TFL
  • Interchangeable SKF
  • Size 260 x 400 x 104 mm
  • Bore Dia 260 mm
  • Bore Dia Tolerance -0.035mm to 0
  • Outer Dia 400 mm
  • Outer Dia Tolerance -0.04mm to 0
  • Width 104 mm
  • Width Tolerance -0.1mm to 0
  • Shoulder Dia Of Inner Ring 295 mm
  • Shoulder/Recess Dia Of Outer Ring 360 mm
  • Width Of Lubrication Groove 16.7 mm
  • Diameter Of Lubrication Hole 9 mm
  • Chamfer Dimension min.4 mm
  • System of Measurement Metric
  • Radial run-out P5
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 376555 lbf
  • Static Radial Load 573263 lbf
  • Max Speed 1700 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance CN
  • RoHs Compliant
  • REACH Compliant
  • Weight 46.5 kg

Features

How Does 23052 CC/C08W33 Bearing Handle Heavy Loads?

23052 CC/C08W33 Bearing is built with chrome steel rings and rollers, offering excellent resistance to heavy radial and thrust loads.
Its dynamic radial load capacity reaches 376555 lbf, making it suitable for demanding industrial applications.
The double-row spherical roller design ensures smooth operation even under misalignment conditions.
With a maximum speed of 1700 rpm, it delivers reliable performance in high-speed environments.

What Makes 23052 CC/C08W33 Bearing Suitable for High-Temperature Applications?

23052 CC/C08W33 Bearing operates effectively in temperatures ranging from -30° to 200 °C, maintaining performance in extreme conditions.
The chrome steel construction provides durability and resistance to thermal expansion.
Its steel cage ensures stability, even under high thermal stress.
Regular lubrication further enhances its ability to withstand high temperatures.

Engineered for Precision: 23052 CC/C08W33 Bearing

23052 CC/C08W33 Bearing features a double-row spherical roller design, ensuring precise alignment and reduced vibration.
The P5 radial run-out tolerance guarantees high accuracy in demanding applications.
Its cylindrical bore type simplifies installation and improves fitment accuracy.
The lubrication groove and hole design ensure consistent performance over time.

Radial vs Thrust Bearings: The Edge of 23052 CC/C08W33 Bearing

23052 CC/C08W33 Bearing excels in handling both radial and thrust loads, thanks to its double-row spherical roller design.
The combined load capacity makes it versatile for various industrial uses.
Its static radial load capacity of 573263 lbf ensures long-term reliability.
The open seal type allows for easy maintenance and lubrication.

Why Choose 23052 CC/C08W33 Bearing for Precision Tasks?

23052 CC/C08W33 Bearing’s P5 radial run-out tolerance ensures high precision in critical applications.
The chrome steel rollers and rings provide consistent performance under heavy loads.
Its spherical roller design compensates for misalignment, reducing wear.
The lubrication groove design ensures smooth operation and extended service life.

Application

Industrial Uses of 23052 CC/C08W33 Bearing
23052 CC/C08W33 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles high radial and axial loads. The spherical roller construction also compensates for misalignment, ensuring smooth operation in demanding environments.

Where Is 23052 CC/C08W33 Bearing Used?
You’ll often find 23052 CC/C08W33 Bearing in mining equipment, where its robust chrome steel construction withstands harsh conditions. The lubrication groove design makes maintenance easier, even in remote locations.

Built for Heavy-Duty Use: 23052 CC/C08W33 Bearing
23052 CC/C08W33 Bearing excels in paper mill machinery, supporting large rollers under constant load. Its high dynamic radial load capacity ensures reliable performance over long periods.

Automotive vs Aerospace: Applications of 23052 CC/C08W33 Bearing
In automotive applications, 23052 CC/C08W33 Bearing is used in large trucks for axle support. For aerospace, it’s less common but may appear in ground support equipment due to its load capacity.

Practical Applications of 23052 CC/C08W33 Bearing
23052 CC/C08W33 Bearing is ideal for wind turbine gearboxes, where its temperature range suits both cold and hot climates. The steel cage provides durability against constant rotational stress.
