TS (Single Row Tapered Roller Bearings) (Imperial) 2582-2526X

TS (Single Row Tapered Roller Bearings) (Imperial) 2582-2526X

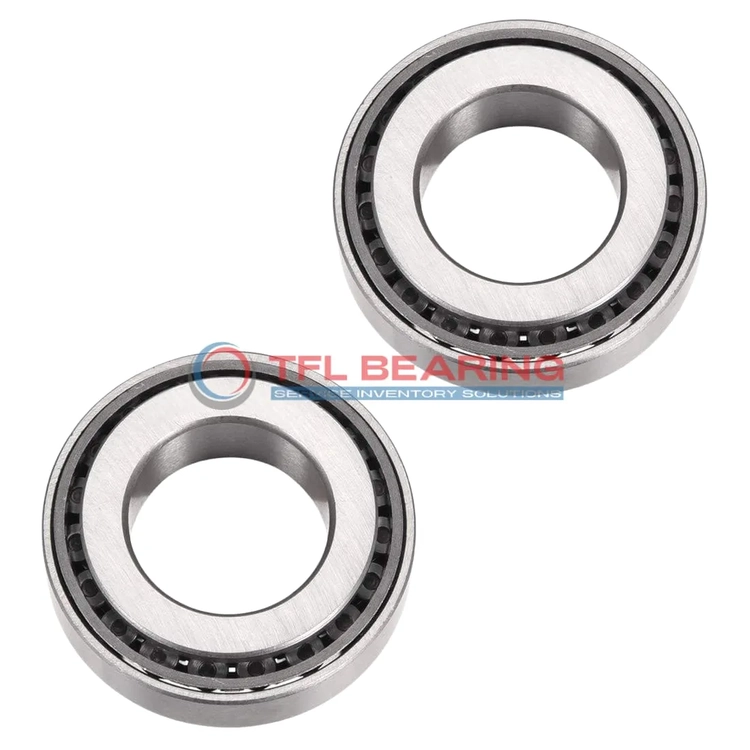

The 2582-2526X is a single-row tapered roller bearing with a 1.25″ bore and 2.8346″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 18800 lbf radially and 2280 lbf in thrust, making it versatile for various applications.

Its open design allows for easy lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures ranging from -30°C to 110°C, suitable for demanding environments.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for use in gearboxes, axles, or industrial machinery where combined loads are common.

Weighing just 1.1 lb, it’s lightweight yet robust. Compliant with RoHS and REACH standards, it’s a safe choice for various industries. The ABEC-1 rating ensures consistent performance for general applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 2582-2526X
  • Brand TFL
  • Interchangeable Timken
  • Size 1.25" x 2.8346" x 0.9375"
  • Bore Dia 1.25"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 2.8346"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 0.9983"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.75"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 0.9375"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.14"
  • Cup Backface ToClear Radius 0.08"
  • Cone Frontface Backing Diameter 1.48"
  • Cone Backface Backing Diameter 1.73"
  • Cup Frontface Backing Diameter 2.60"
  • Cup Backface Backing Diameter 2.40"
  • Cage Cone Frontface Clearance 0.06"
  • Cage Cone Backface Clearance 0.02"
  • Effective Center Location -0.34"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 2582
  • Cup Part Number 2526X
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 2500
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 18800 lbf
  • Static Radial Load 21200 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 4880 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 2280 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 1.1 lb

Features

How Does 2582-2526X Bearing Handle Combined Loads?

2582-2526X Bearing is built with chrome steel rings and rollers, offering strong resistance to both radial and thrust loads.
Its dynamic radial load capacity reaches 18,800 lbf, ensuring reliable performance in demanding conditions.
The steel cage maintains proper roller alignment, reducing friction and extending service life.
With a temperature range of -30° to 110°C, it performs well in various environments.

Why Choose 2582-2526X Bearing for Precision Tasks?

2582-2526X Bearing features precise tolerances, with bore diameter accuracy within +0.005″ to 0.
Its tapered roller design ensures smooth operation under combined loads, ideal for precision applications.
The chrome steel construction provides durability and resistance to wear.
Standard radial clearance options allow for flexibility in different operational conditions.

Engineered for Reliability: 2582-2526X Bearing

2582-2526X Bearing’s single-row construction simplifies installation while maintaining high load capacity.
The steel cage and chrome steel rollers enhance durability, even under heavy loads.
With a static radial load rating of 21,200 lbf, it offers dependable performance.
Its ABEC-1 rating ensures consistent quality for various industrial uses.

Application

Industrial Uses of 2582-2526X Bearing
2582-2526X Bearing is commonly used in heavy machinery, such as construction equipment and agricultural gear, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability even in tough working conditions.

In automotive applications, 2582-2526X Bearing fits well in wheel hubs and differential systems, providing reliable performance under varying loads. Its inch sizing makes it compatible with many North American vehicle models.

For conveyor systems, 2582-2526X Bearing’s open design allows for easy lubrication, extending its service life in continuous operation. The steel cage adds extra strength, making it suitable for high-load scenarios.

What Makes 2582-2526X Bearing a Preferred Choice?
2582-2526X Bearing works well in industrial fans, where its tapered rollers manage both radial and axial forces smoothly. The standard radial clearance offers flexibility for different installation needs.

In power transmission systems, 2582-2526X Bearing supports shafts and gears, ensuring stable rotation under heavy loads. Its ABEC-1 rating provides a balance of precision and cost-effectiveness for general machinery.

Built for Heavy-Duty Use: 2582-2526X Bearing
2582-2526X Bearing is ideal for mining equipment, where its robust design withstands harsh environments. The chrome steel rollers resist wear, reducing maintenance frequency.

For pump systems, 2582-2526X Bearing’s combined load capacity ensures reliable operation under pressure. The open seal type simplifies lubrication, keeping performance consistent over time.
