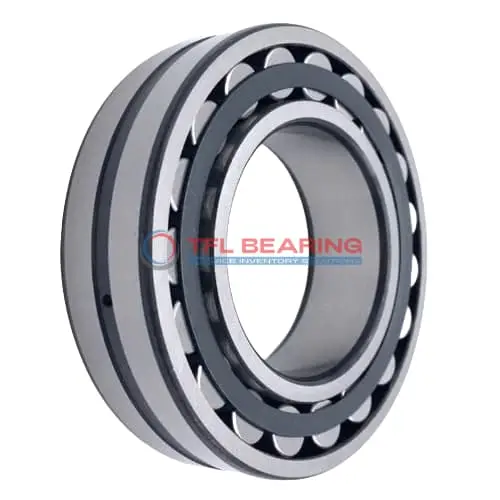

23048 K W33 MB Double Row Spherical Roller Bearing

The 23048 K W33 MB is a double-row spherical roller bearing with a 240mm bore and 360mm outer diameter, built from sturdy chrome steel. It manages combined loads up to 301244 lbf and runs smoothly at speeds up to 1900 RPM.

Its brass cage and open design ensure durability, while the tapered bore (1:12) simplifies mounting. The bearing includes lubrication grooves and holes for easy maintenance.

Suitable for heavy-duty applications like industrial gearboxes or mining equipment, it operates in temperatures from -30°C to 200°C. Compliant with RoHS and REACH standards, it’s a reliable choice for demanding environments.

Weighing 32.5kg, this bearing is robust yet designed for efficient performance. Its spherical rollers accommodate misalignment, making it versatile for various machinery setups.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number 23048 K W33 MB
Brand TFL
Interchangeable SKF
Size 240 x 360 x 92 mm
Bore Dia 240 mm
Bore Dia Tolerance +0.04mm to 0
Outer Dia 360 mm
Outer Dia Tolerance -0.04mm to 0
Width 92 mm
Width Tolerance -0.08mm to 0
Shoulder Dia Of Inner Ring 271 mm
Shoulder/Recess Dia Of Outer Ring 326 mm
Width Of Lubrication Groove 13.9 mm
Diameter Of Lubrication Hole 7.5 mm
Chamfer Dimension min.3 mm
System of Measurement Metric
Radial run-out Standard
Bearing Type Roller
Roller Bearing Type Spherical
Bore Type Taper 1:12
For Load Direction Combined
Construction Double Row
Seal Type Open
Ring Material Chrome Steel
Roller Material Chrome Steel
Cage Material Brass
Dynamic Radial Load 301244 lbf
Static Radial Load 467603 lbf
Max Speed 1900 rpm
Lubrication Required
Temperature Range -30° to 200 °C
Radial Clearance CN
RoHs Compliant
REACH Compliant
Weight 32.5 kg
Price （US$） US$569.34

Features

Performance Features of 23048 K W33 MB Bearing

23048 K W33 MB Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 301244 lbf, ensuring reliable operation in heavy-duty applications.

The brass cage maintains roller alignment, reducing friction and extending service life.
With a maximum speed of 1900 rpm, it delivers consistent performance under demanding conditions.

23048 K W33 MB Bearing operates efficiently in temperatures ranging from -30° to 200°C.
Its tapered bore design simplifies installation, making it suitable for various industrial uses.

Application

Industrial Uses of 23048 K W33 MB Bearing
23048 K W33 MB Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles both radial and axial loads efficiently. The brass cage ensures smooth operation even under high stress.

In wind turbine applications, 23048 K W33 MB Bearing supports the main shaft, offering reliable performance in varying weather conditions. Its tapered bore design simplifies installation and maintenance.

For mining equipment, 23048 K W33 MB Bearing’s high dynamic load capacity makes it ideal for conveyor systems and excavators. The lubrication groove extends its service life in dusty environments.

Automotive vs Aerospace: Applications of 23048 K W33 MB Bearing
In automotive heavy-duty trucks, 23048 K W33 MB Bearing is used in wheel hubs and transmissions due to its robust construction. The chrome steel rollers provide durability under constant vibration.

Aerospace applications benefit from 23048 K W33 MB Bearing’s ability to handle combined loads in auxiliary systems. Its temperature range ensures performance in extreme conditions.

Built for Heavy-Duty Use: 23048 K W33 MB Bearing
23048 K W33 MB Bearing excels in steel mills, where its high static radial load capacity supports rolling machinery. The open seal design allows for easy re-lubrication during operation.

In paper manufacturing, this bearing’s spherical rollers accommodate misalignment in drying cylinders. The metric sizing ensures compatibility with European industrial standards.
