TS (Single Row Tapered Roller Bearings) (Imperial) 5356-5335V

TS (Single Row Tapered Roller Bearings) (Imperial) 5356-5335V

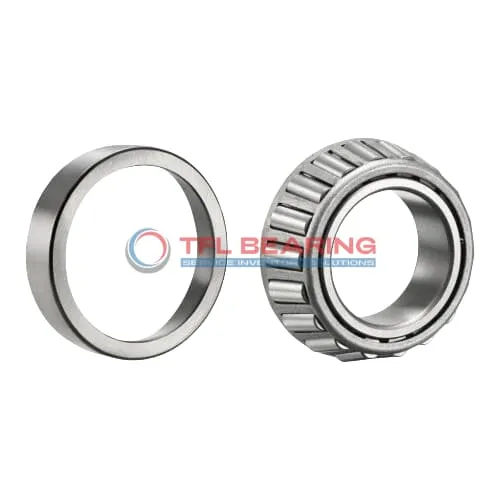

The 5356-5335V is a single-row tapered roller bearing with a 1.75″ bore and 4.0625″ outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 47700 lbf radially and 6280 lbf thrust, suitable for demanding applications.

Its open design allows for easy lubrication, while the steel cage ensures durability under heavy use. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, making it a practical choice for replacements. It’s ideal for machinery like gearboxes or axles where combined loads are common.

Weighing 4.100 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s safe for various industrial uses.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 5356-5335V
  • Brand TFL
  • Interchangeable Timken
  • Size 1.75" x 4.0625" x 1.719"
  • Bore Dia 1.75"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 4.0625"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.751"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.4375"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.719"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.050"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 2.2"
  • Cone Backface Backing Diameter 2.28"
  • Cup Frontface Backing Diameter 3.85"
  • Cup Backface Backing Diameter 3.50"
  • Cage Cone Frontface Clearance 0.07"
  • Cage Cone Backface Clearance 0.08"
  • Effective Center Location -0.63"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 5356
  • Cup Part Number 5335V
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 5300
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 47700 lbf
  • Static Radial Load 60100 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 12400 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 6280 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 4.100 lb

Features

Performance Features of 5356-5335V Bearing

5356-5335V Bearing is crafted with chrome steel rings and rollers, offering robust resistance to combined loads.
Its dynamic radial load capacity reaches 47,700 lbf, ensuring dependable performance in heavy-duty applications.

The steel cage maintains roller alignment, reducing friction and enhancing durability.
With a temperature range of -30° to 110°C, it performs reliably in varied conditions.

5356-5335V Bearing requires lubrication, ensuring smooth operation and extended service life.
Its standard radial clearance options provide flexibility for different operational needs.

Application

Industrial Uses of 5356-5335V Bearing
5356-5335V Bearing is commonly used in heavy machinery like construction equipment, where its tapered roller design handles combined loads efficiently. The chrome steel construction ensures durability even in demanding environments.

In automotive applications, 5356-5335V Bearing fits well in wheel hubs and differential systems, providing reliable performance under varying loads. Its imperial sizing makes it a straightforward replacement for many North American vehicle models.

For industrial fans and pumps, 5356-5335V Bearing’s open design allows easy lubrication, extending service life in continuous operation. The steel cage adds stability, reducing wear over time.

Where Is 5356-5335V Bearing Used?
You’ll often find 5356-5335V Bearing in agricultural machinery, where its robust design copes with dirt and debris. The standard radial clearance ensures smooth rotation even under heavy loads.

In conveyor systems, 5356-5335V Bearing supports high radial loads while maintaining alignment. Its compatibility with Timken models makes it a versatile choice for maintenance teams.

Built for Heavy-Duty Use: 5356-5335V Bearing
5356-5335V Bearing excels in mining equipment, where its tapered rollers manage both radial and thrust forces. The ABEC-1 rating balances precision and cost-effectiveness for industrial applications.

For gearboxes, 5356-5335V Bearing’s effective center location helps maintain proper gear alignment. The chrome steel rollers resist wear, even in high-torque scenarios.

Automotive vs Aerospace: Applications of 5356-5335V Bearing
In automotive drivetrains, 5356-5335V Bearing handles combined loads from acceleration and cornering. Its imperial measurements simplify integration into existing designs.

For ground support equipment in aerospace, 5356-5335V Bearing provides reliable performance without the need for specialised tooling. The temperature range suits most operational environments.
