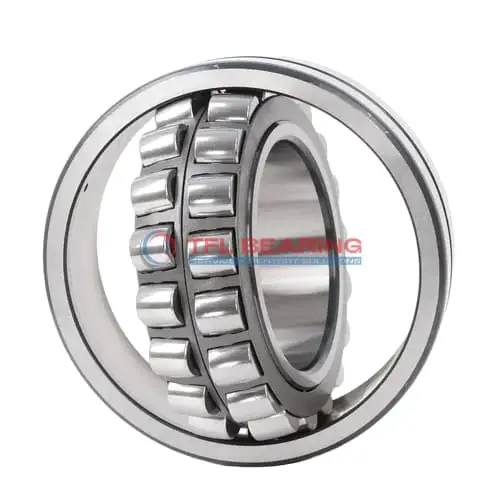

22326CY/C3 Double Row Spherical Roller Bearing

22326CY/C3 Double Row Spherical Roller Bearing

The 22326CY/C3 is a double-row spherical roller bearing with a 130mm bore and 280mm outer diameter, built from sturdy chrome steel. It manages combined loads up to 264825 lbf and runs smoothly at speeds up to 590 RPM.

Its brass cage and open design allow for easy lubrication, while the spherical rollers handle misalignment well. The bearing operates in temperatures from -30°C to 200°C, making it versatile for various conditions.

This model is interchangeable with SKF bearings, offering a reliable replacement option. Ideal for heavy-duty applications like industrial gearboxes or mining equipment where high radial loads are present.

Weighing 29kg, it’s robust and durable for demanding environments. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 22326CY/C3
  • Brand TFL
  • Interchangeable SKF
  • Size 130 x 280 x 93 mm
  • Bore Dia 130 mm
  • Bore Dia Tolerance -0.025mm to 0
  • Outer Dia 280 mm
  • Outer Dia Tolerance -0.035mm to 0
  • Width 93 mm
  • Width Tolerance -0.08mm to 0
  • Shoulder Dia Of Inner Ring 159 mm
  • Shoulder/Recess Dia Of Outer Ring 246 mm
  • Width Of Lubrication Groove 16.7 mm
  • Diameter Of Lubrication Hole 9 mm
  • Chamfer Dimension min.4 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 264825 lbf
  • Static Radial Load 296748 lbf
  • Max Speed 590 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance C3
  • RoHs Compliant
  • REACH Compliant
  • Weight 29 kg
  • Price （US$） US$297.00

Features

Performance Features of 22326CY/C3 Bearing

22326CY/C3 Bearing is built with chrome steel rings and rollers, offering excellent resistance to combined loads.
Its dynamic radial load capacity reaches 264825 lbf, making it suitable for heavy-duty applications.

The brass cage ensures proper roller alignment, reducing friction and enhancing durability.
With a maximum speed of 590 rpm, it maintains stable performance under demanding conditions.

22326CY/C3 Bearing operates efficiently in temperatures ranging from -30° to 200°C.
Its double-row spherical design accommodates misalignment, ensuring reliable operation in various settings.

The lubrication groove and hole design in 22326CY/C3 Bearing facilitate easy maintenance.
This feature helps extend the bearing’s service life and reduces downtime.

Application

Industrial Uses of 22326CY/C3 Bearing
22326CY/C3 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles both radial and axial loads efficiently. The brass cage ensures smooth operation even under high stress.

Where Is 22326CY/C3 Bearing Used?
You’ll often find 22326CY/C3 Bearing in mining equipment, where its robust construction withstands harsh conditions. Its C3 radial clearance allows for thermal expansion, making it ideal for high-temperature environments.

Built for Heavy-Duty Use: 22326CY/C3 Bearing
22326CY/C3 Bearing excels in construction equipment like cranes and excavators, thanks to its high dynamic load capacity. The chrome steel rollers provide durability, reducing maintenance needs over time.

Automotive vs Aerospace: Applications of 22326CY/C3 Bearing
In automotive applications, 22326CY/C3 Bearing supports heavy axles and gearboxes, while in aerospace, it’s used in landing gear systems. Its metric sizing ensures compatibility across various industries.

Practical Applications of 22326CY/C3 Bearing
22326CY/C3 Bearing is a reliable choice for wind turbines, where its spherical rollers accommodate misalignment. The open design simplifies lubrication, extending service life in demanding conditions.
