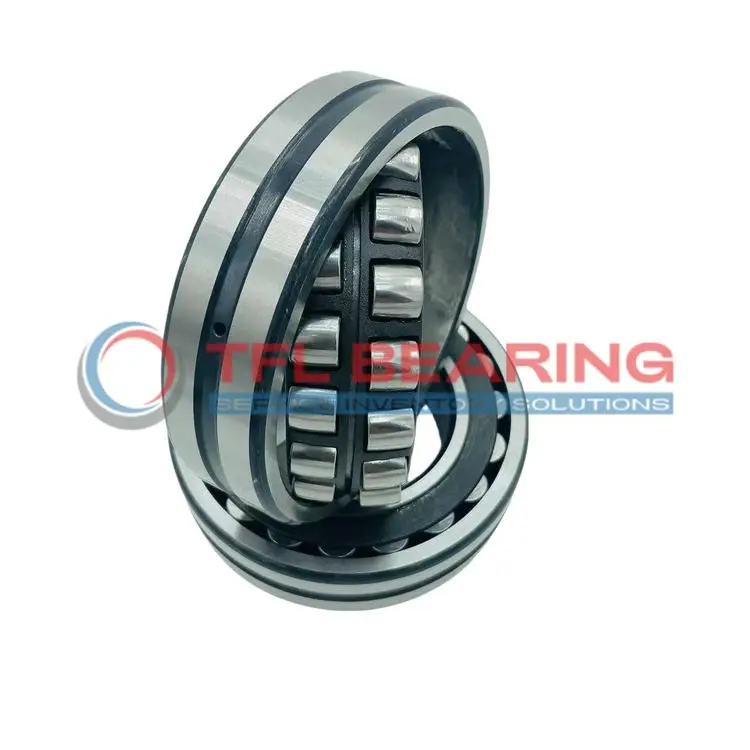

22326 CCJA/W33VA406 Double Row Spherical Roller Bearing

22326 CCJA/W33VA406 Double Row Spherical Roller Bearing

The 22326 CCJA/W33VA406 is a double-row spherical roller bearing with a 130mm bore and 280mm outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 264375 lbf and operates smoothly at speeds up to 2400 RPM.

Its open design and lubrication groove (16.7mm wide) make maintenance straightforward, while the steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 200°C.

This model is interchangeable with SKF bearings, offering a dependable replacement option. Suitable for heavy-duty applications like industrial gearboxes or mining equipment where high radial loads are present.

Weighing 29kg, it’s built for robust performance. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 22326 CCJA/W33VA406
  • Brand TFL
  • Interchangeable SKF
  • Size 130 x 280 x 93 mm
  • Bore Dia 130 mm
  • Bore Dia Tolerance -0.025mm to 0
  • Outer Dia 280 mm
  • Outer Dia Tolerance -0.035mm to 0
  • Width 93 mm
  • Width Tolerance -0.08mm to 0
  • Shoulder Dia Of Inner Ring 164 mm
  • Shoulder/Recess Dia Of Outer Ring 233 mm
  • Width Of Lubrication Groove 16.7 mm
  • Diameter Of Lubrication Hole 9 mm
  • Chamfer Dimension min.4 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 264375 lbf
  • Static Radial Load 296748 lbf
  • Max Speed 2400 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance CN
  • RoHs Compliant
  • REACH Compliant
  • Weight 29 kg
  • Price （US$） US$156.43

Features

Core Advantages of 22326 CCJA/W33VA406 Bearing

22326 CCJA/W33VA406 Bearing features a double-row spherical roller design, ideal for handling combined radial and axial loads.
Its chrome steel construction ensures durability, even under high dynamic radial loads of up to 264,375 lbf.

The lubrication groove and holes in 22326 CCJA/W33VA406 Bearing simplify maintenance, enhancing operational efficiency.
With a maximum speed of 2,400 rpm, it performs reliably in demanding industrial applications.

22326 CCJA/W33VA406 Bearing operates smoothly in temperatures ranging from -30°C to 200°C.
Its robust steel cage keeps the rollers aligned, reducing wear and extending service life.

Application

Industrial Uses of 22326 CCJA/W33VA406 Bearing
This bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles both radial and axial loads efficiently. The chrome steel construction ensures durability in harsh industrial environments.

Where Is 22326 CCJA/W33VA406 Bearing Used?
You’ll often find 22326 CCJA/W33VA406 Bearing in mining equipment, where its high load capacity and resistance to misalignment are crucial. Its lubrication groove design also simplifies maintenance in hard-to-reach areas.

Built for Heavy-Duty Use: 22326 CCJA/W33VA406 Bearing
In construction machinery, 22326 CCJA/W33VA406 Bearing supports components like conveyor rollers, thanks to its robust steel cage and high dynamic load rating. The wide temperature range makes it suitable for outdoor applications.

Automotive vs Aerospace: Applications of 22326 CCJA/W33VA406 Bearing
While 22326 CCJA/W33VA406 Bearing isn’t typically used in aerospace, it’s ideal for heavy vehicles like trucks and buses. Its combined load handling and metric sizing make it a reliable choice for automotive drivetrains.

Essential Roles of 22326 CCJA/W33VA406 Bearing
In wind turbines, 22326 CCJA/W33VA406 Bearing’s spherical roller design accommodates shaft misalignment, ensuring smooth operation. The high static radial load capacity also enhances reliability in renewable energy applications.
