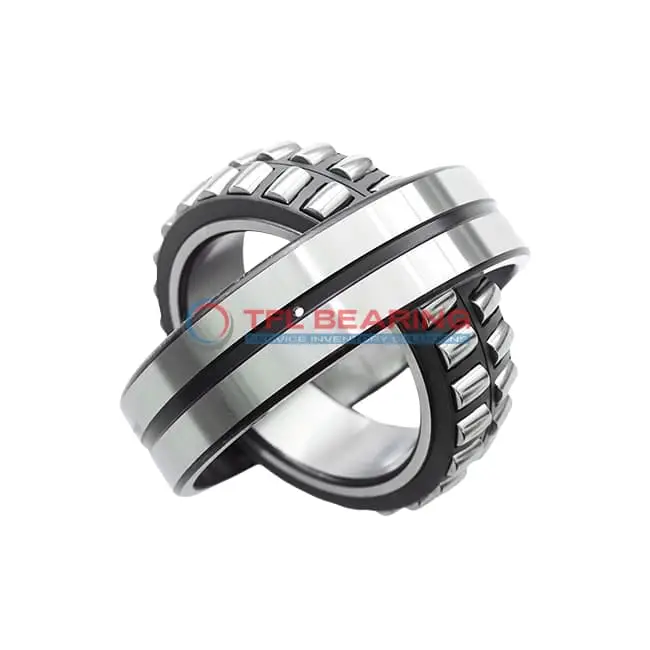

22322 CY C3 W22 Double Row Spherical Roller Bearing

22322 CY C3 W22 Double Row Spherical Roller Bearing

The 22322 CY C3 W22 is a double-row spherical roller bearing with a 110mm bore and 240mm outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 222336 lbf and operates smoothly at speeds up to 2800 RPM.

Its brass cage enhances durability, while the open design allows for easy lubrication through the 7.5mm holes. The bearing performs reliably in temperatures ranging from -30°C to 200°C.

With a C3 radial clearance, it accommodates slight misalignments, making it suitable for heavy-duty applications. Ideal for use in industrial machinery, gearboxes, or mining equipment where robust performance is needed.

Weighing 18kg, it’s built to handle demanding conditions while complying with RoHS and REACH standards.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 22322 CY C3 W22
  • Brand TFL
  • Interchangeable SKF
  • Size 110 x 240 x 80 mm
  • Bore Dia 110 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 240 mm
  • Outer Dia Tolerance -0.030mm to 0
  • Width 80 mm
  • Width Tolerance -0.08mm to 0
  • Shoulder Dia Of Inner Ring 143 mm
  • Shoulder/Recess Dia Of Outer Ring 204 mm
  • Width Of Lubrication Groove 13.9 mm
  • Diameter Of Lubrication Hole 7.5 mm
  • Chamfer Dimension min.3 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 222336 lbf
  • Static Radial Load 251786 lbf
  • Max Speed 2800 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance C3
  • RoHs Compliant
  • REACH Compliant
  • Weight 18 kg
  • Price （US$） US$208.62

Features

Performance Features of 22322 CY C3 W22 Bearing

22322 CY C3 W22 Bearing is built with chrome steel rings and rollers, offering high resistance to combined loads.
Its dynamic radial load capacity reaches 222336 lbf, making it suitable for heavy-duty applications.

The brass cage ensures smooth roller alignment, reducing friction and enhancing durability.
With a maximum speed of 2800 rpm, it delivers reliable performance in demanding conditions.

22322 CY C3 W22 Bearing operates efficiently in temperatures ranging from -30° to 200°C.
Its C3 radial clearance allows for thermal expansion, ensuring consistent operation.

The lubrication groove and hole design in 22322 CY C3 W22 Bearing simplify maintenance.
This feature ensures uniform lubrication, extending the bearing’s service life.

22322 CY C3 W22 Bearing’s double-row spherical design accommodates misalignment.
This makes it ideal for applications where shaft deflection or mounting errors may occur.

Application

Industrial Uses of 22322 CY C3 W22 Bearing
22322 CY C3 W22 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles both radial and axial loads efficiently. The brass cage ensures smooth operation even under high stress.

What Makes 22322 CY C3 W22 Bearing a Preferred Choice?
In mining equipment, 22322 CY C3 W22 Bearing’s high dynamic load capacity makes it ideal for conveyor systems and gearboxes. Its C3 radial clearance allows for thermal expansion in demanding environments.

Built for Heavy-Duty Use: 22322 CY C3 W22 Bearing
For wind turbines, 22322 CY C3 W22 Bearing’s spherical rollers compensate for misalignment, ensuring reliable performance. The chrome steel construction provides excellent resistance to wear and fatigue.

Automotive vs Aerospace: Applications of 22322 CY C3 W22 Bearing
In truck transmissions, 22322 CY C3 W22 Bearing supports high torque loads, while its temperature range suits aerospace auxiliary systems. The metric sizing ensures compatibility across industries.

Essential Roles of 22322 CY C3 W22 Bearing
22322 CY C3 W22 Bearing is vital in paper mills, where its lubrication groove extends service life. The open design simplifies maintenance in dusty or humid conditions.
