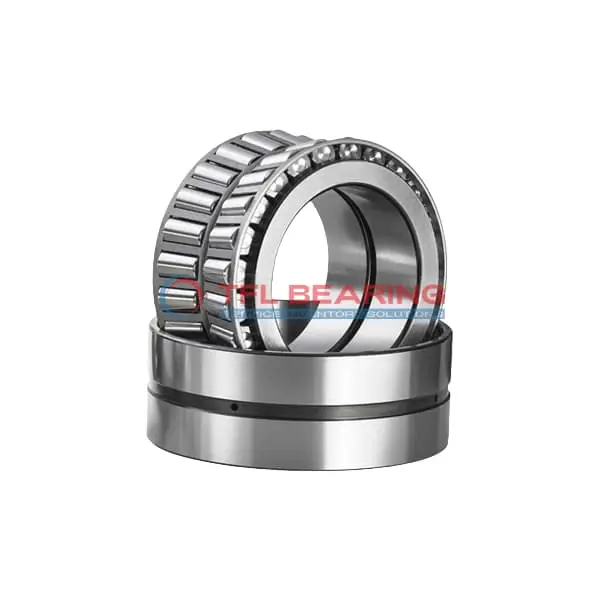

07100-S-07196D TDO (Two-Row Double-Outer Race) (Imperial)

07100-S-07196D TDO (Two-Row Double-Outer Race) (Imperial)

The 07100-S-07196D is a double-row tapered roller bearing with a 1-inch bore and 1.9687-inch outer diameter, built from sturdy chrome steel. It handles combined loads up to 11400 lbf and is designed for smooth operation in various conditions.

Its open design allows for easy lubrication, while the steel cage ensures durability. The bearing works well in temperatures from -30°C to 110°C, making it versatile for different environments.

This model is part of the 7000 series, featuring standard cups and a compact design. Ideal for applications like gearboxes or heavy machinery where combined loads are common.

Weighing just 0.59 lb, it’s lightweight yet robust. Compliant with RoHS and REACH standards for safe and reliable use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 07100-S-07196D
  • Brand TFL
  • Size 1" x 1.9687" x 0.5614"
  • Bore Dia 1"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 1.9687"
  • Outer Dia Tolerance +0.001" to 0
  • Double Cup Width 1"
  • Double Cup Width Tolerance +0.003" to -0.01
  • Cone Width 0.5614"
  • Cone Width Tolerance +0.002" to -0.01
  • Bearing Width Across Cups 1.3126"
  • Bearing Width Across Cups Tolerance +0.008" to 0
  • Cup Backface ToClear Radius 0.03"
  • Cone Backface Backing Diameter 1.24"
  • Cup Frontface Backing Diameter 1.85"
  • Cage Cone Backface Clearance 0"
  • Dynamic Radial Load 11400 lbf
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 07100-S
  • Cup Part Number 07196D
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Cups Type Standard
  • Series 7000
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Rating(One Row 90 Million Revolutions) 1700 lbf
  • Dynamic Thrust Rating(90 Million Revolutions) 1170 lbf
  • Dynamic Radial Rating(Two Row 90 Million Revolutions) 2950 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.59 lb

Features

Performance Features of 07100-S-07196D Bearing

07100-S-07196D Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 11400 lbf, ensuring reliable performance in demanding conditions.

The double-row tapered roller design enhances load distribution, improving durability and efficiency.
With a standard radial clearance, it provides smooth operation across various applications.

07100-S-07196D Bearing operates within a temperature range of -30° to 110 °C, suitable for diverse environments.
The steel cage maintains roller alignment, reducing wear and extending service life.

This bearing requires lubrication but offers consistent performance under heavy loads.
Its construction ensures stability and reliability in industrial and mechanical settings.

Application

Industrial Uses of 07100-S-07196D Bearing
07100-S-07196D Bearing is commonly used in heavy machinery, such as construction equipment and agricultural tools, where its double-row design handles combined radial and thrust loads efficiently. The chrome steel construction ensures durability in demanding environments.

In automotive applications, 07100-S-07196D Bearing supports wheel hubs and differential systems, providing reliable performance under varying loads. Its inch sizing makes it compatible with many North American vehicle models.

For industrial automation, 07100-S-07196D Bearing is ideal for conveyor systems and robotic arms, where precision and load capacity are key. The open seal design allows for easy lubrication, extending service life.

What Makes 07100-S-07196D Bearing a Preferred Choice?
07100-S-07196D Bearing is often chosen for its versatility in handling both radial and thrust loads, making it suitable for gearboxes and power transmission systems. The steel cage adds strength and stability.

In wind turbines, 07100-S-07196D Bearing ensures smooth rotation under high loads, thanks to its tapered roller design. The standard radial clearance option provides flexibility for different operational needs.

Built for Heavy-Duty Use: 07100-S-07196D Bearing
07100-S-07196D Bearing excels in mining equipment, where its robust construction withstands harsh conditions. The double-row configuration distributes loads evenly, reducing wear.

For railway applications, 07100-S-07196D Bearing supports axle boxes, ensuring reliable performance over long distances. The ABEC-1 rating balances precision and cost-effectiveness.

Automotive vs Aerospace: Applications of 07100-S-07196D Bearing
In automotive systems, 07100-S-07196D Bearing is used in drivetrains, offering durability and load capacity. Its inch sizing simplifies integration into existing designs.

For aerospace ground equipment, 07100-S-07196D Bearing handles heavy loads in landing gear systems. The temperature range ensures performance in varying climates.
