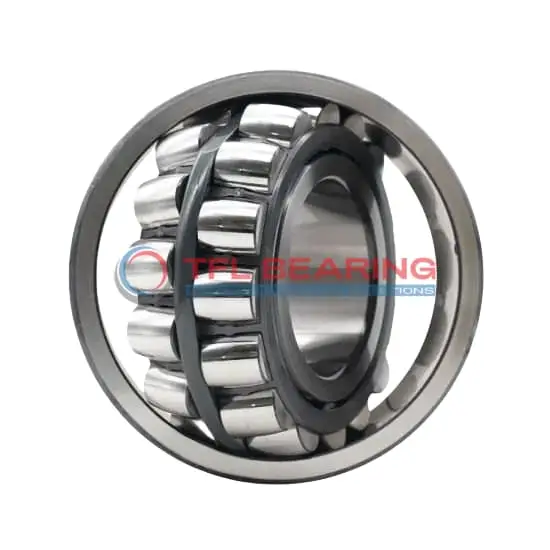

22320E CJW33 Double Row Spherical Roller Bearing

22320E CJW33 Double Row Spherical Roller Bearing

The 22320E CJW33 is a double-row spherical roller bearing with a 100mm bore and 215mm outer diameter, built from sturdy chrome steel. It manages combined loads up to 190413 lbf and runs smoothly at speeds up to 3000 RPM.

Its spherical roller design compensates for misalignment, while the steel cage ensures durability. The open structure allows easy lubrication through the 6mm holes, ideal for high-load environments.

This bearing suits heavy machinery like gearboxes or industrial fans, operating in temperatures from -30°C to 200°C. Weighing 13kg, it’s robust yet manageable for its size.

Compliant with RoHS and REACH standards, it’s interchangeable with SKF models, making replacements straightforward. A reliable choice for demanding applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 22320E CJW33
  • Brand TFL
  • Interchangeable SKF
  • Size 100 x 215 x 73 mm
  • Bore Dia 100 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 215 mm
  • Outer Dia Tolerance -0.030mm to 0
  • Width 73 mm
  • Width Tolerance -0.08mm to 0
  • Shoulder Dia Of Inner Ring 130 mm
  • Shoulder/Recess Dia Of Outer Ring 184 mm
  • Width Of Lubrication Groove 11.1 mm
  • Diameter Of Lubrication Hole 6 mm
  • Chamfer Dimension min.3 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 190413 lbf
  • Static Radial Load 213568 lbf
  • Max Speed 3000 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance CN
  • RoHs Compliant
  • REACH Compliant
  • Weight 13 kg
  • Price （US$） 134.46

Features

Performance Features of 22320E CJW33 Bearing

22320E CJW33 Bearing is built with chrome steel rings and rollers, offering robust resistance to combined loads.
Its dynamic radial load capacity reaches 190413 lbf, making it suitable for heavy-duty applications.

The double-row spherical roller design ensures smooth operation even under misalignment conditions.
This construction enhances load distribution, reducing stress on individual components.

22320E CJW33 Bearing operates efficiently within a wide temperature range of -30° to 200 °C.
Its steel cage maintains roller alignment, contributing to extended service life.

With a maximum speed of 3000 rpm, it balances performance and durability.
The lubrication groove and holes facilitate proper maintenance, ensuring consistent operation.

Application

Industrial Uses of 22320E CJW33 Bearing
The 22320E CJW33 Bearing is commonly used in heavy machinery like mining equipment and construction vehicles, where its double-row design handles both radial and axial loads efficiently.
Its chrome steel construction ensures durability even in harsh environments, making it a reliable choice for long-term use.

Where Is 22320E CJW33 Bearing Used?
You’ll often find the 22320E CJW33 Bearing in industrial fans and pumps, where its spherical roller design accommodates misalignment and reduces wear.
The open seal type allows for easy lubrication, which is essential for maintaining performance in high-speed applications.

Built for Heavy-Duty Use: 22320E CJW33 Bearing
The 22320E CJW33 Bearing excels in paper mills and steel plants, where its high dynamic load capacity keeps operations running smoothly.
Its wide temperature range (-30° to 200°C) makes it suitable for both hot and cold working conditions.

Automotive vs Aerospace: Applications of 22320E CJW33 Bearing
In automotive applications, the 22320E CJW33 Bearing supports gearboxes and drivetrains, offering stability under heavy loads.
For aerospace, its precision and reliability make it a fit for auxiliary systems, though its size is more suited to ground equipment.

Key Fields for 22320E CJW33 Bearing
The 22320E CJW33 Bearing is a go-to for wind turbines, where its ability to handle misalignment and heavy loads is crucial.
Its steel cage and roller material provide excellent resistance to fatigue, ensuring longevity in demanding conditions.
