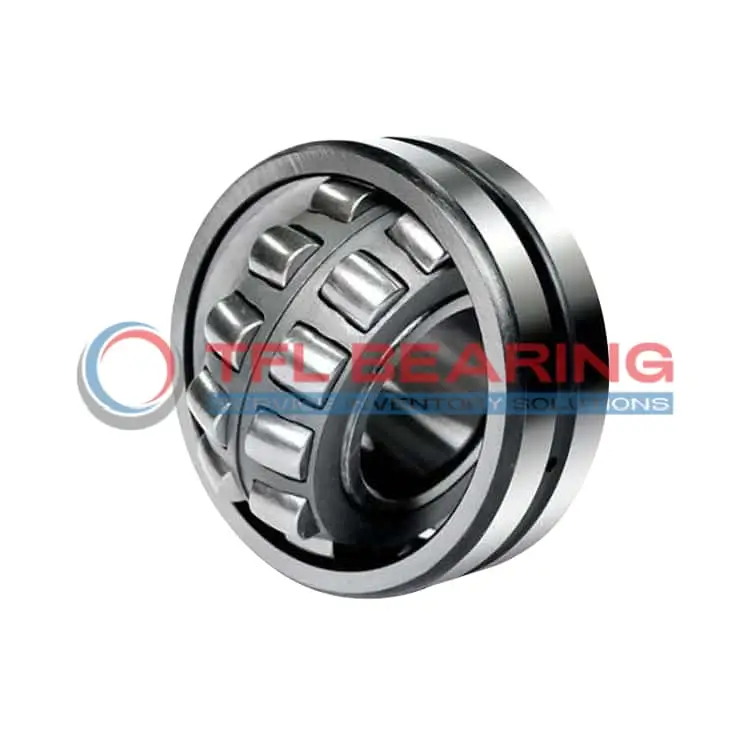

22320 CC C3 Double Row Spherical Roller Bearing

22320 CC C3 Double Row Spherical Roller Bearing

The 22320 CC C3 is a double-row spherical roller bearing with a 100mm bore and 215mm outer diameter, crafted from robust chrome steel. It manages combined loads up to 190413 lbf and operates smoothly at speeds up to 3000 RPM.

Its open design allows for easy lubrication, while the steel cage ensures durability under heavy use. The bearing performs reliably in temperatures ranging from -30°C to 200°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for applications like industrial gearboxes or heavy machinery where combined loads are common.

Weighing 13kg, it’s built to handle demanding conditions while maintaining stability. Compliant with RoHS and REACH standards for safe and sustainable use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 22320 CC C3
  • Brand TFL
  • Interchangeable SKF
  • Size 100 x 215 x 73 mm
  • Bore Dia 100 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 215 mm
  • Outer Dia Tolerance -0.030mm to 0
  • Width 73 mm
  • Width Tolerance -0.08mm to 0
  • Shoulder Dia Of Inner Ring 130 mm
  • Shoulder/Recess Dia Of Outer Ring 184 mm
  • Width Of Lubrication Groove 11.1 mm
  • Diameter Of Lubrication Hole 6 mm
  • Chamfer Dimension min.3 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 190413 lbf
  • Static Radial Load 213568 lbf
  • Max Speed 3000 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance C3
  • RoHs Compliant
  • REACH Compliant
  • Weight 13 kg
  • Price （US$） 152.46

Features

Performance Features of 22320 CC C3 Bearing

22320 CC C3 Bearing is built with chrome steel rings and rollers, offering high resistance to combined loads.
Its dynamic radial load capacity reaches 190413 lbf, ensuring stability in heavy-duty applications.

The double-row spherical roller design allows for slight misalignment, reducing stress on the bearing.
This feature enhances its durability and extends operational life in challenging conditions.

With a maximum speed of 3000 rpm, 22320 CC C3 Bearing balances performance and reliability.
The C3 radial clearance provides flexibility in high-temperature environments up to 200°C.

22320 CC C3 Bearing’s steel cage ensures proper roller alignment, minimising wear and tear.
Its open design simplifies lubrication, making maintenance straightforward and cost-effective.

Application

Industrial Uses of 22320 CC C3 Bearing
The 22320 CC C3 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles both radial and axial loads efficiently. Its robust construction ensures reliability in demanding industrial environments.

Where Is 22320 CC C3 Bearing Used?
You’ll often find the 22320 CC C3 Bearing in mining equipment, where its high dynamic load capacity and tolerance for misalignment make it a dependable choice. The open seal design allows for easy lubrication, extending its service life.

Built for Heavy-Duty Use: 22320 CC C3 Bearing
In construction machinery, the 22320 CC C3 Bearing supports components like gearboxes and conveyors, thanks to its chrome steel rollers and steel cage. Its C3 radial clearance ensures smooth operation even under heavy loads.

Automotive vs Aerospace: Applications of 22320 CC C3 Bearing
While the 22320 CC C3 Bearing is suitable for large trucks and buses in the automotive sector, it also finds use in aerospace ground support equipment. Its high-temperature tolerance and durability make it versatile across industries.

Perfect Fit for Automation: 22320 CC C3 Bearing
The 22320 CC C3 Bearing works well in automated production lines, where its spherical rollers compensate for shaft misalignment. Its metric sizing ensures compatibility with a wide range of machinery.
