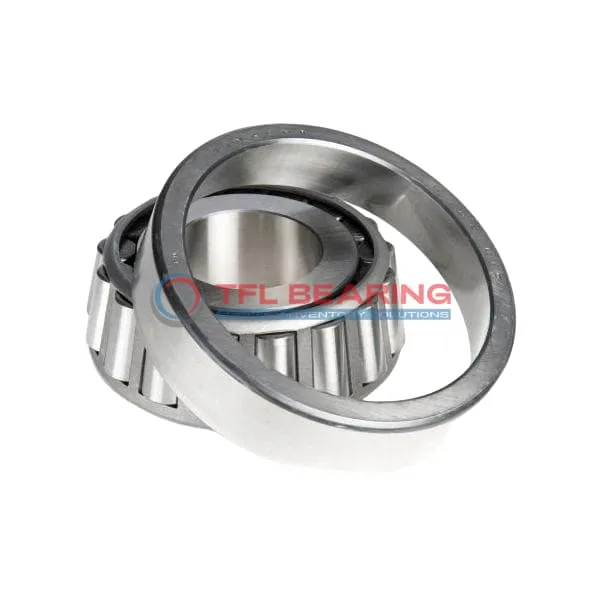

TS (Single Row Tapered Roller Bearings) (Imperial) HM813836-HM813810

TS (Single Row Tapered Roller Bearings) (Imperial) HM813836-HM813810

The HM813836-HM813810 is a single-row tapered roller bearing with a 2″ bore and 5″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 51500 lbf radially and 11500 lbf thrust, making it versatile for heavy-duty use.

Its open design allows easy lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures from -30°C to 110°C, suitable for various industrial conditions.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for applications like gearboxes, axles, or machinery where combined loads are common.

Weighing 5.3 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it meets safety and environmental requirements.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number HM813836-HM813810
  • Brand TFL
  • Interchangeable Timken
  • Size 2" x 5" x 1.4375"
  • Bore Dia 2"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 5"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.4375"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.0625"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.4375"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.14"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 2.72"
  • Cone Backface Backing Diameter 2.95"
  • Cup Frontface Backing Diameter 4.80"
  • Cup Backface Backing Diameter 4.37"
  • Cage Cone Frontface Clearance 0.08"
  • Cage Cone Backface Clearance 0.14"
  • Effective Center Location -0.15"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number HM813836
  • Cup Part Number HM813810
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series HM813800
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 51500 lbf
  • Static Radial Load 57600 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 13400 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 11500 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 5.3 lb

Features

How Is HM813836-HM813810 Bearing Engineered for Reliability?

HM813836-HM813810 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 51,500 lbf, ensuring dependable performance in tough conditions.
The steel cage maintains roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs reliably in various environments.

Application

Industrial Uses of HM813836-HM813810 Bearing
HM813836-HM813810 Bearing is commonly used in heavy machinery, such as construction equipment and mining tools, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability even in demanding environments.

Where Is HM813836-HM813810 Bearing Used?
You’ll often find HM813836-HM813810 Bearing in automotive applications like truck wheel hubs, where its high load capacity and reliability are essential. The imperial sizing makes it a preferred choice for North American vehicles.

Built for Heavy-Duty Use: HM813836-HM813810 Bearing
HM813836-HM813810 Bearing excels in industrial gearboxes, providing smooth operation under radial and thrust loads. Its steel cage offers added strength, making it suitable for long-term use.

Automotive vs Aerospace: Applications of HM813836-HM813810 Bearing
In automotive systems, HM813836-HM813810 Bearing supports heavy loads in axles and transmissions. While in aerospace, its precision and reliability make it useful for certain ground support equipment.

Key Fields for HM813836-HM813810 Bearing
HM813836-HM813810 Bearing is ideal for agricultural machinery, where its robust design handles rough conditions. The standard radial clearance ensures consistent performance in varying temperatures.
