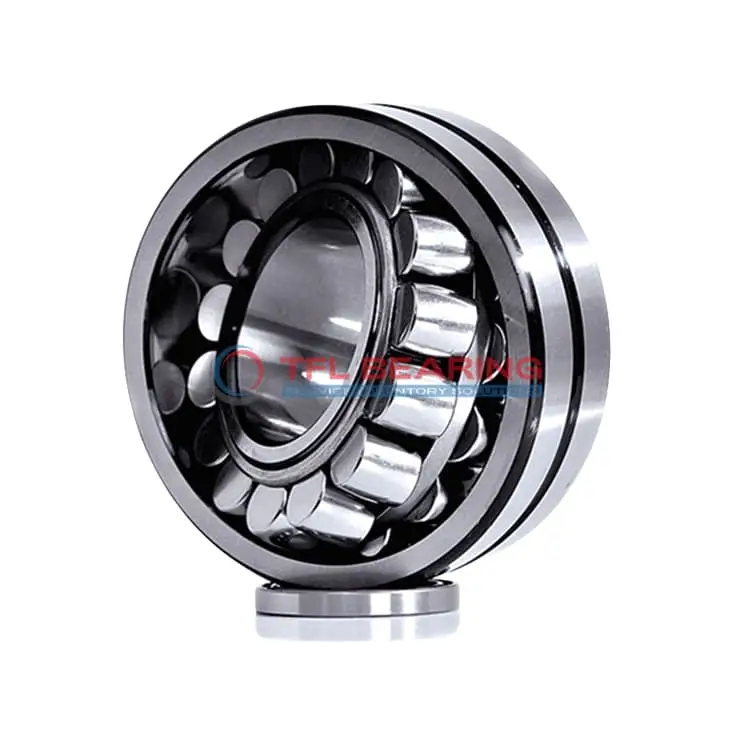

22310C CY C3 W33 Double Row Spherical Roller Bearing

22310C CY C3 W33 Double Row Spherical Roller Bearing

The 22310C CY C3 W33 is a double-row spherical roller bearing with a 50mm bore and 110mm outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 51256 lbf and operates smoothly at speeds up to 6300 RPM.

Its brass cage and open design allow for easy lubrication, while the spherical rollers accommodate misalignment. The bearing performs reliably in temperatures ranging from -30°C to 200°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for heavy-duty applications like industrial gearboxes or mining equipment where high radial loads are present.

Weighing 1.85kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe and sustainable use.

The lubrication groove and hole (6mm wide, 3mm diameter) simplify maintenance. Its C3 radial clearance ensures flexibility in various operating conditions.

Ideal for scenarios requiring durability and adaptability, such as conveyor systems or large machinery. The double-row design enhances load capacity without compromising on performance.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 22310C CY C3 W33
  • Brand TFL
  • Interchangeable SKF
  • Size 50 x 110 x 40 mm
  • Bore Dia 50 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 110 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 40 mm
  • Width Tolerance -0.06mm to 0
  • Shoulder Dia Of Inner Ring 63.9 mm
  • Shoulder/Recess Dia Of Outer Ring 91.9 mm
  • Width Of Lubrication Groove 6 mm
  • Diameter Of Lubrication Hole 3 mm
  • Chamfer Dimension min.2 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 51256 lbf
  • Static Radial Load 50357 lbf
  • Max Speed 6300 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance C3
  • RoHs Compliant
  • REACH Compliant
  • Weight 1.85 kg
  • Price （US$） 50.4

Features

How Does 22310C CY C3 W33 Bearing Handle Combined Loads?

22310C CY C3 W33 Bearing features a double-row spherical roller design, ideal for handling both radial and axial loads.
Its chrome steel rings and rollers provide high strength, supporting dynamic radial loads up to 51256 lbf.

The brass cage ensures smooth roller movement, reducing friction and enhancing durability.
With a maximum speed of 6300 rpm, it performs reliably in high-speed applications.

22310C CY C3 W33 Bearing operates in temperatures from -30° to 200°C, suitable for varied environments.
Its C3 radial clearance allows for thermal expansion, ensuring consistent performance under load.

Application

Industrial Uses of 22310C CY C3 W33 Bearing
22310C CY C3 W33 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles high radial loads effortlessly. The brass cage ensures smooth operation even in demanding conditions.

What Makes 22310C CY C3 W33 Bearing a Preferred Choice?
In mining equipment, 22310C CY C3 W33 Bearing’s spherical rollers accommodate misalignment, reducing wear and tear. Its C3 radial clearance allows for thermal expansion, making it ideal for high-temperature environments.

Built for Heavy-Duty Use: 22310C CY C3 W33 Bearing
22310C CY C3 W33 Bearing excels in conveyor systems, where its chrome steel construction resists deformation under heavy loads. The lubrication groove design ensures consistent performance over long periods.

Automotive vs Aerospace: Applications of 22310C CY C3 W33 Bearing
In automotive drivetrains, 22310C CY C3 W33 Bearing supports high-speed rotations, while in aerospace, its temperature range suits auxiliary power units. The metric sizing fits global standards seamlessly.

Perfect Fit for Automation: 22310C CY C3 W33 Bearing
22310C CY C3 W33 Bearing is a reliable choice for robotic arms, where precision and durability are key. Its open design simplifies maintenance, keeping downtime to a minimum.
