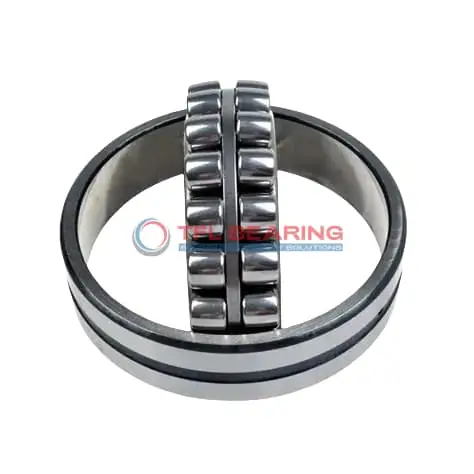

22220 CY C3 Double Row Spherical Roller Bearing

22220 CY C3 Double Row Spherical Roller Bearing

The 22220 CY C3 is a double-row spherical roller bearing with a 100mm bore and 180mm outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 97342 lbf and runs smoothly at speeds up to 4500 RPM.

Its brass cage enhances durability, while the open design allows for easy lubrication. The bearing operates efficiently in temperatures ranging from -30°C to 200°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for heavy-duty applications like industrial gearboxes or mining equipment where high radial loads are expected.

Weighing 4.95kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, ensuring safe and reliable use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 22220 CY C3
  • Brand TFL
  • Interchangeable SKF
  • Size 100 x 180 x 46 mm
  • Bore Dia 100 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 180 mm
  • Outer Dia Tolerance -0.025mm to 0
  • Width 46 mm
  • Width Tolerance -0.08mm to 0
  • Shoulder Dia Of Inner Ring 118 mm
  • Shoulder/Recess Dia Of Outer Ring 159 mm
  • Width Of Lubrication Groove 8.3 mm
  • Diameter Of Lubrication Hole 4.5 mm
  • Chamfer Dimension min.2.1 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 97342 lbf
  • Static Radial Load 110156 lbf
  • Max Speed 4500 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance C3
  • RoHs Compliant
  • REACH Compliant
  • Weight 4.95 kg
  • Price （US$） 89.1

Features

Performance Features of 22220 CY C3 Bearing

22220 CY C3 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 97342 lbf, ensuring reliable performance in heavy-duty applications.

The brass cage maintains roller alignment, reducing friction and extending operational life.
With a maximum speed of 4500 rpm, it delivers both durability and efficiency.

22220 CY C3 Bearing operates in temperatures from -30° to 200°C, suitable for varied environments.
Its C3 radial clearance allows for thermal expansion, enhancing performance under load.

The double-row spherical design accommodates misalignment, ensuring smooth operation.
Lubrication grooves and holes facilitate easy maintenance, reducing downtime.

22220 CY C3 Bearing’s robust construction makes it ideal for industrial machinery.
Its precision engineering ensures consistent performance even in demanding conditions.

Application

Industrial Uses of 22220 CY C3 Bearing
22220 CY C3 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles both radial and axial loads efficiently. The brass cage ensures smooth operation even under high stress and vibration.

Where Is 22220 CY C3 Bearing Used?
You’ll often find 22220 CY C3 Bearing in mining equipment, where its robust construction withstands harsh conditions. Its high dynamic load capacity makes it suitable for conveyor systems and gearboxes as well.

Built for Heavy-Duty Use: 22220 CY C3 Bearing
22220 CY C3 Bearing excels in industrial fans and pumps, thanks to its spherical roller design that compensates for misalignment. The chrome steel rollers provide durability in high-temperature environments.

Automotive vs Aerospace: Applications of 22220 CY C3 Bearing
In automotive applications, 22220 CY C3 Bearing supports heavy axles and transmissions, while in aerospace, it’s used in auxiliary systems requiring reliable performance. Its C3 clearance accommodates thermal expansion in both sectors.

Essential Roles of 22220 CY C3 Bearing
22220 CY C3 Bearing is vital in paper mills and steel plants, where its ability to handle misalignment and heavy loads ensures continuous operation. The open design allows for easy lubrication, extending service life.
