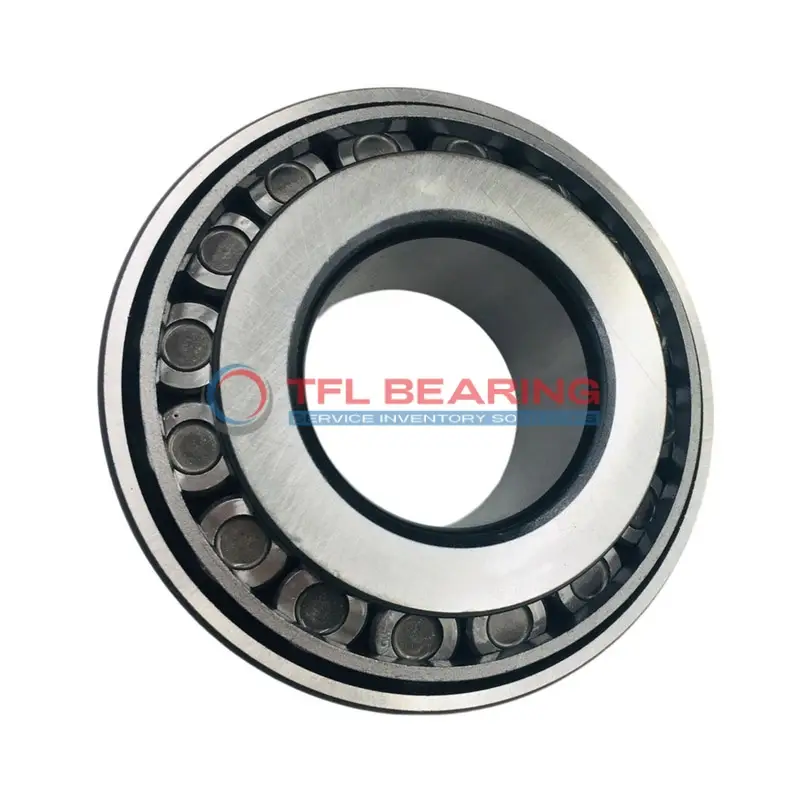

5752 Single Cones (Imperial)

5752 Single Cones (Imperial)

The 5752 single cones are tapered roller bearings designed for combined loads, with a 2.875″ bore and made from durable chrome steel. They handle dynamic radial loads up to 57400 lbf and are suitable for temperatures from -30°C to 110°C.

Their open design allows for easy maintenance, while the steel cage ensures reliable performance. The bearings come in standard radial clearance but are also available in C3, C4, and C5 options for different needs.

These cones are interchangeable with Timken bearings, making them a practical choice for replacements. Ideal for heavy-duty applications like industrial machinery or vehicle axles where combined loads are common.

Compliant with RoHS and REACH standards, they offer a robust solution for demanding environments. The ABEC-1 rating ensures consistent performance for general industrial use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 5752
  • Brand TFL
  • Interchangeable Brand Timken
  • System of Measurement Inch
  • Type Cones
  • Bearing Part Number 5752-5720 , 5752-5722 , 5752-5735
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Series 5752
  • Bore Dia 2.875"
  • Bore Dia Tolerance +0.005" to 0
  • Cone Width 2.065"
  • Cone Width Tolerance +0.003" to -0.01
  • Cone Backface ToClear Radius 0.2"
  • Cone Frontface Backing Diameter 3.35"
  • Cone Backface Backing Diameter 3.7"
  • Cage Cone Frontface Clearance 0.08"
  • Cage Cone Backface Clearance 0.45"
  • Effective Center Location -0.71"
  • Ring Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 57400 lbf
  • Static Radial Load 85400 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 14900 lbf
  • Dynamic Radial Rating(Two Row 1 Million Revolutions)(C1) 100000 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 10400 lbf
  • Dynamic Radial Rating(Two Row 90 Million Revolutions)(C90) 25900 lbf
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant

Features

Performance Features of 5752 Bearing

5752 Bearing is crafted with chrome steel rings, offering robust resistance to combined loads.
Its dynamic radial load capacity reaches 57,400 lbf, ensuring dependable performance in heavy-duty applications.

The steel cage maintains roller alignment, reducing friction and prolonging service life.
With a temperature range of -30° to 110°C, 5752 Bearing operates reliably in varied conditions.

Designed for tapered roller applications, it provides smooth operation and easy maintenance.
The standard radial clearance options (C3/C4/C5) allow flexibility for different operational needs.

Application

Essential Roles of 5752 Single Cones (Imperial)
5752 Single Cones (Imperial) are commonly used in heavy machinery, such as construction equipment and agricultural vehicles, where combined loads are frequent. Their tapered roller design ensures smooth operation even under demanding conditions.

Where Is 5752 Single Cones (Imperial) Used?
You’ll often find 5752 Single Cones (Imperial) in industrial gearboxes and conveyor systems, thanks to their ability to handle both radial and thrust loads. The chrome steel construction adds durability, making them a reliable choice for long-term use.

Built for Heavy-Duty Use: 5752 Single Cones (Imperial)
5752 Single Cones (Imperial) excel in applications like mining equipment and railway axles, where high load capacity is essential. The steel cage provides stability, ensuring consistent performance even in harsh environments.

Automotive vs Aerospace: Applications of 5752 Single Cones (Imperial)
In automotive systems, 5752 Single Cones (Imperial) support wheel hubs and differentials, offering precise load handling. For aerospace, their reliability makes them suitable for landing gear components, though specific certifications may be required.

Practical Applications of 5752 Single Cones (Imperial)
5752 Single Cones (Imperial) are ideal for wind turbine gearboxes, where their ability to withstand variable loads is crucial. The inch sizing ensures compatibility with a wide range of North American machinery.
