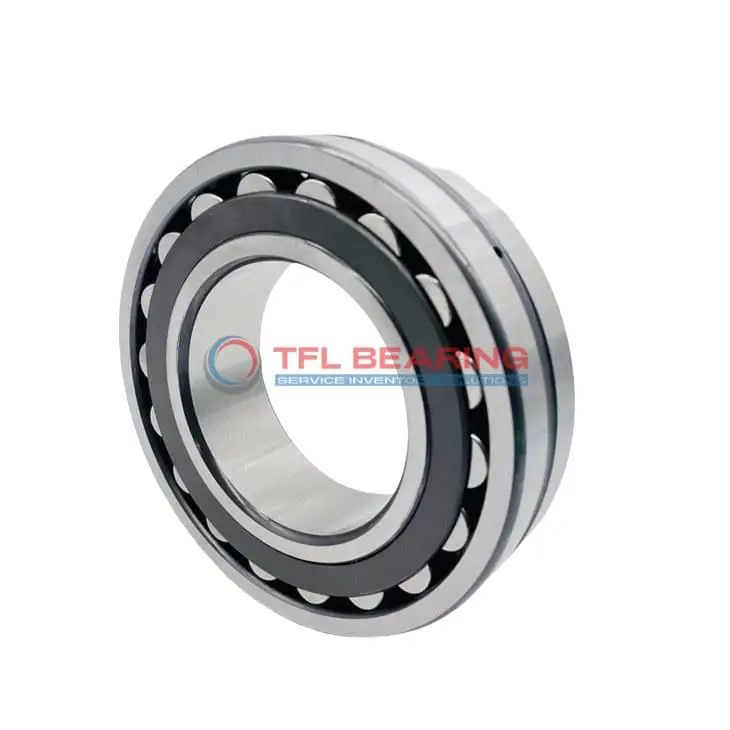

22217C CY W33 Double Row Spherical Roller Bearing

22217C CY W33 Double Row Spherical Roller Bearing

The 22217C CY W33 is a double-row spherical roller bearing with an 85mm bore and 150mm outer diameter, crafted from robust chrome steel. It handles combined loads up to 65419 lbf and operates smoothly at speeds up to 5600 RPM.

Its brass cage and spherical rollers ensure durability and reduce friction, while the open design allows for easy lubrication. The bearing performs reliably in temperatures ranging from -30°C to 200°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for heavy-duty applications like industrial gearboxes or mining equipment where high radial loads are common.

Weighing 2.7kg, it’s built to withstand demanding conditions while maintaining stability. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 22217C CY W33
  • Brand TFL
  • Interchangeable SKF
  • Size 85 x 150 x 36 mm
  • Bore Dia 85 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 150 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 36 mm
  • Width Tolerance -0.08mm to 0
  • Shoulder Dia Of Inner Ring 101 mm
  • Shoulder/Recess Dia Of Outer Ring 133 mm
  • Width Of Lubrication Groove 6 mm
  • Diameter Of Lubrication Hole 3 mm
  • Chamfer Dimension min.2 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 65419 lbf
  • Static Radial Load 73063 lbf
  • Max Speed 5600 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance CN
  • RoHs Compliant
  • REACH Compliant
  • Weight 2.7 kg
  • Price （US$） 59.58

Features

Performance Features of 22217C CY W33 Bearing

22217C CY W33 Bearing is built with chrome steel rings and rollers, offering high resistance to combined loads.
Its dynamic radial load capacity reaches 65419 lbf, ensuring robust performance in heavy-duty applications.

The brass cage maintains roller alignment, reducing friction and enhancing durability.
With a maximum speed of 5600 rpm, it delivers reliable operation under demanding conditions.

22217C CY W33 Bearing operates efficiently in temperatures ranging from -30° to 200°C.
Its double-row spherical design accommodates misalignment, improving overall system performance.

The lubrication groove and holes ensure consistent oil distribution, extending service life.
This design reduces maintenance needs while maintaining smooth operation.

22217C CY W33 Bearing’s cylindrical bore simplifies installation, saving time and effort.
Its standard radial clearance (CN) ensures compatibility with a wide range of applications.

Application

Industrial Uses of 22217C CY W33 Bearing
22217C CY W33 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles both radial and axial loads efficiently. The brass cage ensures smooth operation even under high stress.

Where Is 22217C CY W33 Bearing Used?
You’ll often find 22217C CY W33 Bearing in mining equipment, thanks to its ability to withstand harsh conditions and heavy loads. The lubrication groove and hole make maintenance straightforward, reducing downtime.

Built for Heavy-Duty Use: 22217C CY W33 Bearing
22217C CY W33 Bearing excels in construction equipment, such as cranes and excavators, where its chrome steel rollers provide long-lasting performance. The wide temperature range also makes it suitable for extreme environments.

Automotive vs Aerospace: Applications of 22217C CY W33 Bearing
In automotive applications, 22217C CY W33 Bearing supports gearboxes and drivetrains, while in aerospace, it’s used in auxiliary systems. Its high-speed capability and durability make it versatile across industries.

Key Fields for 22217C CY W33 Bearing
22217C CY W33 Bearing is ideal for wind turbines, where its spherical rollers compensate for misalignment. The metric sizing ensures compatibility with international standards, simplifying replacements.
