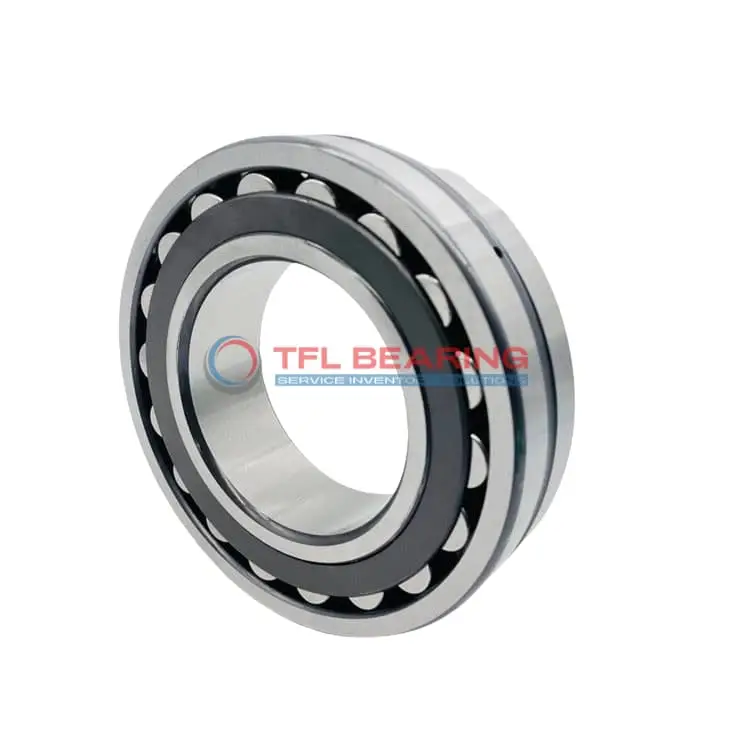

22217 CJ/C3 W33 Double Row Spherical Roller Bearing

22217 CJ/C3 W33 Double Row Spherical Roller Bearing

The 22217 CJ/C3 W33 is a double-row spherical roller bearing with an 85mm bore and 150mm outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 65419 lbf and spins smoothly at speeds up to 5600 RPM.

Its open design and lubrication groove make maintenance straightforward, while the steel cage ensures durability. The bearing operates reliably in temperatures from -30°C to 200°C.

This model is interchangeable with SKF bearings, offering a dependable replacement option. Ideal for heavy-duty applications like industrial gearboxes or mining equipment where high radial loads are present.

Weighing 2.7kg, it balances strength and manageability. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 22217 CJ/C3 W33
  • Brand TFL
  • Interchangeable SKF
  • Size 85 x 150 x 36 mm
  • Bore Dia 85 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 150 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 36 mm
  • Width Tolerance -0.08mm to 0
  • Shoulder Dia Of Inner Ring 101 mm
  • Shoulder/Recess Dia Of Outer Ring 133 mm
  • Width Of Lubrication Groove 6 mm
  • Diameter Of Lubrication Hole 3 mm
  • Chamfer Dimension min.2 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 65419 lbf
  • Static Radial Load 73063 lbf
  • Max Speed 5600 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance C3
  • RoHs Compliant
  • REACH Compliant
  • Weight 2.7 kg
  • Price （US$） 59.58

Features

How Does 22217 CJ/C3 W33 Bearing Handle Combined Loads?

22217 CJ/C3 W33 Bearing features a double-row spherical roller design, ideal for handling both radial and axial loads.

Its chrome steel construction ensures durability, even under high dynamic radial loads of up to 65419 lbf.

The steel cage maintains roller alignment, reducing friction and extending operational life.

With a maximum speed of 5600 rpm, it performs reliably in demanding industrial applications.

Application

Industrial Uses of 22217 CJ/C3 W33 Bearing
The 22217 CJ/C3 W33 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles both radial and axial loads efficiently. Its spherical roller construction adapts well to misalignment, reducing wear in demanding conditions.

Where Is 22217 CJ/C3 W33 Bearing Used?
You’ll often find 22217 CJ/C3 W33 Bearing in mining equipment, where its high dynamic radial load capacity ensures reliable performance under extreme stress. The open seal design simplifies lubrication, making maintenance easier in harsh environments.

Built for Heavy-Duty Use: 22217 CJ/C3 W33 Bearing
In construction machinery, 22217 CJ/C3 W33 Bearing supports components like conveyor pulleys, thanks to its robust chrome steel construction. The C3 radial clearance allows for thermal expansion, ideal for high-temperature applications.

Automotive vs Aerospace: Applications of 22217 CJ/C3 W33 Bearing
While 22217 CJ/C3 W33 Bearing isn’t typically used in aerospace, it’s a staple in heavy-duty trucks and industrial vehicles. Its combined load capacity makes it suitable for gearboxes and differential systems.

Perfect Fit for Automation: 22217 CJ/C3 W33 Bearing
In automated production lines, 22217 CJ/C3 W33 Bearing ensures smooth operation in robotic arms and assembly systems. The steel cage enhances durability, even in high-speed scenarios up to 5600 rpm.
