Inner Rings IR95X105X36-XL

Inner Rings IR95X105X36-XL

The IR95X105X36-XL is a needle roller bearing inner ring with a 95mm bore and 105mm outer diameter, crafted from sturdy chrome steel. Its compact 36mm width makes it a space-saving choice for tight setups.
Designed for smooth operation, it comes pre-lubricated to reduce friction and wear. The precise tolerances ensure a reliable fit in demanding applications.
This model is interchangeable with INA bearings, offering flexibility for replacements. It’s well-suited for gearboxes or industrial machinery where high load capacity is needed.
Weighing just 431g, it’s lightweight yet durable. Compliant with RoHS standards, it’s a safe and practical option for various engineering needs.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number IR95X105X36-XL
  • Brand TFL
  • Interchangeable brand INA
  • System of Measurement Metric
  • Roller Bearing Type Needle
  • Series IR
  • Bore Dia 95 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 105 mm
  • Outer Dia Tolerance -0.027mm to -0.014mm
  • Width 36 mm
  • Width Tolerance -0.2mm to 0
  • Material Chrome Steel
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 431 g
  • Rmin 1 mm

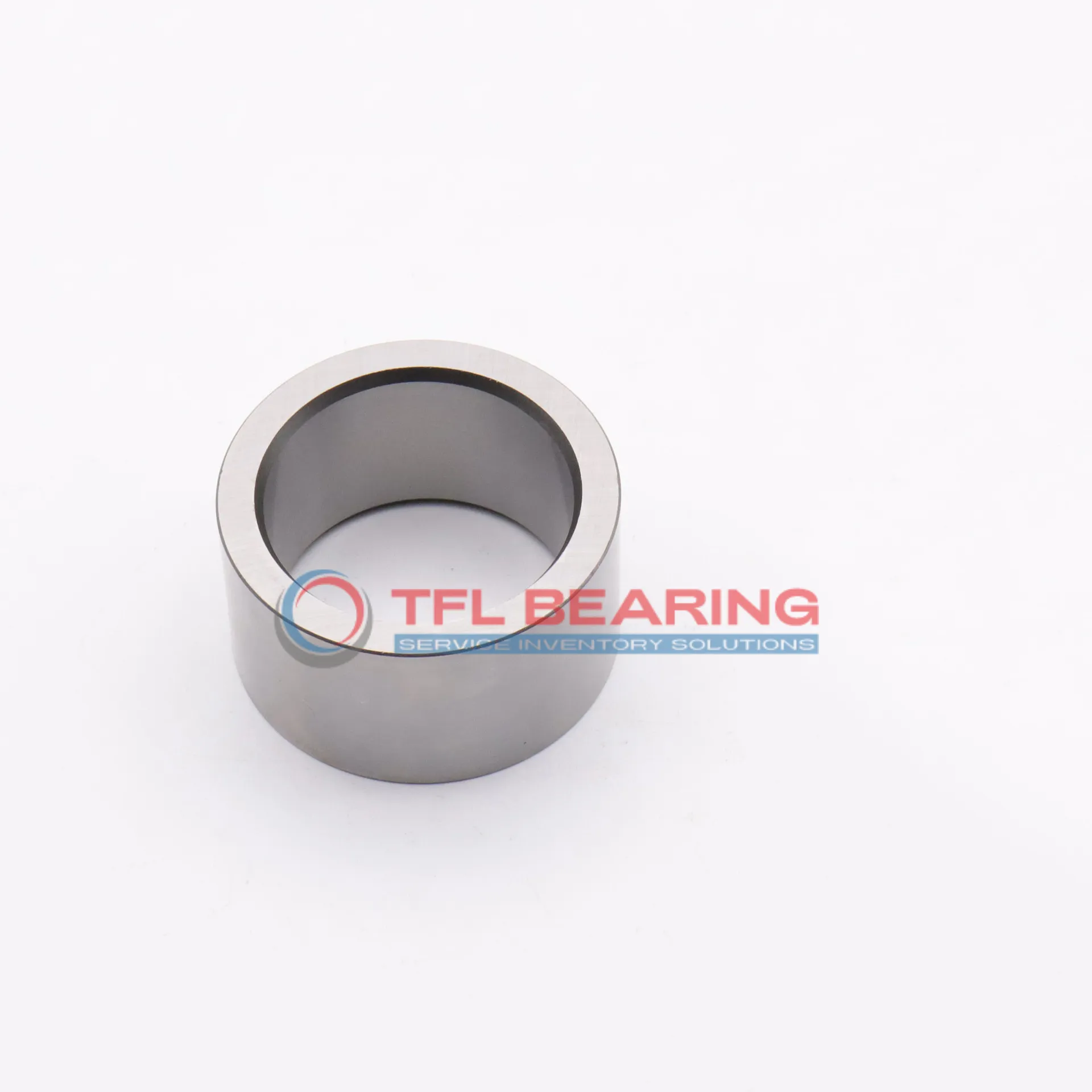

Inner Rings IR95X105X36-XL dimension drawing
Download DWG Download PDF

Features

Performance Features of IR95X105X36-XL Bearing
IR95X105X36-XL Bearing is crafted from chrome steel, offering durability and resistance to wear.
Its precise bore and outer diameter tolerances ensure a perfect fit for demanding applications.
The needle roller design of IR95X105X36-XL Bearing provides high load capacity in a compact space.
With a width of 36 mm, it balances strength and efficiency for various industrial uses.
IR95X105X36-XL Bearing comes pre-lubricated, reducing initial setup time and maintenance needs.
Its compliance with RoHS standards makes it suitable for environmentally conscious applications.

Application

Essential Roles of IR95X105X36-XL Bearing
IR95X105X36-XL Bearing is commonly used in industrial machinery, especially in compact spaces where high load capacity is needed, such as gearboxes and power transmission systems. Its needle roller design ensures efficient performance in tight radial spaces.
In automotive applications, IR95X105X36-XL Bearing supports components like steering systems and transmissions, where its durability and precision are key. The chrome steel construction provides long-lasting reliability under demanding conditions.
For automation equipment, IR95X105X36-XL Bearing is ideal for robotic arms and conveyor systems, offering smooth operation and low maintenance. Its metric sizing ensures compatibility with a variety of machinery designs.
In medical devices, IR95X105X36-XL Bearing’s lubricated design ensures quiet and reliable performance in equipment like diagnostic scanners. The precise tolerances make it suitable for high-accuracy applications.
