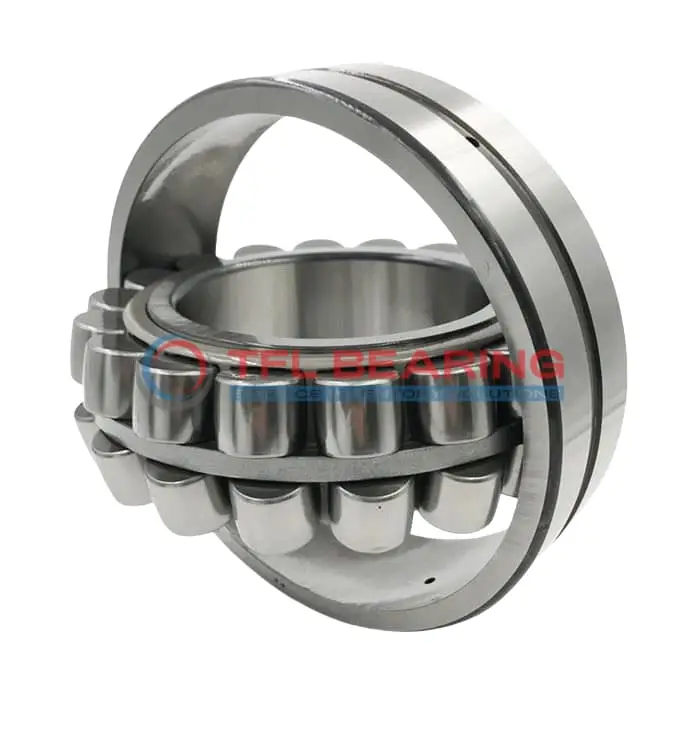

22215 E Double Row Spherical Roller Bearing

22215 E Double Row Spherical Roller Bearing

The 22215 E is a double-row spherical roller bearing with a 75mm bore and 130mm outer diameter, crafted from durable chrome steel. It handles combined loads up to 48784 lbf and operates smoothly at speeds up to 6300 RPM.

Its spherical roller design allows for slight misalignment, while the steel cage ensures reliable performance under heavy loads. The open construction requires regular lubrication for optimal use.

This bearing suits high-temperature environments, working from -30°C to 200°C. It’s interchangeable with SKF models, making it a practical choice for replacements.

Weighing 1.7kg, it’s robust yet manageable for industrial applications like gearboxes or heavy machinery. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 22215 E
  • Brand TFL
  • Interchangeable SKF
  • Size 75 x 130 x 31 mm
  • Bore Dia 75 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 130 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 31 mm
  • Width Tolerance -0.06mm to 0
  • Shoulder Dia Of Inner Ring 87.8 mm
  • Shoulder/Recess Dia Of Outer Ring 115 mm
  • Width Of Lubrication Groove 6 mm
  • Diameter Of Lubrication Hole 3 mm
  • Chamfer Dimension min.1.5 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 48784 lbf
  • Static Radial Load 53954 lbf
  • Max Speed 6300 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance CN
  • RoHs Compliant
  • REACH Compliant
  • Weight 1.7 kg
  • Price （US$） 56.43

Features

Performance Features of 22215 E Bearing

22215 E Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 48784 lbf, ensuring reliable performance in heavy-duty applications.

The double-row spherical roller design allows for slight misalignment, reducing stress on the bearing.
With a maximum speed of 6300 rpm, it maintains efficiency even under demanding conditions.

22215 E Bearing operates in temperatures from -30° to 200°C, making it suitable for various environments.
The steel cage ensures proper roller alignment, enhancing durability and reducing wear.

Application

Industrial Uses of 22215 E Bearing
The 22215 E Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles both radial and axial loads effortlessly.
Its spherical roller construction allows for slight misalignment, making it ideal for rugged industrial environments.

Where Is 22215 E Bearing Used?
You’ll often find 22215 E Bearing in conveyor systems and gearboxes, where its high load capacity ensures reliable performance.
The open seal design simplifies lubrication, keeping maintenance straightforward even in demanding conditions.

Built for Heavy-Duty Use: 22215 E Bearing
In mining equipment, 22215 E Bearing’s chrome steel rollers withstand extreme loads and harsh conditions without faltering.
The wide temperature range also makes it suitable for applications from freezing cold to high-heat environments.

Automotive vs Aerospace: Applications of 22215 E Bearing
In automotive applications, 22215 E Bearing supports drivetrain components, offering durability under combined loads.
For aerospace, its precision and reliability make it a trusted choice for auxiliary systems requiring consistent performance.

Essential Roles of 22215 E Bearing
The 22215 E Bearing plays a key role in wind turbines, where its ability to handle misalignment and heavy loads is invaluable.
Its steel cage ensures long service life, even in high-speed rotations up to 6300 rpm.
