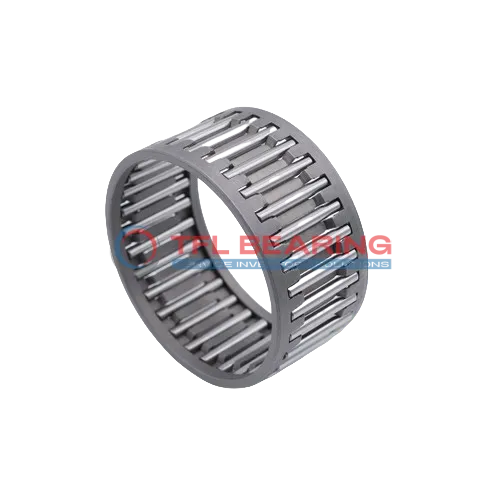

Needle Roller And Cage Assemblies K10X13X10-TV

Needle Roller And Cage Assemblies K10X13X10-TV

The K10X13X10-TV is a compact needle roller and cage assembly with a 10mm bore and 13mm outer diameter, crafted from sturdy steel and PA66. It handles radial loads up to 1069 lbf and spins smoothly at speeds up to 29,500 RPM.
Its single-row design and lightweight construction (just 1.6g) make it easy to install in tight spaces. The PA66 cage ensures quiet operation and reduces friction.
This assembly works well in temperatures from -30°C to 110°C and is RoHS compliant for safe use. It’s interchangeable with INA bearings, offering a reliable replacement option.
Ideal for applications like small gearboxes, automotive components, or machinery where space is limited but high-speed performance is needed.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number K10X13X10-TV
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 10 mm
  • Outer Dia 13 mm
  • Width 10 mm
  • System of Measurement Metric
  • Roller Bearing Type Needle
  • Construction Single Row
  • Series K Series
  • Cage Material PA66
  • Needle Material Steel
  • Dynamic Radial Load 1069 lbf
  • Static Radial Load 1238 lbf
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • Max Speed 29500 rpm
  • Weight 1.6 g

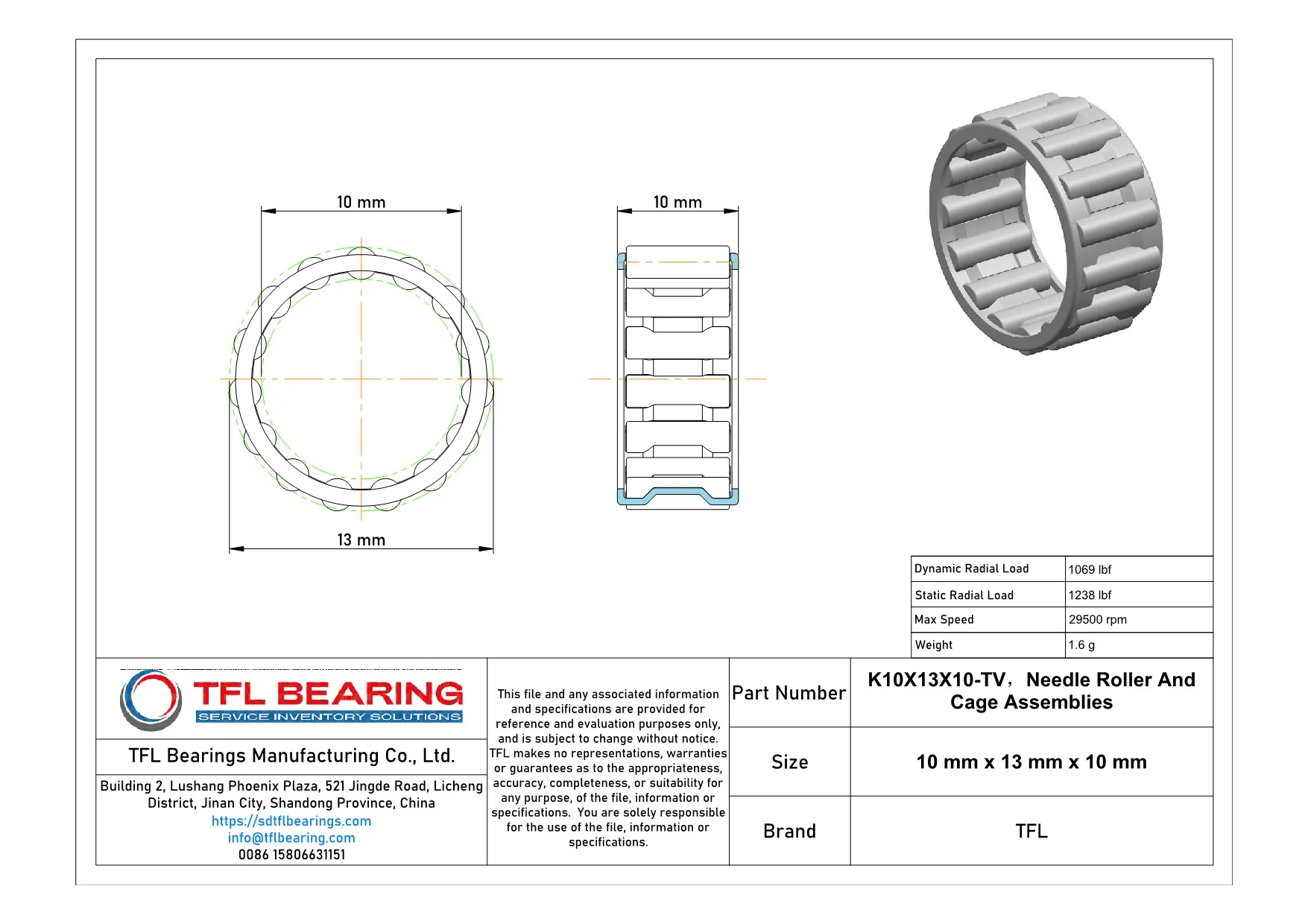

Needle Roller And Cage Assemblies K10X13X10-TV dimension drawing
Download DWG Download PDF

Features

How Does K10X13X10-TV Bearing Achieve High-Speed Performance?
K10X13X10-TV Bearing features a lightweight PA66 cage, reducing inertia for smoother high-speed operation.
Its steel needle rollers provide excellent load distribution, handling dynamic radial loads up to 1069 lbf.
The compact design of K10X13X10-TV Bearing ensures reliable performance in tight spaces.
With a maximum speed of 29,500 rpm, it suits demanding applications requiring precision and durability.
K10X13X10-TV Bearing operates efficiently within a temperature range of -30° to 110°C.
Its single-row construction simplifies installation while maintaining high load capacity.

Application

Key Fields for K10X13X10-TV Bearing
K10X13X10-TV Bearing is commonly used in compact industrial gearboxes, where its needle roller design efficiently handles high radial loads in tight spaces. The PA66 cage ensures smooth operation even at elevated speeds.
In automotive applications, K10X13X10-TV Bearing fits well in transmission systems and small electric motors, thanks to its lightweight yet durable construction. Its metric dimensions make it a versatile choice for various vehicle designs.
For automation equipment, K10X13X10-TV Bearing works reliably in robotic joints and precision actuators. The steel needles provide excellent load capacity, while the cage maintains proper roller alignment during rapid movements.
Where Is K10X13X10-TV Bearing Used?
You’ll often spot K10X13X10-TV Bearing in power tools like drills and grinders, where its small size and high-speed capability are ideal. The steel needles handle intense vibrations without compromising performance.
In medical devices, K10X13X10-TV Bearing’s precision makes it suitable for lab equipment and small surgical instruments. The PA66 cage’s low friction ensures quiet operation in sensitive environments.
Built for Heavy-Duty Use: K10X13X10-TV Bearing
K10X13X10-TV Bearing excels in conveyor systems, particularly where space constraints limit larger bearing options. Its high dynamic load rating keeps production lines running smoothly.
For consumer electronics, K10X13X10-TV Bearing is found in printer mechanisms and small cooling fans. The lightweight design doesn’t sacrifice durability, even with continuous use.
Automotive vs Aerospace: Applications of K10X13X10-TV Bearing
In cars, K10X13X10-TV Bearing often supports steering column mechanisms, benefiting from its compact profile. For aerospace, it’s used in auxiliary systems where weight savings are critical.
In 3D printers, K10X13X10-TV Bearing ensures precise linear motion in print heads. The high-speed tolerance matches well with rapid prototyping demands.
