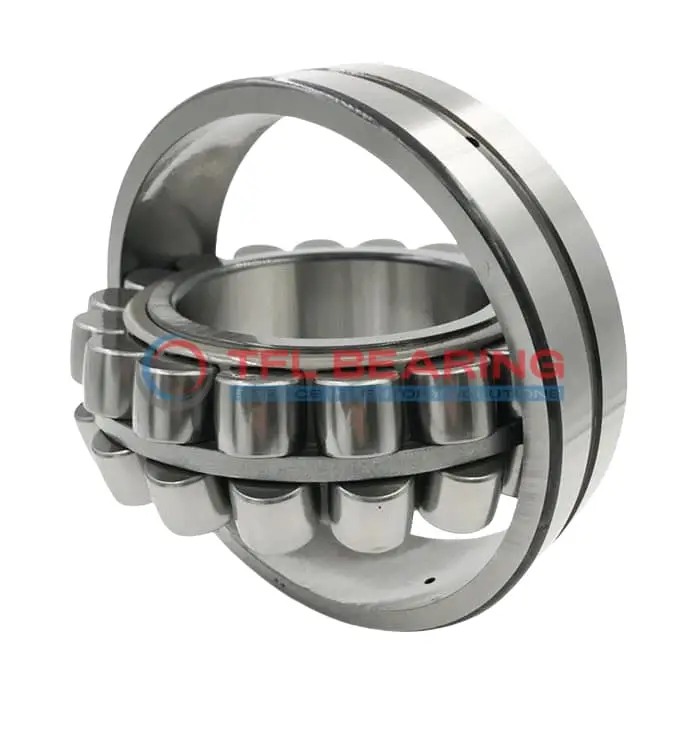

22215 E/C4VA237 Double Row Spherical Roller Bearing

The 22215 E/C4VA237 is a double-row spherical roller bearing with a 75mm bore and 130mm outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 48784 lbf and reaches speeds of 6300 RPM.

Its open design and C4 radial clearance allow for smooth operation under varying temperatures, from -30°C to 200°C. The steel cage ensures durability, while the lubrication groove simplifies maintenance.

This bearing is interchangeable with SKF models, making it a practical choice for replacements. Suitable for heavy-duty applications like industrial gearboxes or mining equipment.

Weighing 1.7kg, it balances strength and manageability. Compliant with RoHS and REACH standards for safe and reliable use.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number 22215 E/C4VA237
Brand TFL
Interchangeable SKF
Size 75 x 130 x 31 mm
Bore Dia 75 mm
Bore Dia Tolerance -0.015mm to 0
Outer Dia 130 mm
Outer Dia Tolerance -0.018mm to 0
Width 31 mm
Width Tolerance -0.06mm to 0
Shoulder Dia Of Inner Ring 87.8 mm
Shoulder/Recess Dia Of Outer Ring 115 mm
Width Of Lubrication Groove 6 mm
Diameter Of Lubrication Hole 3 mm
Chamfer Dimension min.1.5 mm
System of Measurement Metric
Radial run-out Standard
Bearing Type Roller
Roller Bearing Type Spherical
Bore Type Cylindrical
For Load Direction Combined
Construction Double Row
Seal Type Open
Ring Material Chrome Steel
Roller Material Chrome Steel
Cage Material Steel
Dynamic Radial Load 48784 lbf
Static Radial Load 53954 lbf
Max Speed 6300 rpm
Lubrication Required
Temperature Range -30° to 200 °C
Radial Clearance C4
RoHs Compliant
REACH Compliant
Weight 1.7 kg
Price （US$） 41.17

Features

How Is 22215 E/C4VA237 Bearing Engineered for Reliability?

22215 E/C4VA237 Bearing features a double-row spherical roller design, ideal for handling combined radial and thrust loads.
Its chrome steel construction ensures durability, even under dynamic radial loads up to 48,784 lbf.

The C4 radial clearance allows for thermal expansion, making it suitable for high-temperature applications up to 200°C.
With a maximum speed of 6,300 rpm, it delivers consistent performance in demanding conditions.

The steel cage maintains roller alignment, reducing friction and extending operational life.
Its open design simplifies lubrication, ensuring smooth operation with minimal maintenance.

Application

Industrial Uses of 22215 E/C4VA237 Bearing
22215 E/C4VA237 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles high radial and axial loads. The spherical roller construction also compensates for misalignment, ensuring smooth operation in rough conditions.

Where Is 22215 E/C4VA237 Bearing Used?
You’ll often find 22215 E/C4VA237 Bearing in conveyor systems and gearboxes, where its high dynamic load capacity keeps things running reliably. The C4 radial clearance makes it suitable for applications with thermal expansion concerns.

Built for Heavy-Duty Use: 22215 E/C4VA237 Bearing
22215 E/C4VA237 Bearing excels in mining equipment, thanks to its chrome steel rollers and robust steel cage. The wide temperature range (-30° to 200°C) ensures performance even in extreme environments.

Automotive vs Aerospace: Applications of 22215 E/C4VA237 Bearing
In automotive drivetrains, 22215 E/C4VA237 Bearing handles combined loads in differentials and wheel hubs. For aerospace, its precision and high-speed capability (6300 rpm) make it useful in auxiliary power units.

Essential Roles of 22215 E/C4VA237 Bearing
22215 E/C4VA237 Bearing supports industrial fans and pumps, where its lubrication groove design simplifies maintenance. The metric sizing ensures easy integration with European and Asian machinery standards.
