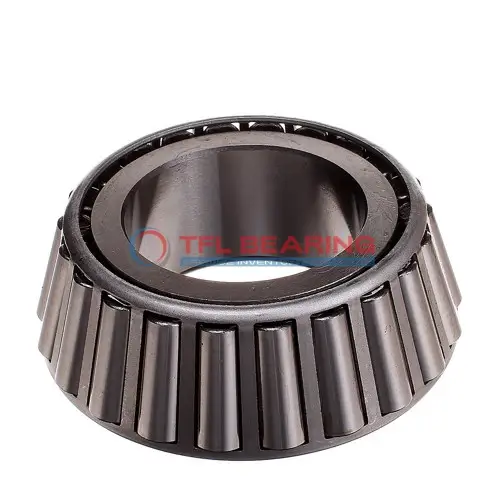

26118 Single Cones (Imperial)

26118 Single Cones (Imperial)

The 26118 is a single-row tapered roller bearing with a 1.1806″ bore, designed for combined loads. Made from chrome steel, it handles dynamic radial loads up to 15700 lbf and operates smoothly in temperatures from -30°C to 110°C.

Its open design allows easy maintenance, while the steel cage ensures durability. The bearing is part of the 26000 series and is interchangeable with Timken models, making it a versatile choice for replacements.

With standard radial clearance and ABEC-1 rating, it’s suitable for industrial machinery and automotive applications where reliability is key. Compliant with RoHS and REACH standards, it’s a safe and dependable option.

The cone width of 0.745″ and effective center location of -0.16″ ensure precise fit and performance in demanding conditions. Ideal for heavy-duty use where combined loads are common.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 26118
  • Brand TFL
  • Interchangeable Brand Timken
  • System of Measurement Inch
  • Type Cones
  • Bearing Part Number 26118-26274 , 26118-26283 , 26118-26300 , 26118-26334 , 26118-S-26283-S , 26118-26283-B , 26118-S-26283-B
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Series 26000
  • Bore Dia 1.1806"
  • Bore Dia Tolerance +0.005" to 0
  • Cone Width 0.745"
  • Cone Width Tolerance +0.003" to -0.01
  • Cone Backface ToClear Radius 0.06"
  • Cone Frontface Backing Diameter 1.42"
  • Cone Backface Backing Diameter 1.5"
  • Cage Cone Frontface Clearance 0.09"
  • Cage Cone Backface Clearance 0"
  • Effective Center Location -0.16"
  • Ring Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 15700 lbf
  • Static Radial Load 13500 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 4060 lbf
  • Dynamic Radial Rating(Two Row 1 Million Revolutions)(C1) 27300 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 2500 lbf
  • Dynamic Radial Rating(Two Row 90 Million Revolutions)(C90) 7070 lbf
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant

Features

How Is 26118 Bearing Engineered for Reliability?

26118 Bearing is crafted from chrome steel, ensuring durability under combined loads.
Its tapered roller design efficiently handles both radial and thrust forces for versatile use.

The steel cage maintains proper roller alignment, reducing friction and wear.
With a dynamic radial load capacity of 15,700 lbf, it performs reliably in demanding conditions.

26118 Bearing operates smoothly within a temperature range of -30° to 110°C.
Its standard radial clearance options (C3/C4/C5) allow flexibility for different applications.

Application

Industrial Uses of 26118 Single Cones
26118 Single Cones are commonly used in heavy machinery like construction equipment and mining tools, where their tapered roller design handles combined loads efficiently. The open seal type allows for easy lubrication, extending service life in demanding conditions.

What Makes 26118 Single Cones a Preferred Choice?
In automotive applications, 26118 Single Cones support wheel hubs and differential systems, providing reliable performance under radial and thrust loads. Their inch sizing makes them compatible with a variety of North American vehicle models.

Built for Heavy-Duty Use: 26118 Single Cones
For industrial conveyor systems, 26118 Single Cones offer durability and stability, ensuring smooth operation even under continuous load. The chrome steel construction enhances wear resistance, making them suitable for high-use environments.

Automotive vs Aerospace: Applications of 26118 Single Cones
While 26118 Single Cones excel in automotive wheel assemblies, they also find use in aerospace landing gear systems, where precision and reliability are critical. Their ABEC-1 rating ensures consistent performance across different industries.

Where Is 26118 Single Cones Used?
In agricultural machinery, 26118 Single Cones are often found in gearboxes and PTO shafts, where their robust design handles high torque and variable loads. The steel cage adds strength, making them ideal for rugged applications.
