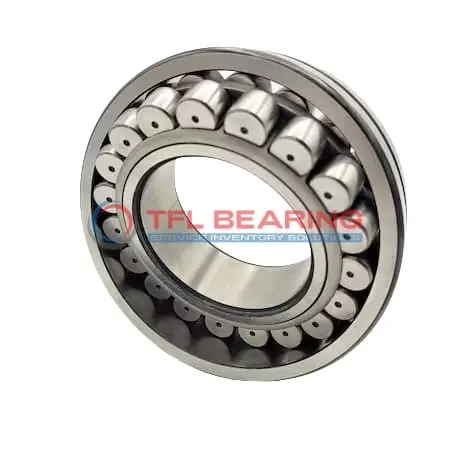

22213 E CJ W33 Double Row Spherical Roller Bearing

22213 E CJ W33 Double Row Spherical Roller Bearing

The 22213 E CJ W33 is a double-row spherical roller bearing with a 65mm bore and 120mm outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 44512 lbf and operates smoothly at speeds reaching 7000 RPM.

Its spherical roller design accommodates misalignment, while the steel cage ensures durability. The open construction allows for easy lubrication, with grooves and holes designed for efficient maintenance.

This bearing suits high-load applications like industrial gearboxes or heavy machinery, where reliability is key. It performs well in temperatures from -30°C to 200°C.

Weighing 1.55kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s a dependable choice for replacements, interchangeable with SKF models.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 22213 E CJ W33
  • Brand TFL
  • Interchangeable SKF
  • Size 65 x 120 x 31 mm
  • Bore Dia 65 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 120 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 31 mm
  • Width Tolerance -0.06mm to 0
  • Shoulder Dia Of Inner Ring 80.1 mm
  • Shoulder/Recess Dia Of Outer Ring 106 mm
  • Width Of Lubrication Groove 6 mm
  • Diameter Of Lubrication Hole 3 mm
  • Chamfer Dimension min.1.5 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 44512 lbf
  • Static Radial Load 48559 lbf
  • Max Speed 7000 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance CN
  • RoHs Compliant
  • REACH Compliant
  • Weight 1.55 kg
  • Price （US$） 36.54

Features

Performance Features of 22213 E CJ W33 Bearing

22213 E CJ W33 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 44512 lbf, ensuring reliable performance in heavy-duty applications.

The double-row spherical roller design allows for slight misalignment, reducing stress on the bearing.
With a maximum speed of 7000 rpm, it maintains efficiency even under demanding conditions.

22213 E CJ W33 Bearing operates in temperatures from -30° to 200°C, suitable for varied environments.
The lubrication groove and holes ensure consistent performance, extending its service life.

Application

Industrial Uses of 22213 E CJ W33 Bearing
22213 E CJ W33 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles high radial loads with ease. The spherical roller construction also accommodates slight misalignments, making it ideal for rugged environments.

In automotive applications, 22213 E CJ W33 Bearing supports components such as truck axles and transmissions, providing reliable performance under combined loads. Its chrome steel rollers ensure durability even in demanding driving conditions.

For wind turbines, 22213 E CJ W33 Bearing’s ability to withstand high speeds and variable loads makes it a trusted choice. The built-in lubrication groove extends service life, reducing maintenance needs in remote installations.

Where Is 22213 E CJ W33 Bearing Used?
You’ll often find 22213 E CJ W33 Bearing in conveyor systems, where its robust construction handles continuous operation without faltering. The open seal design allows for easy re-lubrication, keeping things running smoothly.

In mining equipment, 22213 E CJ W33 Bearing excels due to its high static radial load capacity. The steel cage adds extra strength, making it suitable for heavy, abrasive conditions.

Built for Heavy-Duty Use: 22213 E CJ W33 Bearing
22213 E CJ W33 Bearing is a go-to for industrial gearboxes, where its combined load capability ensures stable performance. The wide temperature range also makes it adaptable to various operating conditions.

In paper mill machinery, 22213 E CJ W33 Bearing’s spherical rollers reduce friction, enhancing efficiency. The metric sizing ensures compatibility with standard European equipment designs.

Automotive vs Aerospace: Applications of 22213 E CJ W33 Bearing
In automotive settings, 22213 E CJ W33 Bearing supports heavy axles and drivetrains, offering long-lasting reliability. Its high dynamic load rating makes it a favourite for commercial vehicles.

While less common in aerospace, 22213 E CJ W33 Bearing can be found in ground support equipment. The precision engineering ensures smooth operation even under frequent load changes.
