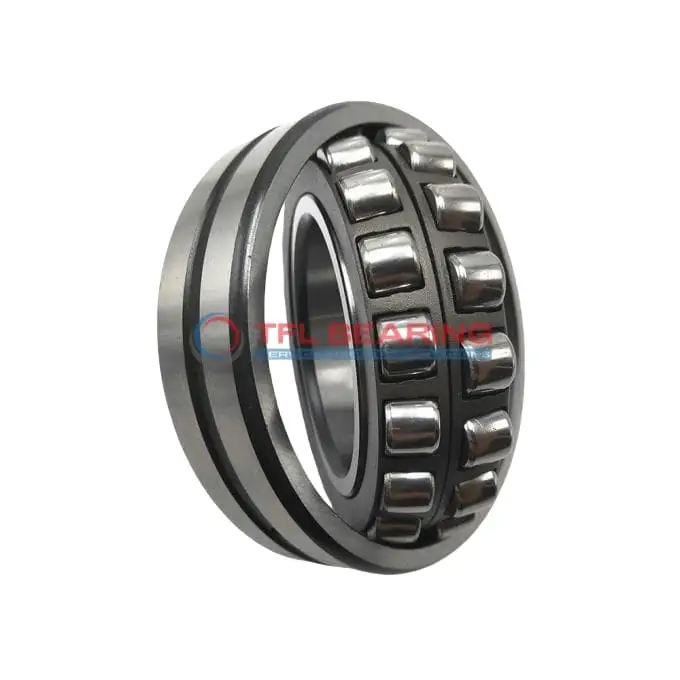

22213 CKY Double Row Spherical Roller Bearing

The 22213 CKY is a double-row spherical roller bearing with a 65mm bore and 120mm outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 44512 lbf and runs smoothly at speeds up to 7000 RPM.

Its brass cage and open design ensure durability and easy lubrication, with a temperature range from -30°C to 200°C. The tapered bore (1:12) allows for secure fitting, while the spherical rollers handle misalignment well.

This bearing is interchangeable with SKF models, making it a practical choice for replacements. Ideal for heavy-duty applications like industrial gearboxes or mining equipment where high radial loads are common.

Weighing 1.55kg, it’s built to last and complies with RoHS and REACH standards. The lubrication groove and holes simplify maintenance, keeping it running smoothly.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number 22213 CKY
Brand TFL
Interchangeable SKF
Size 65 x 120 x 31 mm
Bore Dia 65 mm
Bore Dia Tolerance +0.03mm to 0
Outer Dia 120 mm
Outer Dia Tolerance -0.015mm to 0
Width 31 mm
Width Tolerance -0.06mm to 0
Shoulder Dia Of Inner Ring 80.1 mm
Shoulder/Recess Dia Of Outer Ring 106 mm
Width Of Lubrication Groove 6 mm
Diameter Of Lubrication Hole 3 mm
Chamfer Dimension min.1.5 mm
System of Measurement Metric
Radial run-out Standard
Bearing Type Roller
Roller Bearing Type Spherical
Bore Type Taper 1:12
For Load Direction Combined
Construction Double Row
Seal Type Open
Ring Material Chrome Steel
Roller Material Chrome Steel
Cage Material Brass
Dynamic Radial Load 44512 lbf
Static Radial Load 48559 lbf
Max Speed 7000 rpm
Lubrication Required
Temperature Range -30° to 200 °C
Radial Clearance CN
RoHs Compliant
REACH Compliant
Weight 1.55 kg
Price （US$） 37.44

Features

Performance Features of 22213 CKY Bearing

22213 CKY Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 44512 lbf, ensuring reliable performance in heavy-duty applications.

The brass cage maintains roller alignment, reducing friction and extending operational life.
With a maximum speed of 7000 rpm, it delivers both durability and efficiency.

22213 CKY Bearing operates in temperatures from -30° to 200°C, suitable for varied environments.
Its tapered bore design simplifies installation, making it a practical choice for industrial use.

Application

Industrial Uses of 22213 CKY Bearing
22213 CKY Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row spherical design handles misalignment and heavy radial loads. The brass cage ensures smooth operation even under high stress and vibration.

Where Is 22213 CKY Bearing Used?
You’ll often find 22213 CKY Bearing in conveyor systems and industrial fans, thanks to its ability to manage combined loads and high speeds. Its tapered bore also makes installation and alignment simpler in these demanding environments.

Built for Heavy-Duty Use: 22213 CKY Bearing
22213 CKY Bearing excels in mining equipment, where its chrome steel construction withstands harsh conditions. The lubrication groove design helps maintain performance, even in dusty or high-temperature settings.

Automotive vs Aerospace: Applications of 22213 CKY Bearing
In automotive applications, 22213 CKY Bearing supports drivetrain components, offering durability under varying loads. For aerospace, its precision and temperature tolerance make it suitable for auxiliary systems requiring reliable performance.

Perfect Fit for Automation: 22213 CKY Bearing
22213 CKY Bearing is ideal for robotic arms and automated assembly lines, where its spherical rollers accommodate slight misalignments. The open design allows for easy lubrication, ensuring long service life in continuous operation.
