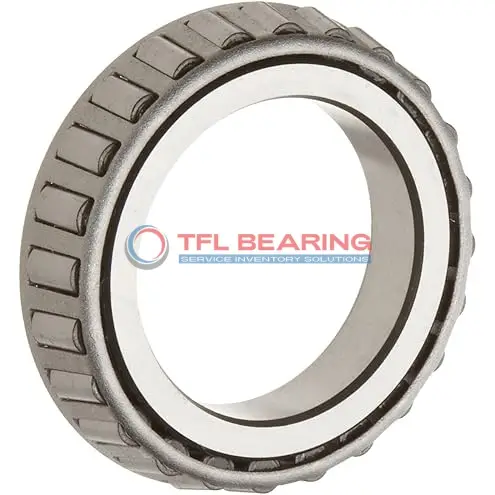

M235146 Single Cones (Imperial)

M235146 Single Cones (Imperial)

The M235146 is a single-row tapered roller bearing cone with a 6.625-inch bore, designed for combined loads. Made from durable chrome steel, it handles dynamic radial loads up to 98,500 lbf and static loads up to 166,000 lbf.

Its open design allows easy maintenance, while the steel cage ensures reliable performance. The cone has an effective center location of -0.18 inches, providing stability under load.

This model is interchangeable with Timken bearings, making it a practical choice for replacements. It works well in temperatures from -30°C to 110°C and is compliant with RoHS and REACH standards.

Ideal for heavy-duty applications like industrial machinery or vehicle axles where combined loads are common. The standard radial clearance is available in C3, C4, or C5 options for different operational needs.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number M235146
  • Brand TFL
  • Interchangeable Brand Timken
  • System of Measurement Inch
  • Type Cones
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Series M235100
  • Bore Dia 6.625"
  • Bore Dia Tolerance +0.001" to 0
  • Cone Width 1.8125"
  • Cone Width Tolerance +0.003" to -0.01
  • Cone Backface ToClear Radius 0.19"
  • Cone Frontface Backing Diameter 7.05"
  • Cone Backface Backing Diameter 7.28"
  • Cage Cone Frontface Clearance 0.13"
  • Cage Cone Backface Clearance 0.19"
  • Effective Center Location -0.18"
  • Ring Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 98500 lbf
  • Static Radial Load 166000 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 25500 lbf
  • Dynamic Radial Rating(Two Row 1 Million Revolutions)(C1) 172000 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 13900 lbf
  • Dynamic Radial Rating(Two Row 90 Million Revolutions)(C90) 44500 lbf
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant

Features

How Is M235146 Bearing Engineered for Reliability?

M235146 Bearing is crafted from chrome steel, offering excellent resistance to wear and tear.
Its tapered roller design efficiently handles combined loads, making it versatile for various applications.

The steel cage ensures proper roller alignment, enhancing stability and reducing friction.
With a dynamic radial load capacity of 98,500 lbf, it performs reliably under heavy-duty conditions.

M235146 Bearing operates smoothly within a temperature range of -30° to 110°C.
Its standard radial clearance options provide flexibility for different operational needs.

Application

Industrial Uses of M235146 Bearing
M235146 Bearing is commonly used in heavy machinery like mining equipment and construction vehicles, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability even in demanding environments.

Where Is M235146 Bearing Used?
You’ll often find M235146 Bearing in industrial gearboxes and large conveyor systems, thanks to its high dynamic radial load capacity. Its inch sizing makes it a go-to choice for machinery requiring imperial measurements.

Built for Heavy-Duty Use: M235146 Bearing
M235146 Bearing excels in applications like agricultural machinery and railroad axles, where reliability under heavy loads is key. The steel cage adds extra strength, making it suitable for long-term use.

Automotive vs Aerospace: Applications of M235146 Bearing
In automotive systems, M235146 Bearing supports wheel hubs and drivetrains, while in aerospace, it’s used in landing gear assemblies. Its temperature range and load capacity make it versatile across industries.

Key Fields for M235146 Bearing
M235146 Bearing is ideal for wind turbine systems and marine propulsion units, where its tapered rollers manage radial and thrust loads efficiently. The standard radial clearance ensures smooth operation in varied conditions.
