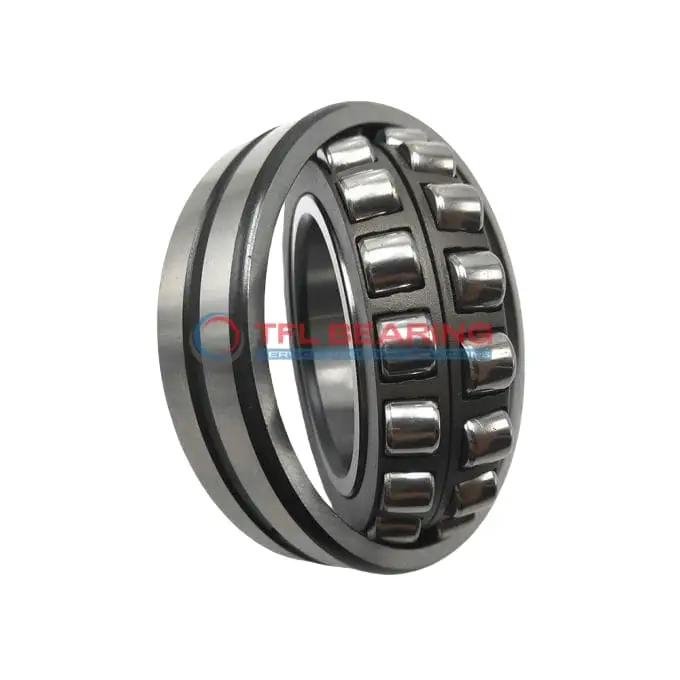

22213 CJ W33 Double Row Spherical Roller Bearing

22213 CJ W33 Double Row Spherical Roller Bearing

The 22213 CJ W33 is a double-row spherical roller bearing with a 65mm bore and 120mm outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 44512 lbf and operates smoothly at speeds up to 7000 RPM.
Its spherical roller design allows for slight misalignment, while the steel cage ensures durability. The open construction simplifies lubrication, with grooves and holes for easy maintenance.
This bearing suits high-load applications like industrial gearboxes or heavy machinery, where reliability is key. It performs well in temperatures from -30°C to 200°C.
Weighing 1.55kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s a dependable choice for replacements, interchangeable with SKF models.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 22213 CJ W33
  • Brand TFL
  • Interchangeable SKF
  • Size 65 x 120 x 31 mm
  • Bore Dia 65 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 120 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 31 mm
  • Width Tolerance -0.06mm to 0
  • Shoulder Dia Of Inner Ring 80.1 mm
  • Shoulder/Recess Dia Of Outer Ring 106 mm
  • Width Of Lubrication Groove 6 mm
  • Diameter Of Lubrication Hole 3 mm
  • Chamfer Dimension min.1.5 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 44512 lbf
  • Static Radial Load 48559 lbf
  • Max Speed 7000 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance CN
  • RoHs Compliant
  • REACH Compliant
  • Weight 1.55 kg
  • Price （US$） 37.44

Features

Performance Features of 22213 CJ W33 Bearing

22213 CJ W33 Bearing is built with chrome steel rings and rollers, offering high resistance to combined loads.
Its dynamic radial load capacity reaches 44512 lbf, ensuring reliable operation under heavy stress.

The double-row spherical roller design allows for slight misalignment, reducing wear and tear.
With a maximum speed of 7000 rpm, it maintains efficiency in high-performance applications.

22213 CJ W33 Bearing operates in temperatures from -30° to 200°C, suitable for varied environments.
The lubrication groove and holes ensure consistent performance, even under demanding conditions.

Application

Industrial Uses of 22213 CJ W33 Bearing
The 22213 CJ W33 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles both radial and axial loads efficiently. Its chrome steel construction ensures durability in demanding industrial environments.

Where Is 22213 CJ W33 Bearing Used?
You’ll often find the 22213 CJ W33 Bearing in conveyor systems and gearboxes, where its spherical roller design accommodates misalignment. The lubrication groove and hole make maintenance straightforward, even in high-speed applications.

Built for Heavy-Duty Use: 22213 CJ W33 Bearing
The 22213 CJ W33 Bearing excels in mining equipment, thanks to its robust steel cage and high load capacity. Its temperature range of -30° to 200°C makes it suitable for extreme working conditions.

Automotive vs Aerospace: Applications of 22213 CJ W33 Bearing
In automotive applications, the 22213 CJ W33 Bearing supports drivetrain components, while in aerospace, it’s used in auxiliary systems. Its metric sizing ensures compatibility across various industries.

Perfect Fit for Automation: 22213 CJ W33 Bearing
The 22213 CJ W33 Bearing is ideal for robotic arms and automated assembly lines, where precision and reliability are key. Its open design allows for easy lubrication, reducing downtime.
