43112-43319D TDO (Two-Row Double-Outer Race) (Imperial)

Brand: TFL Bearing 1.125" x 3.1875" x 0.9478" Inch Open
Part number: 43112-43319D
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia1.125"
Bore Dia Tolerance+0.005" to 0
Outer Dia3.1875"
Outer Dia Tolerance+0.001" to 0
Double Cup Width1.5625"
Double Cup Width Tolerance+0.003" to -0.01
Cone Width0.9478"
Cone Width Tolerance+0.002" to -0.01
Bearing Width Across Cups2.1875"
Bearing Width Across Cups Tolerance+0.008" to 0
Cone Backface Backing Diameter1.67"
Cup Frontface Backing Diameter2.94"
Performance
Dynamic Radial Load36,000 lbf
Dynamic Radial Rating(One Row 90 Million Revolutions)5,360 lbf
Dynamic Thrust Rating(90 Million Revolutions)6,130 lbf
Dynamic Radial Rating(Two Row 90 Million Revolutions)9,340 lbf
Temperature Range-30° to 110 °C
Characteristics
Cup Backface ToClear Radius0.06"
Cage Cone Backface Clearance0.1"
System of MeasurementInch
TypeBearing
Cone Part Number43112
Cup Part Number43319D
Bearing TypeRoller
Roller Bearing TypeTapered
For Load DirectionCombined
ConstructionDouble Row
Seal TypeOpen
Cups TypeStandard
Series43000
LubricationRequired
ABEC RatingABEC-1
Radial ClearanceStandard (Available in C3/C4/C5)
Weight2.940 lb
Material
Ring MaterialChrome Steel
Roller MaterialChrome Steel
Cage MaterialSteel
Compliance
RoHSCompliant
REACHCompliant

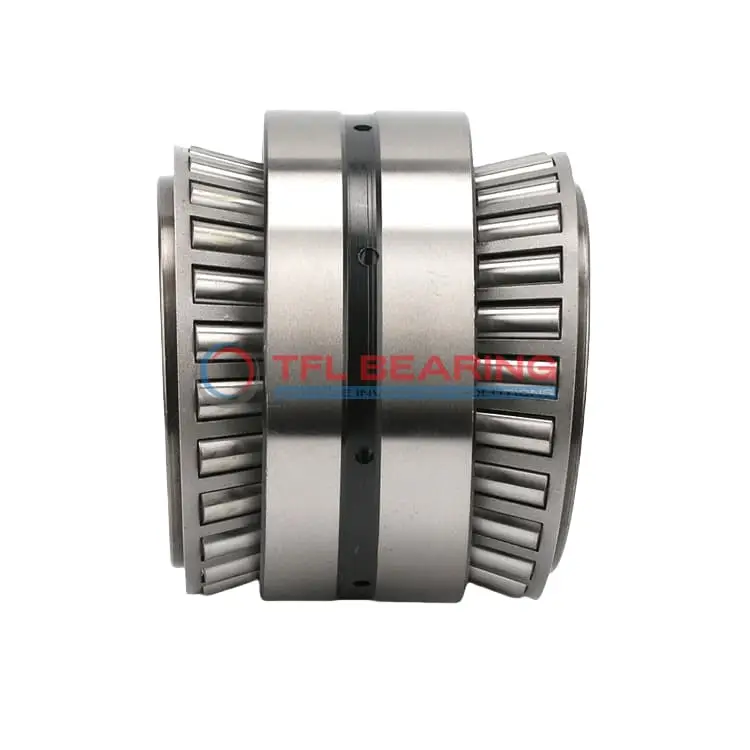

Product photo
43112-43319D TDO (Two-Row Double-Outer Race) (Imperial)

Description

The 43112-43319D is a two-row tapered roller bearing with a 1.125″ bore and 3.1875″ outer diameter, crafted from durable chrome steel. It handles combined loads up to 36000 lbf and is designed for long-lasting performance.

Its double-row construction provides stability under heavy radial and thrust loads, while the open design allows for easy lubrication. The steel cage ensures smooth operation even at high speeds.

This bearing fits well in industrial settings like gearboxes or heavy machinery where combined loads are common. It operates reliably in temperatures from -30°C to 110°C.

Weighing 2.94 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s a practical choice for replacements or new installations.

Features

How Is 43112-43319D Bearing Engineered for Reliability?

43112-43319D Bearing features a double-row tapered roller design, providing robust support for combined radial and thrust loads.
Its chrome steel construction ensures durability and resistance to wear in demanding applications.
The dynamic radial load capacity reaches 36,000 lbf, making it suitable for heavy-duty operations.
With a standard radial clearance and ABEC-1 rating, it balances precision and performance.

What Makes 43112-43319D Bearing Suitable for High-Temperature Applications?

43112-43319D Bearing operates efficiently in temperatures ranging from -30° to 110 °C, maintaining performance under varying conditions.
The chrome steel rollers and rings enhance heat resistance, ensuring long-term reliability.
Its open design allows for effective lubrication, reducing friction and heat buildup.
This makes it ideal for applications where temperature fluctuations are common.

Designed for Durability: 43112-43319D Bearing

43112-43319D Bearing is built with high-quality chrome steel, offering excellent strength and wear resistance.
The double-row tapered roller design distributes loads evenly, extending the bearing’s service life.
Its standard radial clearance ensures smooth operation, even under heavy loads.
With a weight of 2.940 lb, it provides a sturdy yet manageable solution for industrial use.

Application

Industrial Uses of 43112-43319D Bearing
The 43112-43319D Bearing is commonly used in heavy machinery, such as construction equipment and mining tools, where its double-row design handles combined radial and thrust loads effectively.
Its chrome steel construction ensures durability in demanding environments, making it a reliable choice for long-term use.

What Makes 43112-43319D Bearing a Preferred Choice?
In automotive applications, 43112-43319D Bearing supports wheel hubs and drivetrains, providing smooth performance under high stress.
The inch sizing makes it compatible with many North American vehicle models, offering versatility for repairs and upgrades.

Built for Heavy-Duty Use: 43112-43319D Bearing
For industrial fans and pumps, 43112-43319D Bearing’s tapered roller design ensures stable operation even at high speeds.
The open seal type allows for easy lubrication, extending the bearing’s service life in continuous-use scenarios.

Automotive vs Aerospace: Applications of 43112-43319D Bearing
In automotive systems, 43112-43319D Bearing excels in transmissions and axles, where its combined load capacity is essential.
While not typically used in aerospace, its robust design makes it suitable for ground support equipment and heavy-duty transport vehicles.

Key Fields for 43112-43319D Bearing
Agricultural machinery benefits from 43112-43319D Bearing’s ability to withstand dirt and debris while maintaining performance.
The standard radial clearance option ensures compatibility with a wide range of equipment, reducing downtime for maintenance.
