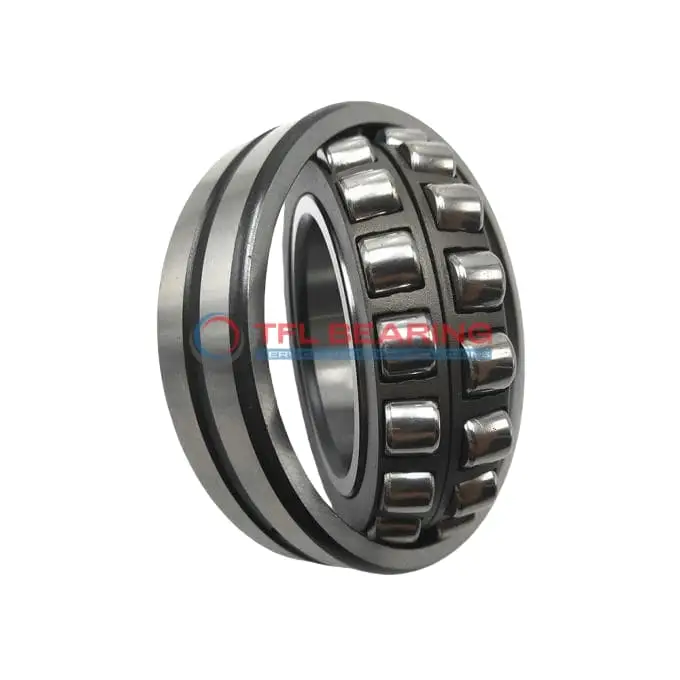

22213 CJ W33 C3 Double Row Spherical Roller Bearing

22213 CJ W33 C3 Double Row Spherical Roller Bearing

The 22213 CJ W33 C3 is a double-row spherical roller bearing with a 65mm bore and 120mm outer diameter, crafted from durable chrome steel. It handles combined loads up to 44512 lbf and operates smoothly at speeds up to 7000 RPM.

Its spherical roller design accommodates misalignment, while the steel cage ensures reliable performance under heavy loads. The lubrication groove and holes make maintenance straightforward.

This bearing is suitable for temperatures from -30°C to 200°C and comes with C3 radial clearance for flexibility in fitting. It’s interchangeable with SKF models, ideal for industrial machinery or heavy equipment.

Weighing 1.55kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s a dependable choice for demanding applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 22213 CJ W33 C3
  • Brand TFL
  • Interchangeable SKF
  • Size 65 x 120 x 31 mm
  • Bore Dia 65 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 120 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 31 mm
  • Width Tolerance -0.06mm to 0
  • Shoulder Dia Of Inner Ring 80.1 mm
  • Shoulder/Recess Dia Of Outer Ring 106 mm
  • Width Of Lubrication Groove 6 mm
  • Diameter Of Lubrication Hole 3 mm
  • Chamfer Dimension min.1.5 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 44512 lbf
  • Static Radial Load 48559 lbf
  • Max Speed 7000 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance C3
  • RoHs Compliant
  • REACH Compliant
  • Weight 1.55 kg
  • Price （US$） 36.54

Features

Performance Features of 22213 CJ W33 C3 Bearing

22213 CJ W33 C3 Bearing is built with chrome steel rings and rollers, offering high resistance to combined loads.
Its dynamic radial load capacity reaches 44512 lbf, ensuring robust performance in heavy-duty applications.

The double-row spherical roller design allows for slight misalignment, reducing stress on the bearing.
This feature enhances durability and extends the service life even under challenging conditions.

With a maximum speed of 7000 rpm, 22213 CJ W33 C3 Bearing balances speed and load capacity effectively.
The C3 radial clearance provides optimal performance in varying temperature ranges from -30° to 200°C.

The lubrication groove and holes in 22213 CJ W33 C3 Bearing ensure consistent grease distribution.
This design reduces friction and maintenance needs, making it a reliable choice for industrial use.

Application

Industrial Uses of 22213 CJ W33 C3 Bearing
22213 CJ W33 C3 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles both radial and axial loads efficiently.
The spherical roller construction also compensates for misalignment, making it reliable in demanding industrial environments.

What Makes 22213 CJ W33 C3 Bearing a Preferred Choice?
In automotive applications, 22213 CJ W33 C3 Bearing supports components like differential systems, thanks to its high load capacity and durability.
The C3 radial clearance ensures smooth operation even under varying temperatures and loads.

Built for Heavy-Duty Use: 22213 CJ W33 C3 Bearing
For mining equipment, 22213 CJ W33 C3 Bearing excels in conveyor systems, where its chrome steel construction resists wear and tear.
The lubrication groove design also extends service life, reducing maintenance needs in harsh conditions.

Automotive vs Aerospace: Applications of 22213 CJ W33 C3 Bearing
In automotive gearboxes, 22213 CJ W33 C3 Bearing provides reliable performance under high loads and speeds.
While not typically used in aerospace, its robustness makes it suitable for ground support equipment and heavy-duty transport.

Key Fields for 22213 CJ W33 C3 Bearing
22213 CJ W33 C3 Bearing is ideal for wind turbines, where its ability to handle misalignment and heavy loads ensures long-term reliability.
The temperature range of -30° to 200°C also makes it adaptable to various climatic conditions.
