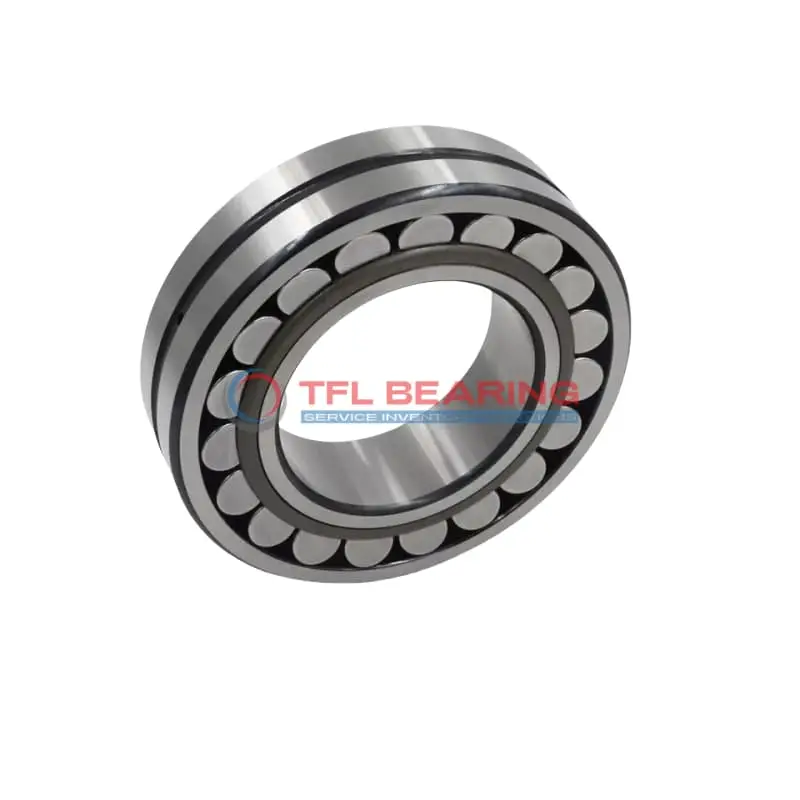

22212C Double Row Spherical Roller Bearing

22212C Double Row Spherical Roller Bearing

The 22212C is a double-row spherical roller bearing with a 60mm bore and 110mm outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 35745 lbf and operates smoothly at speeds up to 7500 RPM.

Its open design allows for easy lubrication, while the steel cage ensures durability. The bearing performs reliably in temperatures ranging from -30°C to 200°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for heavy-duty applications like industrial gearboxes or mining equipment where high radial loads are common.

Weighing 1.15kg, it offers a robust yet manageable solution for demanding environments. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 22212C
  • Brand TFL
  • Interchangeable SKF
  • Size 60 x 110 x 28 mm
  • Bore Dia 60 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 110 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 28 mm
  • Width Tolerance -0.06mm to 0
  • Shoulder Dia Of Inner Ring 72.7 mm
  • Shoulder/Recess Dia Of Outer Ring 96.5 mm
  • Width Of Lubrication Groove 6 mm
  • Diameter Of Lubrication Hole 3 mm
  • Chamfer Dimension min.1.5 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 35745 lbf
  • Static Radial Load 37318 lbf
  • Max Speed 7500 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance CN
  • RoHs Compliant
  • REACH Compliant
  • Weight 1.15 kg
  • Price （US$） 34.92

Features

Performance Features of 22212C Bearing

22212C Bearing is crafted with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 35745 lbf, ensuring reliable performance in heavy-duty applications.

The double-row spherical roller design allows for slight misalignment, reducing stress on the bearing.
With a maximum speed of 7500 rpm, it maintains efficiency even under demanding conditions.

22212C Bearing operates in temperatures from -30° to 200°C, making it suitable for varied environments.
The steel cage ensures proper roller alignment, enhancing durability and reducing maintenance needs.

Application

Industrial Uses of 22212C Bearing
22212C Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles both radial and axial loads efficiently. The spherical roller construction allows for slight misalignment, reducing wear in demanding conditions.

Where Is 22212C Bearing Used?
You’ll often find 22212C Bearing in conveyor systems and gearboxes, where its high dynamic load capacity ensures reliable performance. The open design simplifies lubrication, making it a practical choice for industrial maintenance.

Built for Heavy-Duty Use: 22212C Bearing
22212C Bearing excels in mining equipment, thanks to its robust chrome steel construction and ability to withstand high temperatures. The steel cage adds durability, making it suitable for long-term use in harsh environments.

Automotive vs Aerospace: Applications of 22212C Bearing
In automotive applications, 22212C Bearing supports drivetrain components, while in aerospace, it’s used in auxiliary systems due to its high-speed capability. The metric sizing ensures compatibility across various industries.

Practical Applications of 22212C Bearing
22212C Bearing is a go-to for wind turbine generators, where its combined load handling and temperature resistance are crucial. The lubrication groove design ensures smooth operation even under continuous use.
