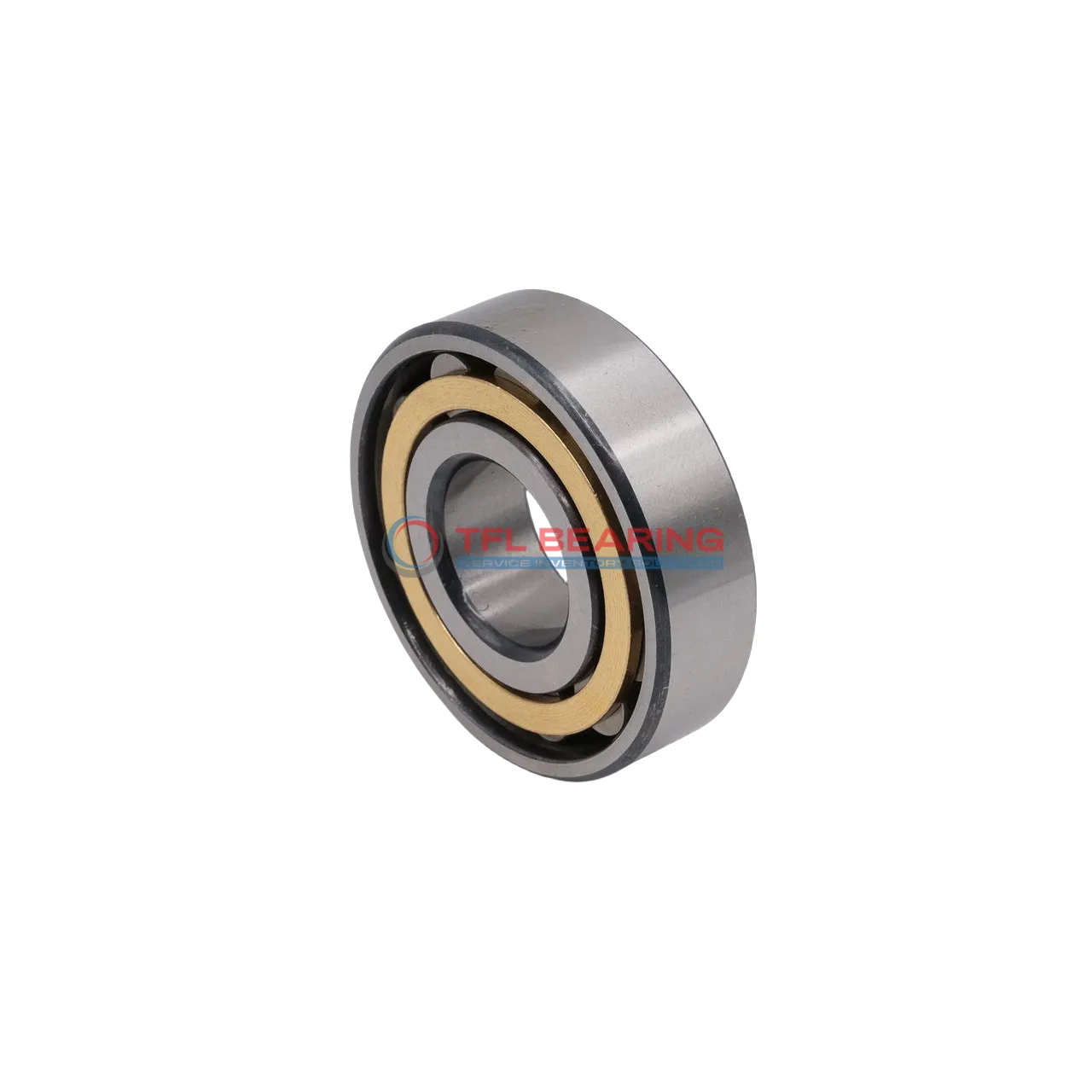

Single Row Cylindrical Roller Bearings With Inner Ring 315835 A

Single Row Cylindrical Roller Bearings With Inner Ring 315835 A

The 315835 A is a single row cylindrical roller bearing with a 530mm bore and 650mm outer diameter, crafted from sturdy chrome steel. It handles combined loads, supporting up to 94050 lbf dynamically and 202500 lbf statically.

Its brass cage keeps rollers centred for smooth operation, while the open design allows easy lubrication with grease or oil. The bearing works in temperatures from -30°C to 110°C, making it versatile for various conditions.

With a width of 45mm and chamfered edges, it fits snugly in heavy-duty setups. Ideal for industrial machinery like gearboxes or large motors where high radial loads are common.

Weighing 29.5kg, it’s built for durability. Compliant with RoHS and REACH standards, it’s a reliable choice for replacements, interchangeable with SKF models.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 315835 A
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 530 mm
  • Bore Dia Tolerance -0.05mm to 0
  • Outer Dia 650 mm
  • Outer Dia Tolerance -0.075mm to 0
  • Width 45 mm
  • Width Tolerance -0.12mm to 0
  • Shoulder Dia Of Inner Ring 576 mm
  • Raceway Diameter Of Outer Ring(E) 615 mm
  • Chamfer Dimension r1,2(min.) 3 mm
  • Permissible Axial Displacement(max.) 4.3 mm
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • For Load Direction Combined
  • Construction Single Row
  • Inner Ring Type With Inner Ring
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Brass cage, roller centred
  • Dynamic Radial Load 94050 lbf
  • Static Radial Load 202500 lbf
  • Lubrication Grease, Oil
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 29.5 kg
Single Row Cylindrical Roller Bearings With Inner Ring 315835 A dimension drawing
Download DWG Download PDF

Features

Core Advantages of 315835 A Bearing

315835 A Bearing features a chrome steel construction, offering high resistance to wear and tear.
Its brass cage ensures proper roller alignment, enhancing performance under combined loads.

With a dynamic radial load capacity of 94,050 lbf, it handles heavy-duty applications with ease.
The open design allows for flexible lubrication options, including grease or oil.

315835 A Bearing operates efficiently within a temperature range of -30° to 110°C.
Its precise tolerances ensure reliable performance in various industrial settings.

The single-row cylindrical design provides excellent radial load capacity.
This makes 315835 A Bearing suitable for demanding machinery and equipment.

Application

Key Fields for 315835 A Bearing
315835 A Bearing is widely used in heavy industrial machinery, such as large gearboxes and rolling mills, where its robust design handles combined radial and axial loads effectively. The brass cage ensures smooth operation even under high-stress conditions.

In wind turbine applications, 315835 A Bearing provides reliable performance in the main shaft, thanks to its chrome steel construction and precise tolerances. Its large bore size makes it ideal for heavy rotating equipment.

For mining equipment, 315835 A Bearing excels in conveyor systems and crushers, where durability and load capacity are critical. The open seal design allows for easy lubrication, extending service life in harsh environments.

Automotive vs Aerospace: Applications of 315835 A Bearing
In automotive manufacturing, 315835 A Bearing supports large presses and assembly line machinery, offering stability under heavy loads. Its metric sizing ensures compatibility with European industrial standards.

Aerospace applications benefit from 315835 A Bearing’s precision in landing gear systems, where consistent performance is essential. The grease lubrication option reduces maintenance needs in high-altitude conditions.
