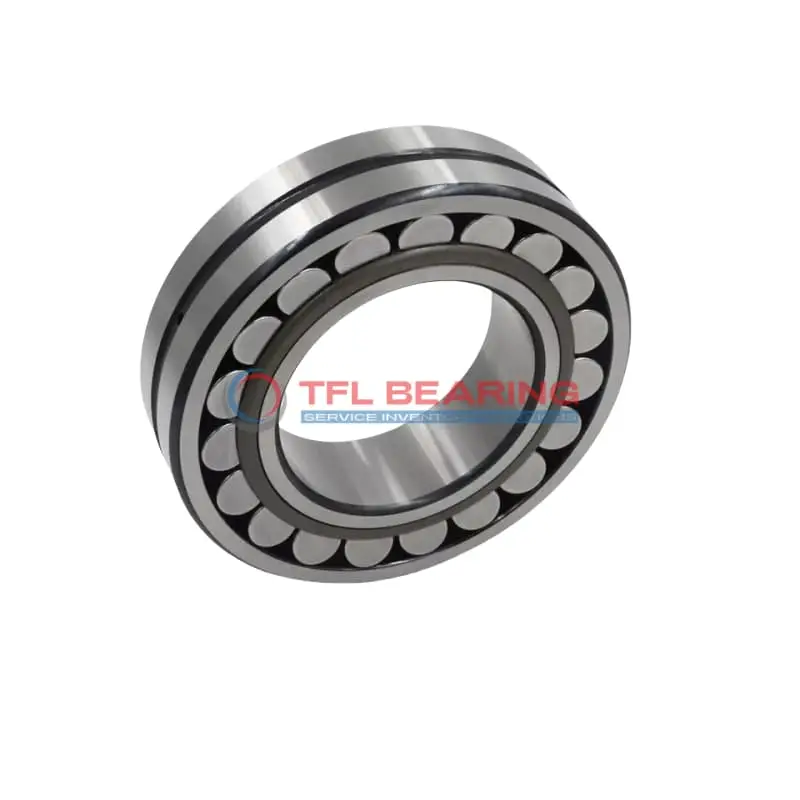

22212 CY Double Row Spherical Roller Bearing

22212 CY Double Row Spherical Roller Bearing

The 22212 CY is a double-row spherical roller bearing with a 60mm bore and 110mm outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 35745 lbf and spins smoothly at speeds up to 7500 RPM.

Its brass cage and open design ensure durability and easy lubrication, with a 3mm hole for convenient maintenance. The bearing operates well in temperatures from -30°C to 200°C.

This model is interchangeable with SKF bearings, making it a reliable replacement option. Ideal for heavy-duty applications like industrial gearboxes or mining equipment where high radial loads are common.

Weighing 1.15kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 22212 CY
  • Brand TFL
  • Interchangeable SKF
  • Size 60 x 110 x 28 mm
  • Bore Dia 60 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 110 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 28 mm
  • Width Tolerance -0.06mm to 0
  • Shoulder Dia Of Inner Ring 72.7 mm
  • Shoulder/Recess Dia Of Outer Ring 96.5 mm
  • Width Of Lubrication Groove 6 mm
  • Diameter Of Lubrication Hole 3 mm
  • Chamfer Dimension min.1.5 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 35745 lbf
  • Static Radial Load 37318 lbf
  • Max Speed 7500 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance CN
  • RoHs Compliant
  • REACH Compliant
  • Weight 1.15 kg
  • Price （US$） 34.92

Features

Performance Features of 22212 CY Bearing

22212 CY Bearing is built with chrome steel rings and rollers, offering high resistance to combined loads.
Its dynamic radial load capacity reaches 35745 lbf, making it suitable for heavy-duty applications.

The brass cage ensures smooth roller alignment, reducing friction and enhancing durability.
With a maximum speed of 7500 rpm, it delivers reliable performance under demanding conditions.

22212 CY Bearing operates efficiently in temperatures ranging from -30° to 200°C.
Its open design allows for easy lubrication, ensuring long service life with minimal maintenance.

Application

Industrial Uses of 22212 CY Bearing
The 22212 CY Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row spherical design handles misalignment and heavy radial loads.
Its brass cage and chrome steel rollers ensure durability in harsh environments, making it a reliable choice for mining and construction equipment.

Where Is 22212 CY Bearing Used?
You’ll often find the 22212 CY Bearing in industrial fans and pumps, where its high-speed capability and combined load handling are essential.
The open design allows for easy lubrication, extending its service life in demanding applications.

Built for Heavy-Duty Use: 22212 CY Bearing
The 22212 CY Bearing excels in paper mill machinery, where its spherical rollers accommodate shaft deflections under heavy loads.
With a temperature range up to 200°C, it’s also suitable for applications like kilns and dryers.

Automotive vs Aerospace: Applications of 22212 CY Bearing
In automotive systems, the 22212 CY Bearing supports gearboxes and drivetrains, offering stability under high radial loads.
For aerospace, its precision and durability make it useful in auxiliary equipment, though it’s more common in industrial settings.

Key Fields for 22212 CY Bearing
The 22212 CY Bearing is a go-to for wind turbine yaw systems, where its ability to handle misalignment and heavy loads is crucial.
Its metric sizing and compatibility with SKF models make it a versatile option for global machinery manufacturers.
