Heavy Duty Needle Roller Bearings (Machined) NK10/16-TV-XL

Heavy Duty Needle Roller Bearings (Machined) NK10/16-TV-XL

The NK10/16-TV-XL is a heavy-duty needle roller bearing with a 10mm bore and 17mm outer diameter, crafted from sturdy steel for reliable performance. It handles radial loads up to 1575 lbf and spins smoothly at speeds up to 29,500 RPM.
Its open design and PA66 cage make it lightweight yet durable, while the press-fit shaft mount ensures a secure installation. The bearing operates well in temperatures from -20°C to 110°C.
This model is interchangeable with INA bearings, offering a practical replacement option. Ideal for applications like gearboxes or small machinery where space is limited but high radial load capacity is needed.
Weighing just 13.3g, it’s compact and efficient. Compliant with RoHS standards for safe use. Regular lubrication is recommended for optimal performance.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number NK10/16-TV-XL
  • Brand TFL
  • Interchangeable brand INA
  • System of Measurement Metric
  • Bearing Type Roller
  • Roller Bearing Type Needle
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Inner Ring No
  • Series Without Inner Ring
  • Bore Dia 10 mm
  • Bore Dia Tolerance 0.013mm to 0.022mm
  • Outer Dia 17 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 16 mm
  • Width Tolerance -0.12mm to 0
  • Ring Material Steel
  • Cage Material PA66
  • Roller Material Steel
  • Dynamic Radial Load 1575 lbf
  • Static Radial Load 1755 lbf
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range -20 to 110 °C
  • RoHS Compliant
  • Max Speed 29500 rpm
  • Weight 13.3 g

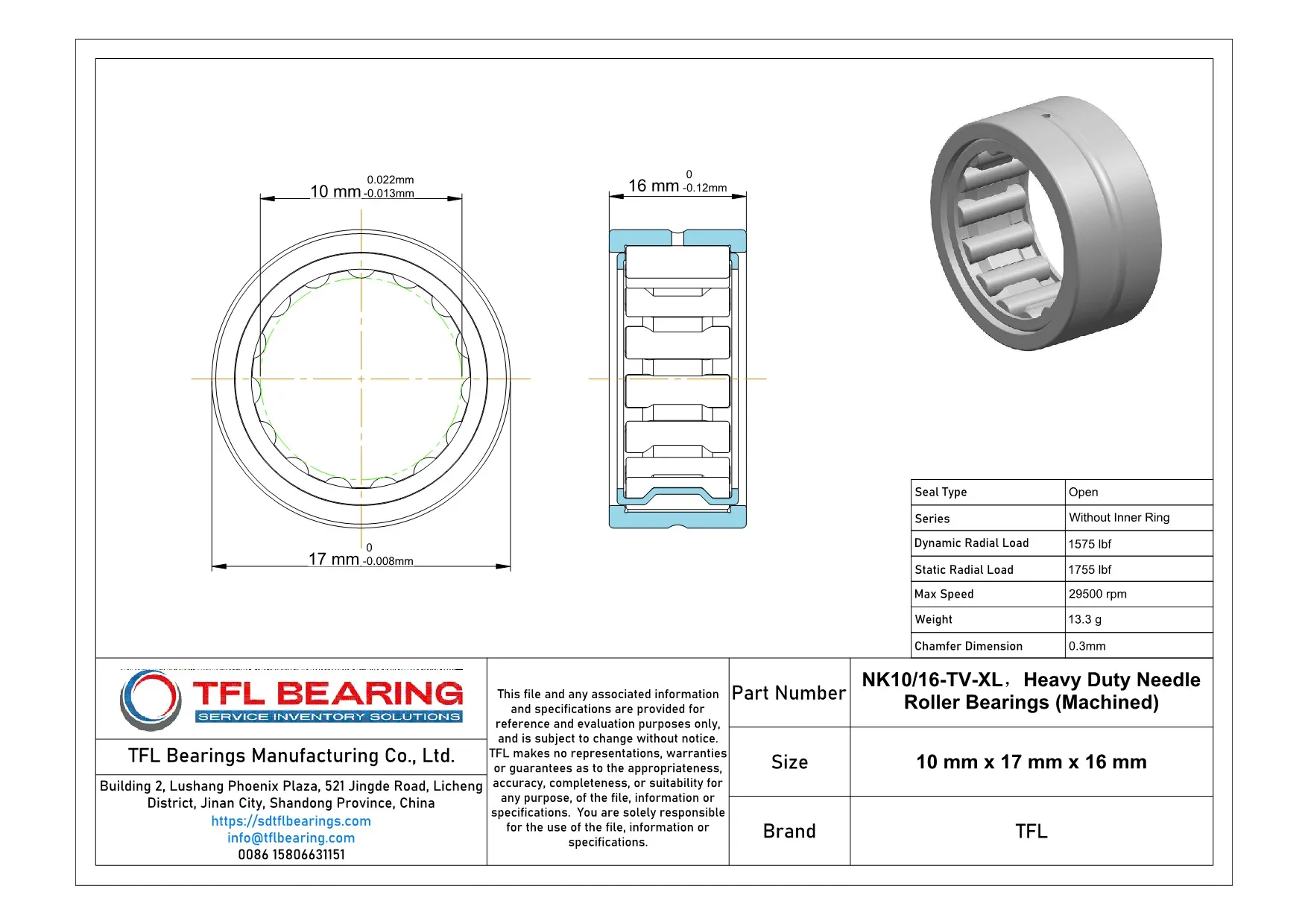

Heavy Duty Needle Roller Bearings (Machined) NK10/16-TV-XL dimension drawing
Download DWG Download PDF

Features

Performance Features of NK10/16-TV-XL Bearing
NK10/16-TV-XL Bearing is built for radial loads, with a dynamic radial load capacity of 1575 lbf.
Its steel rollers and PA66 cage ensure durability and smooth operation under stress.
The press-fit shaft mount design simplifies installation, saving time and effort.
With a maximum speed of 29,500 rpm, it delivers reliable performance in high-speed applications.

Application

Industrial Uses of NK10/16-TV-XL Bearing
NK10/16-TV-XL Bearing is commonly used in industrial machinery like printing presses and packaging equipment, where its compact design handles high radial loads efficiently. The steel construction ensures durability in demanding environments.
Where Is NK10/16-TV-XL Bearing Used?
In automotive applications, NK10/16-TV-XL Bearing fits well in gearboxes and steering systems, offering reliable performance under high-speed conditions. Its press-fit design simplifies installation in tight spaces.
Built for Heavy-Duty Use: NK10/16-TV-XL Bearing
For automation systems, NK10/16-TV-XL Bearing supports robotic arms and conveyor belts, where its high-speed capability and low weight improve operational efficiency. The open seal design allows for easy lubrication.
Light-Duty vs Heavy-Duty: Best Uses for NK10/16-TV-XL Bearing
In consumer electronics, NK10/16-TV-XL Bearing is found in small motors and power tools, providing smooth rotation with minimal maintenance. Its PA66 cage material reduces friction and noise.
